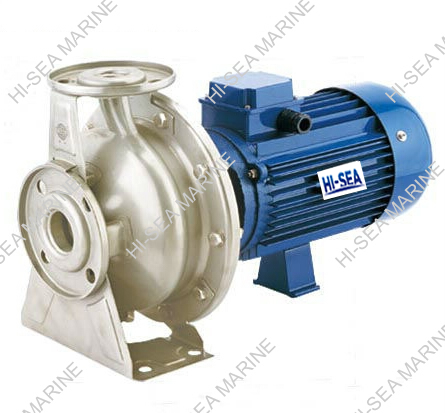

ICB Marine Pressing Centrifugal Pump

Applications:

This series of pumps for stainless steel centrifugal pump. The pump shaft and motor shaft for the same root, the so-called altogether shaft type. Applicable to ship water supply system, pressure boiler water supply, and the land use high purity water filtration systems, medicine, food, fine chemical, flush, sprinkler irrigation and so on water transportation. The pump simple structure, light weight, low power consumption, simple maintenance.


Model Explanation:


for example ICB(L)/ICBD65-50-160/4.0-4

ICB ! Type ICB close-coupled complete pump

ICBL ! Total shaft type import and export live joints connected the machine

ICBD ! Type ICBD stub-shaft centrifugal complete pump

65 ! Inlet diameter of 65 mm
50 ! Outlet diameter of 50 mm
160 ! Impeller nominal diameter of 160 mm

4.0 ! Motor power 4.0kW

4 ! 4 Pole; No Mark:2:2 Pole

Main Technical Parameter

Type

Impeller type

Capacity

(m3/h)

Head

(m)

Speed

(r/min)

Efficiency

(η%)

Motor Power (kw)

ICB ICB(D)

NPSHr

(m)

ICB20-12-125

0

1.6

20

2900

47

0.37

3.5

ICB20-12-160

0

1.6

30

2900

41

0.75


3.8

A

1.2

24

2900

40

0.55


3.5

ICB32-25-125

0

3.2

20

2900

45

0.75


3.8

ICB32-25-160

0

3.2

30

2900

40

1.1


2.0

A

2.5

24

2900

39

0.75


2.0

ICB50-25-125

0

6.3

20

2900

61

1.5

1.5

2.0

A

5

15

2900

60

1.1

1.1

ICB50-25-160

0

6.3

32

2900

57

2.2

3

2.0

A

5

25

2900

56

1.5

2.2

ICB50-25-200

0

6.3

50

2900

49

4

5.5

2.0

A

5

40

2900

48

3

4

ICB50-32-125

0

12.5

20

2900

63

1.5

2.2

2.0

A

10

15

2900

62

1.1

1.5

ICB50-32-125

0

12.5

32

2900

58

2.2

3

2.0

A

10

25

2900

57

1.5

2.2

ICB50-32-200

0

12.5

50

2900

50

4

5.5

2.0

A

10

40

2900

49

3

4

ICB65-50-125

0

25

20

2900

72

2.2

3

2.0

A

20

15

2900

71

1.5

2.2

ICB65-50-160

0

25

32

2900

70

4

5.5

2.0

A

20

25

2900

69

3

40

ICB65-40-200

0

25

50

2900

64

7.5

7.5

2.0

A

20

40

2900

63

5.5

7.5



Structure:


ICB Marine Pressing Centrifugal Pump


1 Casing

2 Impeller

3 Key

4 Impeller nut

5 Washer

6 Mechanical seal

7 Back cover

8 'O' Ring

9 Bolt

10 Nut

11 Washer

12 Front seal

13 Water proof ring

14 Motor


Photo:

ICB Marine Pressing Centrifugal Pump
