Applications:
RY Series Air-cooled Hot Oil Pump is the energy conservation production designed and manufactured on the standard GB5662.
With scientific construction and fine capacity, it is used in transporting high temperature liquid without solid particles. And the degree of corrosion resisting and working temperature is depended on the material of the main parts which connected with the medium. (The material consists of three kinds: 1.HT200; 2.ZG230-450; 3, 1Cr18N8-9Ti, OCr18N8912Mo2Ti).
Performance Scope of RY Series Air-cooled Hot Oil Pump
1¡¢Capacity : 1-500m3/h.
2¡¢Delivery lift : 10-125m.
3¡¢Temperature : -20¡æ~350¡æ.
The Sense of RY Series Air-cooled Hot Oil Pump
Set RY 100-65-200A As The Example
|
RY
|
100
|
65
|
200
|
A
|
Hot Oil Pump
|
The Inlet Diameter of Pump Case
|
The Outlet Diameter of Pump Case
|
Vane wheel's Nominal Diameter of Pump Case
|
The First Cutting of Outer Diameter of The Vane wheel
£¨D¡¢E Represents Shaper forming wheel£©
|
Performance Parameter
Model
|
Capacity
(m3/h)
|
Lift
(m)
|
Speed
(r/min)
|
Power (kw)
|
Efficiency
(¦Ç%)
|
Motor-Y
|
Shaft
power
|
Power
Distribution
|
15-15-100
|
3
|
10
|
2800
|
0.45
|
0.75
|
20
|
801
|
15-15-100A
|
2
|
10
|
2800
|
0.36
|
0.55
|
18
|
AO2-7122
|
15-15-100B
|
1
|
10
|
2800
|
0.2
|
0.37
|
15
|
AO2-7112
|
20-20-100
|
1
|
10
|
2800
|
0.09
|
0.37
|
26
|
AO2-7112
|
20-20-125
|
1.5
|
22
|
2800
|
0.22
|
0.75
|
30
|
801
|
40-25-160
|
10
|
28
|
2900
|
1.72
|
2.2
|
45
|
90L
|
25-25-160
|
3
|
27
|
2900
|
0.53
|
1.5
|
30
|
90S
|
32-32-160
|
6
|
28
|
2900
|
0.85
|
1.5
|
50
|
90S
|
50-32-160
|
12.5
|
30
|
2900
|
1.90
|
3.0
|
57
|
100L
|
50-32-200
|
18
|
40
|
2900
|
3.92
|
5.5
|
50
|
132Sl
|
50-32-200A
|
16
|
32
|
2900
|
3.35
|
4
|
42
|
112M
|
50-32-250
|
12.5
|
80
|
2900
|
6.2
|
11
|
44
|
160Ml
|
65-50-160
|
20
|
32
|
2900
|
3.17
|
5.5
|
55
|
132S1
|
65-40-200
|
30
|
48
|
2900
|
6.3
|
7.5
|
62
|
132S2
|
65-40-200A
|
25
|
35
|
2900
|
4.0
|
5.5
|
59
|
132S1
|
65-40-250
|
25
|
80
|
2900
|
10.3
|
15
|
53
|
160M2
|
65-40-250A
|
20
|
51
|
2900
|
5.67
|
7.5
|
49
|
132S2
|
65-40-315
|
25
|
125
|
2900
|
18.9
|
30
|
45
|
200L1
|
65-40-315A
|
22.5
|
100
|
2900
|
15.3
|
22
|
40
|
180M
|
80-50-200
|
50
|
50
|
2900
|
9.7
|
15
|
70
|
160M2
|
80-50-200A
|
45
|
40
|
2900
|
7.8
|
11
|
63
|
160M1
|
80-50-200B
|
40
|
32
|
2900
|
6.37
|
7.5
|
55
|
132S2
|
80-50-250
|
50
|
80
|
2900
|
17.1
|
22
|
58
|
180M
|
80-50-250A
|
43
|
60
|
2900
|
12.8
|
15
|
55
|
160M2
|
80-50-315
|
50
|
125
|
2900
|
30.4
|
45
|
56
|
225M
|
80-50-315A
|
45
|
100
|
2900
|
23.6
|
30
|
52
|
200L1
|
100-65-200
|
100
|
50
|
2900
|
18.4
|
22
|
74
|
180M
|
100-65-200A
|
94
|
44
|
2900
|
16
|
22
|
70
|
180M
|
100-65-200B
|
87
|
38
|
2900
|
13.8
|
15
|
65
|
160M2
|
100-65-200C
|
80
|
32
|
2900
|
11.8
|
15
|
59
|
160M2
|
100-65-250
|
100
|
80
|
2900
|
32.06
|
37
|
68
|
200L2
|
100-65-250A
|
95
|
72
|
2900
|
29
|
37
|
64
|
200L2
|
100-65-250B
|
90
|
65
|
2900
|
26.2
|
30
|
61
|
200L1
|
100-65-250C
|
85
|
50
|
2900
|
20.3
|
30
|
57
|
200L1
|
100-65-315
|
100
|
125
|
2900
|
50.06
|
75
|
68
|
280S
|
100-65-315A
|
95
|
113
|
2900
|
45.23
|
55
|
64
|
250M
|
100-65-315B
|
90
|
100
|
2900
|
40.5
|
55
|
60
|
250M
|
100-65-315C
|
82
|
84
|
2900
|
34.76
|
45
|
54
|
225M
|
125-100-200
|
200
|
50
|
2900
|
35.4
|
45
|
77
|
225M
|
125-100-200A
|
178
|
40
|
2900
|
26.6
|
37
|
73
|
200L2
|
125-100-250
|
200
|
70
|
2900
|
47
|
55
|
80
|
250M
|
125-100-250A
|
190
|
63
|
2900
|
41.6
|
55
|
78
|
250M
|
125-100-250B
|
180
|
57
|
2900
|
37.9
|
45
|
74
|
225M
|
125-100-250C
|
170
|
51
|
2900
|
32.15
|
45
|
72
|
225M
|
125-100-250D
|
150
|
70
|
2900
|
40
|
45
|
70
|
225M
|
150-150-200
|
350
|
50
|
2900
|
60
|
75
|
80
|
280S
|
150-150-200A
|
313
|
40
|
2900
|
45
|
55
|
76
|
250M
|
200-150-400
|
350
|
50
|
1450
|
61.8
|
75
|
78
|
280S
|
200-150-400A
|
330
|
45
|
1450
|
52.8
|
75
|
77
|
280S
|
250-200-400
|
500
|
50
|
1480
|
86.2
|
110
|
79
|
315S
|
250-200-500
|
500
|
80
|
1480
|
136
|
160
|
76.5
|
315M
|
250-200-500A
|
400
|
50
|
1480
|
75
|
90
|
73
|
280M
|
|

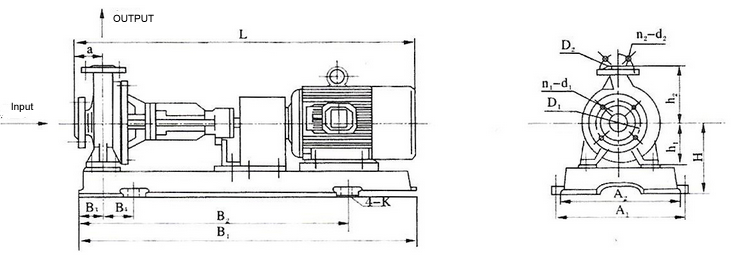

Structure:
