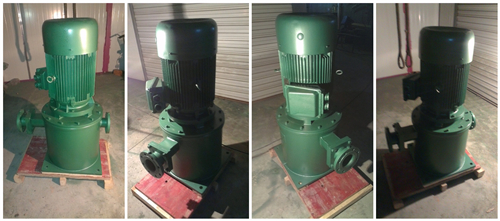

CLZ Marine Vertical Self-priming Centrifugal Pump
[Search Related Products]
Applications:
CLZ Series marine vertical self-priming centrifugal pump, has the advantages of small volume, light weight, good self-priming performance, convenient installation and operation, etc.. Applicable to all kinds of ships for bilge pump, ballast pump, fire pump, cooling pump and other equipment supporting the use of. Transmission medium temperature is not higher than 80¡æ.
Model Explanation:
for example 100CLZ-13A
100 ¡ª Inlet and outlet diameter100 mm
CLZ ¡ª Marine vertical self-priming centrifugal pump
12 ¡ª Specific speed divided by 10
A(B) ¡ª Impeller processed with 1£¨2£©time cutting
Main Technical Parameter
Series Name | CLZ |
Product Name | VerticalSelf-priming centrifugal pump |
Product Model | HS-CLZ01 |
Feature | Self-priming marine pumps of small volumn,low weight and high function, easily fixed and used. |
Capacity | 5-300 m3/h |
Head | 20-120 m |
Speed | 2900 /3450 r/min 1450/1725 r/min |
Motor power | 4-110 kw |
Application |
Suitable for cabin bottom to cool water and fight fire.and so on the bilge in all kinds of ships and warships |
Tempreture | Max.80¡æ |
Certification | CCS, BV ABS,NK,DNV etc |
Performance Parameter
1.
Performance and parameter table for the power supply frequency of 50Hz 3¦Õ 380V | ||||||||
Type |
(50Hz 3¦Õ 380V) Main technical parameter |
Motor type & power (kW) |
Weight (Kg) |
|||||
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
NPSHr (m) |
Shaft power (kW) |
||||
40CLZ-2 | 5 | 60 | 2900 | 3.5 | 3.9 | Y132S1-2H 5.5 | 170 | |
40CLZ-2A | 4 | 54 | 2900 | 3.5 | 3.2 | Y132S1-2H 5.5 | 170 | |
40CLZ-4Z | 5 | 32 | 2900 | 3.5 | 1.6 | Y90L-2H 2.2 | 126 | |
40CLZ-4AZ | 5 | 22 | 2900 | 3.5 | 1.2 | Y90S-2H 1.5 | 123 | |
50CLZ-4Z | 20 | 50 | 2900 | 3.2 | 6.1 | Y132S2-2H 7.5 | 175 | |
50CLZ-4AZ | 17 | 46 | 2900 | 3.2 | 5 | Y132S2-2H 7.5 | 175 | |
50CLZ-4.5Z | 12.5 | 32 | 2900 | 3.2 | 2.5 | Y112M-2H 4 | 155 | |
50CLZ-4.5AZ | 10 | 28 | 2900 | 3.2 | 1.8 | Y100L-2H 3 | 144 | |
50CLZ-6 | 20 | 32 | 2900 | 3.2 | 3.2 | Y112M-2H 4 | 162 | |
50CLZ-6S | ||||||||
50CLZ-6A | 17 | 28 | 2900 | 3.2 | 2.5 | Y112M-2H 4 | 162 | |
50CLZ-6AS | ||||||||
50CLZ-7AZ | 10 | 17 | 2900 | 3.5 | 1.2 | Y90L-2H 2.2 | 135 | |
50CLZ-9Z | 25 | 14.5 | 2900 | 3.5 | 1.7 | Y100L-2H 3 | 144 | |
65CLZ-4 | 35 | 70 | 2900 | 3.2 | 13.9 | Y160L-2H 18.5 | 438 | |
65CLZ-4A | 32 | 65 | 2900 | 3.2 | 12.1 | Y160M2-2H 15 | 413 | |
65CLZ-4B | 20 | 60 | 2900 | 3.5 | 9.2 | Y160M1-2H 11 | 398 | |
65CLZ-5.5 | 35 | 50 | 2900 | 3.2 | 9.5 | Y160M2-2H 15 | 413 | |
65CLZ-5.5Z | 293 | |||||||
65CLZ-5.5A | 30 | 48 | 2900 | 3.2 | 8.2 | Y160M1-2H 11 | 408 | |
65CLZ-5.5AZ | 288 | |||||||
65CLZ-6 | 25 | 32 | 2900 | 3.2 | 4.2 | Y132S1-2H 5.5 | 176 | |
65CLZ-6S | ||||||||
65CLZ-6SZ | ||||||||
65CLZ-6A | 21 | 28 | 2900 | 3.2 | 3.1 | Y112M-2H 4 | 150 | |
65CLZ-6AS | ||||||||
65CLZ-6ASZ | ||||||||
65CLZ-8 | 35 | 32 | 2900 | 3.2 | 5.6 | Y132S2-2H 7.5 | 265 | |
65CLZ-8A | 32 | 28 | 2900 | 3.2 | 4.5 | Y132S1-2H 5.5 | 260 | |
65CLZ-9Z | 25 | 20 | 2900 | 3.5 | 2.3 | Y100L-2H 3 | 144 | |
65CLZ-9AZ | 21 | 17 | 2900 | 3.5 | 1.6 | Y90L-2H 2.2 | 135 | |
80CLZ-3 | 50 | 120 | 2900 | 3.5 | 35.5 | Y225M-2H 45 | 668 | |
80CLZ-3A | 45 | 110 | 2900 | 3.5 | 29.3 | Y200L2-2H 37 | 583 | |
80CLZ-4 | 50 | 80 | 2900 | 3.5 | 21.8 | Y200L1-2H 30 | 495 | |
80CLZ-4A | 50 | 70 | 2900 | 3.5 | 19.5 | Y180M-2H 22 | 460 | |
80CLZ-4B | 45 | 62 | 2900 | 3.5 | 16.2 | Y160L-2H 18.5 | 440 | |
80CLZ-6 | 50 | 50 | 2900 | 3.5 | 11.7 | Y160M2-2H 15 | 355 | |
80CLZ-6A | 45 | 48 | 2900 | 3.5 | 10.3 | Y160M2-2H 15 | 355 | |
65CLZ-8 | 35 | 32 | 2900 | 3.2 | 5.6 | Y132S2-2H 7.5 | 265 | |
65CLZ-8A | 32 | 28 | 2900 | 3.2 | 4.5 | Y132S1-2H 5.5 | 260 | |
65CLZ-9Z | 25 | 20 | 2900 | 3.5 | 2.3 | Y100L-2H 3 | 144 | |
65CLZ-9AZ | 21 | 17 | 2900 | 3.5 | 1.6 | Y90L-2H 2.2 | 135 | |
80CLZ-3 | 50 | 120 | 2900 | 3.5 | 35.5 | Y225M-2H 45 | 668 | |
80CLZ-3A | 45 | 110 | 2900 | 3.5 | 29.3 | Y200L2-2H 37 | 583 | |
80CLZ-4 | 50 | 80 | 2900 | 3.5 | 21.8 | Y200L1-2H 30 | 495 | |
80CLZ-4A | 50 | 70 | 2900 | 3.5 | 19.5 | Y180M-2H 22 | 460 | |
80CLZ-4B | 45 | 62 | 2900 | 3.5 | 16.2 | Y160L-2H 18.5 | 440 | |
80CLZ-6 | 50 | 50 | 2900 | 3.5 | 11.7 | Y160M2-2H 15 | 355 | |
80CLZ-6A | 45 | 48 | 2900 | 3.5 | 10.3 | Y160M2-2H 15 | 355 | |
80CLZ-6B | 40 | 42 | 2900 | 3.8 | 8.5 | Y160M1-2H 11 | 346 | |
80CLZ-6BS | 42 | 2900 | ||||||
80CLZ-9 | 50 | 32 | 2900 | 3.5 | 5.6 | Y160M1-2H 11 | 345 | |
80CLZ-9A | 45 | 28 | 2900 | 3.5 | 5.6 | Y132S2-2H 7.5 | 300 | |
80CLZ-9B | 54 | 21 | 2900 | 3.5 | 5.1 | Y132S2-2H 7.5 | 300 | |
80CLZ-13 | 45 | 21 | 2900 | 4.5 | 4.6 | Y132S1-2H 5.5 | 195 | |
80CLZ-14S | 60 | 20 | 2900 | 4 | 5.8 | Y132S2-2H 7.5 | 316 | |
100CLZ-5 | 100 | 120 | 2900 | 4.5 | 62.8 | Y280S-2H 75 | 880 | |
100CLZ-5A | 95 | 110 | 2900 | 4.5 | 55.8 | Y280S-2H 75 | 880 | |
100CLZ-5B | 80 | 100 | 2900 | 4.5 | 43.6 | Y250M-2H 55 | 738 | |
100CLZ-5C | 75 | 95 | 2900 | 4.5 | 39.6 | Y225M-2H 45 | 668 | |
100CLZ-6 | 80 | 80 | 2900 | 4 | 34.2 | Y200L2-2H 37 | 583 | |
100CLZ-6A | 72 | 75 | 2900 | 4.5 | 29.4 | Y200L2-2H 37 | 583 | |
100CLZ-6B | 75 | 62 | 2900 | 4.5 | 26.4 | Y200L1-2H 30 | 553 | |
100CLZ-6.5 | 100 | 80 | 2900 | 4.5 | 39.6 | Y225M-2H 45 | 668 | |
100CLZ-6.5A | 95 | 75 | 2900 | 4.5 | 35.9 | Y225M-2H 45 | 668 | |
100CLZ-8 | 80 | 50 | 2900 | 4 | 18.8 | Y180M-2H 22 | 495 | |
100CLZ-8A | 72 | 46 | 2900 | 4 | 15.8 | Y160L-2H 18.5 | 468 | |
100CLZ-9 | 100 | 50 | 2900 | 4.5 | 22 | Y200L1-2H 30 | 593 | |
100CLZ-9A | 95 | 46 | 2900 | 4.5 | 19.5 | Y180M-2H 22 | 560 | |
100CLZ-12 | 80 | 32 | 2900 | 4 | 11.6 | Y160M2-2H 15 | 468 | |
100CLZ-12A | 72 | 28 | 2900 | 4 | 9.3 | Y160M1-2H 11 | 459 | |
100CLZ-13 | 100 | 32 | 2900 | 4.8 | 13.8 | Y160L-2H 18.5 | 492 | |
100CLZ-13A | 95 | 28 | 2900 | 4.8 | 11.7 | Y160M2-2H 15 | 468 | |
100CLZ-17 | 80 | 20 | 2900 | 4 | 7.3 | Y160M1-2H 11 | 459 | |
100CLZ-18.5 | 100 | 20 | 2900 | 4.8 | 9.1 | Y160M1-2H 11 | 459 | |
100CLZ-18.5A | 95 | 18 | 2900 | 4.8 | 8 | Y160M1-2H 11 | 459 | |
125CLZ-6 | 160 | 120 | 2900 | 5.2 | 95.1 | Y315S-2H 110 | ||
125CLZ-6A | 150 | 110 | 2900 | 5.2 | 83.2 | Y315S-2H 110 | ||
125CLZ-6B | 140 | 110 | 2900 | 5.2 | 77.1 | Y280M-2H 90 | ||
125CLZ-8 | 160 | 80 | 2900 | 5.2 | 60.1 | Y280S-2H 75 | ||
125CLZ-8A | 150 | 75 | 2900 | 5.2 | 52.8 | Y280S-2H 75 | ||
125CLZ-8B | 140 | 68 | 2900 | 5.2 | 48.7 | Y250M-2H 55 | 742 | |
125CLZ-12 | 160 | 50 | 2900 | 5.2 | 35.1 | Y225M-2H 45 | 672 | |
125CLZ-12A | 150 | 46 | 2900 | 5.2 | 30.8 | Y200L2-2H 37 | 587 | |
125CLZ-16.5 | 160 | 32 | 2900 | 5.2 | 22.1 | Y200L1-2H 30 | 557 | |
125CLZ-16.5A | 150 | 28 | 2900 | 5.2 | 18.4 | Y180M-2H 22 | 522 | |
125CLZ-23.5 | 160 | 20 | 2900 | 5.2 | 15.2 | Y160L-2H 18.5 | 502 | |
125CLZ-23.5A | 150 | 18 | 2900 | 5.2 | 12.9 | Y160M2-2H 15 | 477 | |
150CLZ-14 | 250 | 50 | 2900 | 6 | 53.2 | Y280S-2H 75 | 913 | |
150CLZ-14A | 240 | 46 | 2900 | 6 | 47.7 | Y250M-2H 55 | 778 | |
150CLZ-21 | 250 | 32 | 2900 | 6 | 33.5 | Y225M-2H 45 | 708 | |
150CLZ-21A | 240 | 28 | 2900 | 6 | 28.2 | Y200L2-2H 37 | 623 | |
200CLZ-12 | 300 | 30 | 1450 | 5.5 | 40.9 | Y225M-4H 45 | 808 | |
200CLZ-12A | 280 | 25 | 1450 | 5.5 | 32.9 | Y225S-4H 37 | 774 | |
200CLZ-24.5 | 450 | 15 | 1450 | 6 | 34 | Y225S-4H 37 | 774 | |
2. | ||||||||
Performance and parameter table for the power supply frequency of 60Hz 3¦Õ 440V (continued): | ||||||||
Type |
(60Hz 3¦Õ 440V) Main technical parameter |
Motor type & power (kw) |
Weight (Kg) |
|||||
Capacity (m3/h) |
Head (m) |
Speed(r/min) |
NPSHr (m) |
Shaft power (kw) |
||||
40CLZ1-2 | 6 | 85 | 3500 | 4 | 6.6 | Y160M1-2H 11 | ||
40CLZ1-2A | 5 | 78 | 3500 | 4 | 5.5 | Y132S2-2H 7.5 | ||
40CLZ1-4Z | 6 | 46 | 3500 | 4 | 2.8 | Y112M-2H 4 | ||
40CLZ1-4AZ | 6 | 32 | 3500 | 4 | 2.1 | Y100L-2H 3 | ||
50CLZ1-4Z | 24 | 72 | 3500 | 4 | 10.5 | Y160M2-2H 15 | ||
50CLZ1-4AZ | 20 | 65 | 3500 | 4 | 8.2 | Y160M1-2H 11 | ||
50CLZ1-4.5Z | 15 | 45 | 3500 | 4 | 4.3 | Y132S1-2H 5.5 | ||
50CLZ1-4.5AZ | 12 | 40 | 3500 | 4 | 3.1 | Y112M-2H 4 | ||
50CLZ1-6 | 24 | 45 | 3500 | 4 | 5.5 | Y132S2-2H 7.5 | ||
50CLZ1-6S | ||||||||
50CLZ1-6A | 20 | 40 | 3500 | 4 | 4.2 | Y132S1-2H 5.5 | ||
50CLZ1-6AS | ||||||||
50CLZ1-7Z | 15 | 29 | 3500 | 4 | 3 | Y112M-2H 4 | ||
50CLZ1-7AZ | 12 | 25 | 3500 | 4 | 2.1 | Y100L-2H 3 | ||
50CLZ1-9Z | 30 | 21 | 3500 | 4 | 2.9 | Y112M-2H 4 | ||
65CLZ1-4 | 42 | 100 | 3500 | 4 | 23.9 | Y200L1-2H 30 | ||
65CLZ1-4A | 38 | 93 | 3500 | 4 | 20.5 | Y200L1-2H 30 | ||
65CLZ1-4B | 24 | 86 | 3500 | 4 | 15.6 | Y180M-2H 22 | ||
65CLZ1-5.5 | 42 | 72 | 3500 | 4 | 16.5 | Y180M-2H 22 | ||
65CLZ1-5.5A | 36 | 69 | 3500 | 4 | 14.1 | Y160L-2H 18.5 | ||
65CLZ1-6 | 30 | 45 | 3500 | 4 | 7.1 | Y160M1-2H 11 | ||
65CLZ1-6S | ||||||||
65CLZ1-6SZ | ||||||||
65CLZ1-6A | 25 | 40 | 3500 | 4 | 5.3 | Y132S2-2H 7.5 | ||
65CLZ1-6AS | ||||||||
65CLZ1-6ASZ | ||||||||
65CLZ1-8 | 42 | 45 | 3500 | 4 | 9.4 | Y160M2-2H 15 | ||
65CLZ1-8A | 38 | 40 | 3500 | 4 | 7.7 | Y160M1-2H 11 | ||
65CLZ1-9Z | 30 | 29 | 3500 | 4.2 | 4 | Y132S1-2H 5.5 | ||
65CLZ1-9AZ | 25 | 25 | 3500 | 4.2 | 3 | Y112M-2H 4 | ||
80CLZ1-4 | 60 | 115 | 3500 | 4.2 | 37.6 | Y225M-2H 45 | ||
80CLZ1-4A | 60 | 100 | 3500 | 4.2 | 33.4 | Y200L2-2H 37 | ||
80CLZ1-4B | 54 | 89 | 3500 | 4.2 | 27.9 | Y200L2-2H 37 | ||
80CLZ1-6 | 60 | 72 | 3500 | 4.2 | 20.3 | Y200L1-2H 30 | ||
80CLZ1-6A | 54 | 69 | 3500 | 4.2 | 17.8 | Y180M-2H 22 | ||
80CLZ1-6B | 48 | 60 | 3500 | 4.5 | 14.5 | Y160L-2H 18.5 | ||
80CLZ1-6BS | ||||||||
80CLZ1-9 | 60 | 45 | 3500 | 4.2 | 11.9 | Y160M2-2H 15 | ||
80CLZ1-9A | 54 | 40 | 3500 | 4.2 | 9.6 | Y160M2-2H 15 | ||
80CLZ1-9B | 65 | 30 | 3500 | 4.2 | 8.9 | Y160M1-2H 11 | ||
80CLZ1-13 | 54 | 30 | 3500 | 5 | 8 | Y160M1-2H 11 | ||
80CLZ1-14S | 72 | 28 | 3500 | 4.5 | 9.8 | Y160M2-2H 15 | ||
100CLZ1-6 | 95 | 115 | 3500 | 45 | 58.3 | Y280S-2H 75 | ||
100CLZ1-6A | 85 | 108 | 3500 | 5 | 50 | Y250M-2H 55 | ||
100CLZ1-6B | 90 | 89 | 3500 | 5 | 45.4 | Y250M-2H 55 | ||
100CLZ1-6.5 | 120 | 115 | 3500 | 5 | 68.3 | Y280M-2H 90 | ||
100CLZ1-6.5A | 114 | 108 | 3500 | 5 | 62.1 | Y280S-2H 75 | ||
100CLZ1-8 | 95 | 72 | 3500 | 4.5 | 32.1 | Y200L2-2H 37 | ||
100CLZ1-8A | 85 | 65 | 3500 | 4.5 | 26.4 | Y200L2-2H 37 | ||
100CLZ1-9 | 120 | 72 | 3500 | 5 | 38 | Y225M-2H 45 | ||
100CLZ1-9A | 114 | 65 | 3500 | 5 | 33.1 | Y225M-2H 45 | ||
100CLZ1-12 | 95 | 45 | 3500 | 4.5 | 19.4 | Y200L1-2H 30 | ||
100CLZ1-12A | 85 | 40 | 3500 | 4.5 | 15.7 | Y160L-2H 18.5 | ||
100CLZ1-13 | 120 | 45 | 3500 | 5.3 | 23.3 | Y200L1-2H 30 | ||
100CLZ1-13A | 114 | 40 | 3500 | 5.3 | 20 | Y200L1-2H 30 | ||
100CLZ1-17 | 95 | 28 | 3500 | 4.5 | 12.1 | Y160M2-2H 15 | ||
100CLZ1-18.5 | 120 | 28 | 3500 | 5.3 | 15.3 | Y180M-2H 22 | ||
100CLZ1-18.5A | 114 | 25 | 3500 | 5.3 | 13.4 | Y160L-2H 18.5 | ||
125CLZ1-8 | 192 | 115 | 3500 | 6.5 | 103.7 | Y315M-2H 132 | ||
125CLZ1-8A | 180 | 108 | 3500 | 6.5 | 91.3 | Y315S-2H 110 | ||
125CLZ1-8B | 180 | 95 | 3500 | 6.5 | 81.7 | Y280M-2H 90 | ||
125CLZ1-12 | 192 | 72 | 3500 | 5.8 | 60.7 | Y280S-2H 75 | ||
125CLZ1-12A | 180 | 65 | 3500 | 5.8 | 52.2 | Y280S-2H 75 | ||
125CLZ1-16.5 | 192 | 45 | 3500 | 5.8 | 37.4 | Y225M-2H 45 | ||
125CLZ1-16.5A | 180 | 40 | 3500 | 5.8 | 31.6 | Y200L2-2H 37 | ||
125CLZ1-23.5 | 192 | 28 | 3500 | 5.8 | 22.5 | Y200L1-2H 30 | ||
125CLZ1-23.5A | 180 | 25 | 3500 | 5.8 | 19.2 | Y200L1-2H 30 | ||
150CLZ1-14 | 300 | 72 | 3500 | 7 | 91.9 | Y315S-2H 110 | ||
150CLZ1-14A | 288 | 66 | 3500 | 7 | 82.2 | Y280M-2H 90 | ||
150CLZ1-21 | 300 | 46 | 3500 | 7 | 57.8 | Y280S-2H 75 | ||
150CLZ1-21A | 288 | 40 | 3500 | 7 | 48.3 | Y250M-2H 55 | ||
200CLZ1-12 | 360 | 43 | 1740 | 6.5 | 70.3 | Y280M-4H 90 | ||
200CLZ1-12A | 336 | 36 | 1740 | 6.5 | 56.8 | Y280S-4H 75 | ||
200CLZ1-24.5 | 540 | 21 | 1740 | 7 | 57.2 | Y280S-4H 75 |

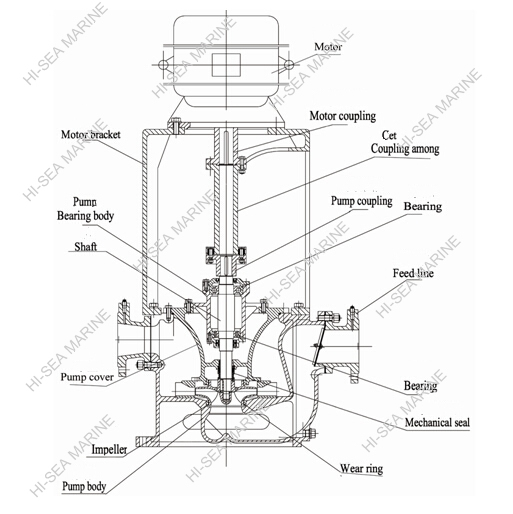

Structure:
Our Certification
