CLV Marine Vertical Centrifugal Pump

Applications:

CLV series vertical centrifugal pump is our newly developed product driven by a marine motor. It is widely used for transporting fresh water, seawater, condensate, oils and saline water. The transported medium shall not contain any abrasive materials and any other chemicals corrosive on the pump. It widely serves as fresh water and seawater cooling pump, burr pump, ballast pump and general pump, and used for seawater desalting device and marine pressure cabinet. The transported medium temperature shall not exceed 80℃. AELC self-priming device can be assembled according to users’ order with additional cost, to achieve self-priming function. Viewing from the motor end downward, this series pump rotates clockwise.

Model Explanation:

For example: CLV80-220A

80 - entrance diameter of the pump,mm

CLV - marine vertical centrifugal pump

220 - nominal diameter of impeller

A - archetype of impeller

Ⅰ or Ⅱ - impeller after cutting its diameter

Main Technical Parameter

1.ameters in case of power supply frequency of 50Hz 3φ 380V
Type	(50Hz 3φ 380V) Main technical parameter					Motor type & power (kW)	Weight (Kg)
	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHr (m)	Shaft power (kW)
CLV65-200A	27	14.5	1450	2.5	1.8	Y100L1-4H 2.2	170
CLV65-280A	30	21	1450	2.5	3.1	Y112M-4H 4	184
CLV65-300A	30	28	1450	2.5	4.4	Y132S-4H 5.5	215
CLV65-350A	25	41	1450	2.5	6.1	Y132M-4H 7.5	235
CLV80-200A	48	14.5	1450	2.5	2.8	Y112M-4H 4	186
CLV80-220A	45	62	2900	4	12	Y160M2-2H 15	370
CLV80-220B1	45	48	2900	4	9.8	Y160M1-2H 11	335
CLV80-280A	54	21.5	1450	3	4.5	Y132S-4H 5.5	215
CLV80-300A	46	28	1450	2.8	5.8	Y132M-4H 7.5	235
CLV80-350A	54	41	1450	3	10.5	Y160L-4H 15	422
CLV80-350B	40	35	1450	2.5	6.9	Y160M-4H 11	389
CLV80-350 B2	42	41	1450	2.5	8.4	Y160M-4H 11	389
CLV100-200 A	83	14.5	1450	3	4.6	Y132S-4H 5.5	215
CLV100-220 A	95	68.5	2900	4.5	24.2	Y200L1-2H 30	470
CLV100-220 B	87	55	2900	4.5	18.5	Y180M-2H 22	435
CLV100-280 A	83	21	1450	3	6.4	Y132M-4H 7.5	265
CLV100-300 A	83	28	1450	2.8	9.1	Y160M-4H 11	290
CLV100-350 A	83	41	1450	3.2	14.2	Y180M-4H 18.5	347
CLV125-200 A	116	14	1450	3.5	5.9	Y132M-4H 7.5	265
CLV125-220 A	149	68.5	2900	5.5	36.9	Y225M-2H 45	595
CLV125-220 B	128	55	2900	5	26.7	Y200L2-2H 37	510
CLV125-270 A	140	86	2900	5	44.7	Y250M-2H 55	800
CLV125-280 A	125	21	1450	3.5	9.6	Y160M-4H 11	300
CLV125-300A	125	28	1450	3	14.3	Y180M-4H 18.5	360
CLV125-350 A	125	41	1450	3.5	19.8	Y200L-4H 30	470
CLV125-350 B	116	34	1450	3.5	15.9	Y180L-4H 22	410
CLV150-200 A	190	14	1450	3.5	9.5	Y160M-4H 11	315
CLV150-220 A	273	62	2900	4.5	61.4	Y280S-2H 75	935
CLV150-270 A	265	86	2900	4	82.1	Y315S-2H 110	1280
CLV150-280 A	182	21	1450	3.5	13.4	Y180M-4H 18.5	390
CLV150-300 A	182	27.5	1450	4	17.7	Y180L-4H 22	430
CLV150-350 A	190	41	1450	3.5	29.1	Y225S-4H 37	550
CLV150-350 B2	190	35	1450	3.5	25.6	Y200L-4H 30	511
CLV200-200 A	332	13.7	1450	4	15.9	Y180M-4H 18.5	410
CLV200-280 A	330	20.5	1450	4.5	23.4	Y200L-4H 30	510
CLV200-280 B	290	17	1450	4.5	17.3	Y180L-4H 22	450
CLV200-280 B2	250	20.5	1450	4	17.9	Y180L-4H 22	450
CLV200-300 A	325	27.5	1450	4.5	30.3	Y225S-4H 37	571
CLV200-350 A	330	41	1450	4.5	46.5	Y250M-4H 55	820
CLV250-280 A	500	20.5	1450	4.5	34.8	Y225M-4H 45	895
CLV250-280 B	415	17	1450	4.2	24.4	Y200L-4H 30	800
CLV250-300 B2	415	27	1450	4.5	38.9	Y225M-4H 45	905
CLV250-350 A	500	34	1450	5	56.8	Y280S-4H 75	1150
CLV250-360 A	500	14	960	4	23.5	Y225M-6H 30	725
CLV250-360 B2	400	14	960	3.5	19.4	Y200L2-6H 22	675
CLV300-300 A	705	27.5	1450	4.5	64.7	Y280S-4H 75	1520
CLV300-360 A	660	14	960	4.5	31.8	Y250M-6H 37	800
CLV350-280 A	830	20.5	1450	4.8	57.6	Y280S-4H 75	1520
CLV350-280 B2	620	20.5	1450	4.5	44.1	Y250M-4H 55	1390
CLV350-360 A	829	14	960	3.8	39.4	Y280S-6H 45	1500
2.Parameters in case of power supply frequency of 60Hz 3φ 440V
Type	(60Hz 3φ440V) Main technical parameter					Motor type & power (kW)	Weight (Kg)
	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHr (m)	Shaft power (kW)
CLV165-200A	33	21.5	1750	2.8	3.2	Y112M-4H 4
CLV165-280A	36	31	1750	3.2	5.2	Y132M-4H 7.5
CLV165-300A	36	41	1750	3.2	7.4	Y160M-4H 11
CLV165-350A	30	60	1750	2.8	10.6	Y160L-4H 15
CLV180-200A	58	21.5	1750	3.2	4.9	Y132S-4H 5.5
CLV180-220A	54	90	3500	5.5	21.4	Y200L1-2H 30
CLV180-220B1	54	70	3500	4.8	17.5	Y180M-2H 22
CLV180-280A	65	31	1750	3.8	7.8	Y160M-4H 11
CLV180-300A	56	41	1750	3.5	10.1	Y160M-4H 11
CLV180-350A	65	60	1750	3.8	18.6	Y180L-4H 22
CLV180-350B	48	51	1750	3.5	11.8	Y160L-4H 15
CLV180-350 B2	50	60	1750	3.5	14.3	Y180M-4H 18.5
CLV1100-200 A	100	21	1750	4	7.8	Y160M-4H 11
CLV1100-220 A	115	100	3500	5.8	40.8	Y250M-2H 55
CLV1100-220 B	105	80	3500	5.8	32.5	Y200L2-2H 37
CLV1100-280 A	100	31	1750	4	11.6	Y160L-4H 15
CLV1100-300 A	100	41	1750	3.8	15.6	Y180M-4H 18.5
CLV1100-350 A	100	60	1750	4.2	24.7	Y200L-4H 30
CLV1125-200 A	140	20.5	1750	4.5	10.2	Y160L-4H 15
CLV1125-220 B	150	80	3500	6.8	45.2	Y250M-2H 55
CLV1125-220 A	180	100	3500	7.3	64.8	Y280S-2H 75
CLV1125-270 A	170	125	3500	6.8	81.7	Y280M-2H 90
CLV1125-280 A	150	31	1750	4	16.8	Y180L-4H 22
CLV1125-300 A	150	41	1750	3.5	24.5	Y200L-4H 30
CLV1125-350 A	150	60	1750	4.3	34.3	Y225M-4H 45
CLV1125-350 B	140	50	1750	4	27.9	Y225S-4H 37
CLV1150-200 A	230	20.5	1750	4.3	16.7	Y180L-4H 22
CLV1150-220 A	330	90	3500	6.8	105.5	Y315M-2H 132
CLV1150-270 A	320	125	3500	5.3	143.6	Y315L1-2H 160
CLV1150-280 A	220	31	1750	4.5	24.7	Y200L-4H 30
CLV1150-300 A	220	40	1750	5.3	32.1	Y225S-4H 37
CLV1150-350 A	230	60	1750	4.5	51.3	Y280S-4H 75
CLV1150-350 B1	230	51	1750	4.8	44.7	Y250M-4H 55
CLV1200-200 A	400	20	1750	4.8	27.9	Y200L-4H 30
CLV1200-280 A	400	30	1750	6	41.2	Y225M-4H 45
CLV1200-280 B	350	25	1750	5.8	31.4	Y225S-4H 37
CLV1200-280 B2	300	30	1750	5.3	31.4	Y225S-4H 37
CLV1200-300 A	390	40	1750	5.8	53.4	Y280S-4H 75
CLV1200-350 A	400	60	1750	5.8	82	Y280M-4H 90
CLV1250-280 A	600	30	1750	5.8	61.1	Y280S-4H 75
CLV1250-280 B	500	25	1750	5.5	43.3	Y250M-4H 55
CLV1250-300 B2	500	40	1750	5.8	69.5	Y280S-4H 75
CLV1250-350 A	600	50	1750	6.5	100.2	Y315M-4H 132
CLV1250-360 A	600	20	1150	4.8	40.3	Y280S-6H 45
CLV1250-360 B2	480	20	1150	4.8	34.3	Y250M-6H 37
CLV1300-300 A	850	40	1750	5.8	113.5	Y315M-4H 132
CLV1300-360 A	800	20	1150	5.8	55.1	Y315S-6H 75
CLV1350-280 A	1000	30	1750	6	101.6	Y315S-4H 110
CLV1350-280 B2	750	30	1750	5.8	78.1	Y280M-4H 90
CLV1350-360 A	1000	20	1150	4.8	67.9	Y315S-6H 75

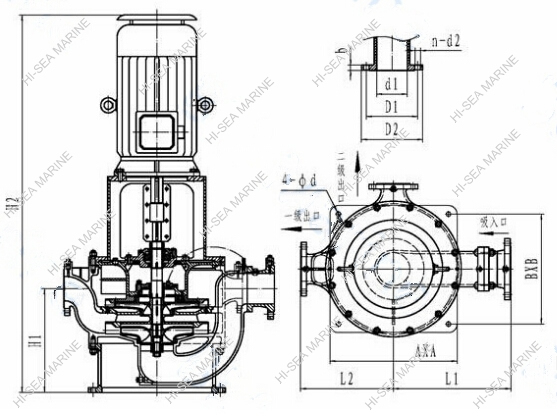

Structure:
