CWZ Marine Horizontal Self-priming Centrifugal Pump
[Search Related Products]
Applications:
CWZ Series marine Horizontal self-priming centrifugal pump has the advantages of compact structure, beautiful appearance, good self-priming performance. According to different media, using different materials, applicable to transport ship bilge and ballast water or for cooling sea water, fire, sanitation, transportation temperature is not higher than 85 ¡æseawater or freshwater.
Model Explanation:
for example 32CWZ-5
32 ¡ª Inlet and outlet diameter 32 mm
CWZ ¡ª Marine Horizontal self-priming centrifugal pumps
5 ¡ª Impeller specific speed divided by 10 compared with the integer value addition.
Main Technical Parameter
Series Name | CWZ |
Product Name | Marine horizontal self-priming centrifugal pump |
Product Model | Marine pump HS-CWZ01 |
Feature | Well fixed and beautifully shaped and have high self-priming fuction,can be installed and used easily,which are best choices for the ships to drain water |
Capacity | 8-100 m3/h |
Head | 21-85 m |
Speed | 2900 /3450 r/min |
Motor power | 1.5-55 kw |
Application |
Can be used in all kinds of ships and warships for ballast,fire control,life water supply on the bilge. They are can be used to pump sea water and fresh water |
Tempreture | Max.80¡æ |
Certification | CCS, BV etc. |
Performance Parameter
CWZ |
50HZ |
60HZ |
50HZ/60HZ |
||||||
Type |
Capacity (m3/h) |
Head (m) |
Power/Motor (kW) |
Capacity (m3/h) |
Head (m) |
Power/Motor (kW) |
Efficiency (%) |
NPSHr (m) |
Weight (kg) |
32CWZ-5 |
8 |
21 |
1.5/Y90S-2H |
9.6 |
30.2 |
3/Y100L-2H |
38 |
4 |
28 |
32CWZ-4 |
8 |
30 |
2.2/Y90L-2H |
9.6 |
43.2 |
4/Y112M-2H |
40 |
4 |
29 |
32CWZ-3 |
8 |
42 |
4/Y112M-2H |
9.6 |
60.5 |
5.5/Y132S1-2H |
36 |
4 |
30 |
40CWZ-6 |
12 |
21 |
2.2/Y90L-2H |
14.4 |
30.2 |
3/Y100L-2H |
52 |
4 |
42 |
40CWZ-5 |
12 |
30 |
3/Y100L-2H |
14.4 |
43.2 |
4/Y112M-2H |
51 |
4 |
50 |
40CWZ-4 |
12 |
42 |
4/Y112M-2H |
14.4 |
60.5 |
5.5/Y132S1-2H |
47 |
4 |
50 |
50CWZ-8 |
21 |
21 |
3/Y100L-2H |
25.2 |
30.2 |
5.5/Y132S1-2H |
51 |
4 |
46 |
50CWZ-6 |
21 |
30 |
4/Y112M-2H |
25.2 |
43.2 |
7.5/Y132S2-2H |
56 |
4 |
60 |
50CWZ-5 |
21 |
42 |
5.5/Y132S1-2H |
25.2 |
60.5 |
11/Y160M1-2H |
52 |
4 |
52 |
65CWZ-11 |
36 |
21 |
4/Y112M-2H |
43.2 |
30.2 |
7.5/Y132S2-2H |
64 |
4 |
50 |
65CWZ-8 |
36 |
30 |
5.5/Y132S1-2H |
43.2 |
43.2 |
11/Y160M1-2H |
61 |
4 |
52 |
65CWZ-6 |
36 |
42 |
11/Y160M1-2H |
43.2 |
60.5 |
15/Y160M2-2H |
57 |
5 |
65 |
65CWZ-5 |
36 |
60 |
15/Y160M2-2H |
43.2 |
86.4 |
22/Y180M-2H |
52 |
5 |
80 |
80CWZ-14 |
60 |
21 |
7.5/Y132S2-2H |
72 |
30.2 |
11/Y160M1-2H |
67 |
4 |
85 |
80CWZ-11 |
60 |
30 |
11/Y160M1-2H |
72 |
43.2 |
15/Y160M2-2H |
65 |
4 |
92 |
80CWZ-8 |
60 |
42 |
15/Y160M2-2H |
72 |
60.5 |
30/Y200L1-2H |
55 |
5 |
100 |
80CWZ-6 |
60 |
60 |
22/Y180M-2H |
72 |
86.4 |
37/Y200L2-2H |
54 |
5 |
100 |
80CWZ-5.5 |
60 |
75 |
30/Y200L1-2H |
72 |
108 |
45/Y225M-2H |
56 |
5 |
110 |
100CWZ-18 |
100 |
21 |
11/Y160M1-2H |
120 |
30.2 |
18.5/Y160L-2H |
68 |
5 |
125 |
100CWZ-14 |
100 |
30 |
15/Y160M2-2H |
120 |
43.2 |
30/Y200L1-2H |
65 |
5 |
128 |
100CWZ-11 |
100 |
42 |
22/Y180M-2H |
120 |
60.5 |
37/Y200L2-2H |
58 |
5 |
135 |
100CWZ-8 |
100 |
60 |
30/Y200L1-2H |
120 |
86.4 |
55/Y250M-2H |
55 |
4 |
152 |
100CWZ-6 |
100 |
85 |
45/Y225M-2H |
120 |
122.4 |
75/Y280S-2H |
59 |
5 |
165 |
80CWZ-4 |
25 |
25 |
5.5/Y132S-4H |
30 |
36 |
7.5/Y132M-4H |
42 |
2.3 |
|
125CWZ-23.5 |
160 |
20 |
18.5/Y180M-4H |
192 |
28.8 |
30/Y200L-4H |
60 |
5 |
|
125CWZ-16.5 |
160 |
32 |
30/Y200L-4H |
192 |
46 |
45/Y225M-4H |
63 |
5 |
|
150CWZ-3.5 |
110 |
80 |
55/Y250M-4H |
130 |
115 |
90/Y280M-4H |
55 |
4.2 |
|
150CWZ-13 |
200 |
20 |
22/Y180L-4H |
240 |
28.5 |
37/Y225S-4H |
60 |
5 |
|
150CWZ-9 |
200 |
32 |
37/Y225S-4H |
240 |
43.8 |
55/Y250M-4H |
55 |
5 |
|
150CWZ-7 |
200 |
45 |
45/Y225M-4H |
240 |
65 |
75/Y280S-4H |
65 |
5 |
|
200CWZ-15 |
250 |
14 |
18.5/Y180M-4H |
300 |
20 |
30/Y200L-4H |
71 |
5 |
|
200CWZ-9 |
300 |
45 |
75/Y280S-4H |
360 |
65 |
110/Y280M-4H |
70 |
5 |
|
Note: the following optional220V/3KW single-phase motor.

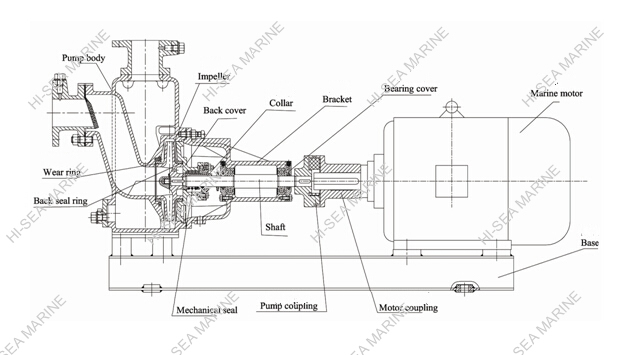

Structure:

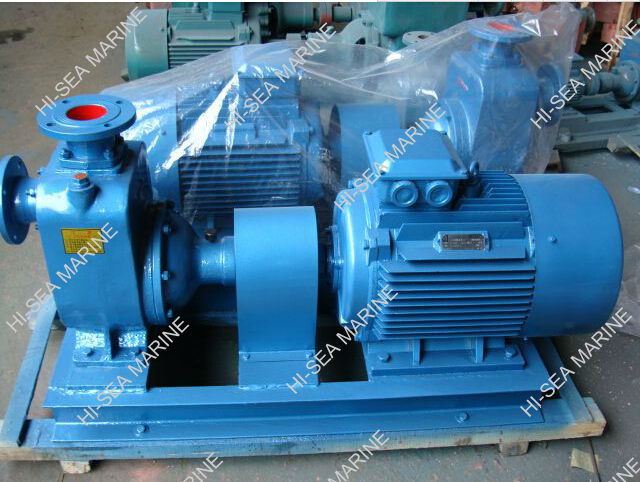

Photo:
