180kgs to 46000kgs JIS Stockless Anchor
[Search Related Products]
JIS STOCKLESS ANCHOR
Japan stockless anchor is a normal type of stockless anchor. Normal Japan stockless anchor has a small ball on each fluke.
Product Detail
1.Material: ZG200-400C
2.Certificate: ABS,LR, BV, DNV, NK, IRS, CCS
3.Weight: 180kgs-46000kgs
4.Surface treatment: Black painted, Galvanized,anti-rusting paint or customized

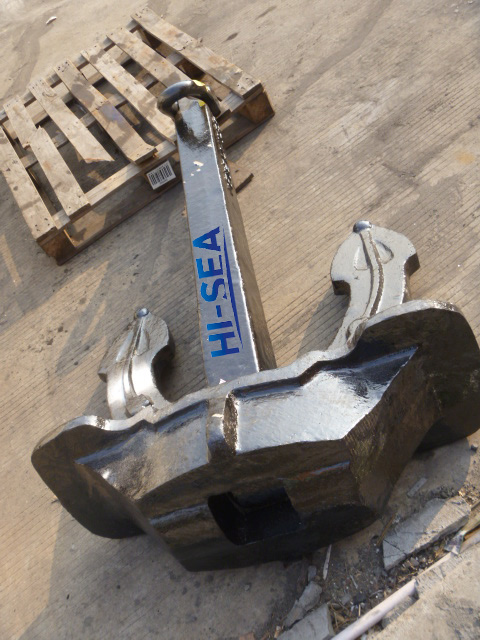

Jis Type Stockless Anchor

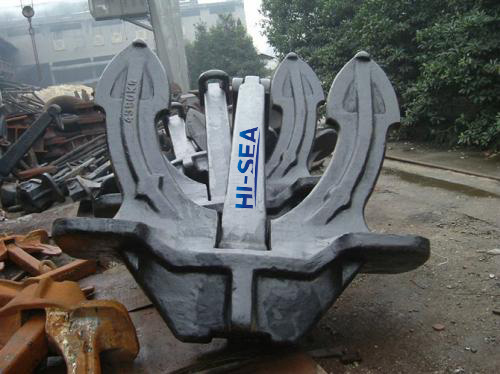

JIS Stockless Anchor

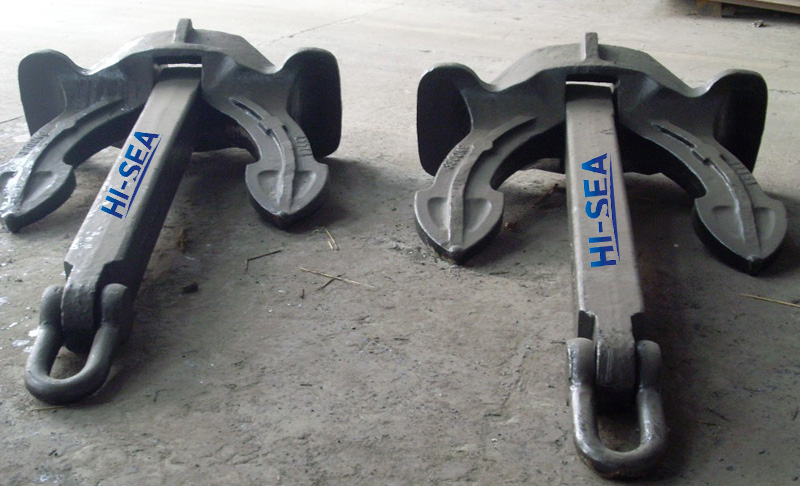

JIS Stockless Anchor

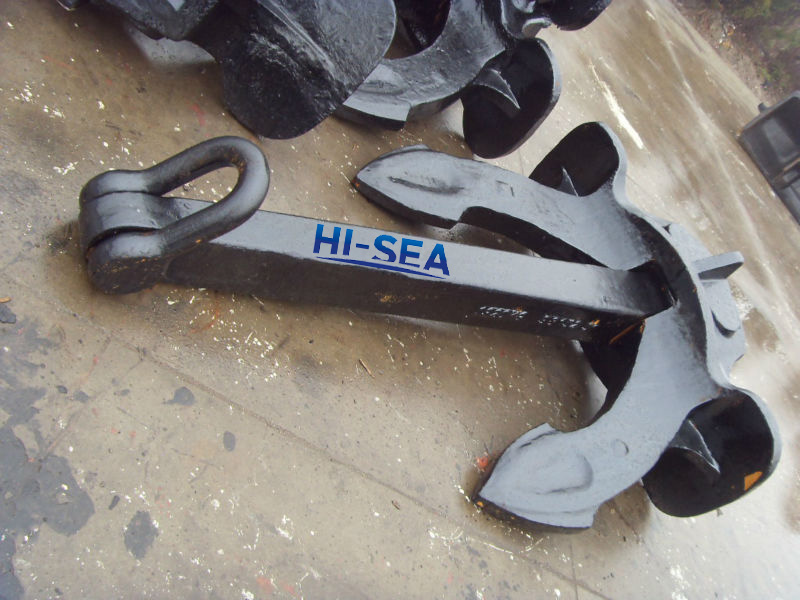

JIS Stockless Anchor

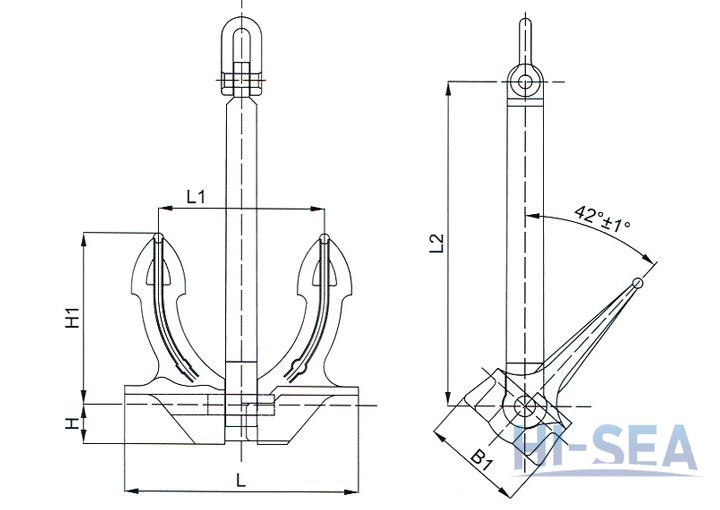

JIS Stockless Anchor Process Drawing
JIS Stockless Anchor Techinical Specification:
Nominal Weight |
Size(mm) |
|||||
L |
L1 |
L2 |
H |
H1 |
H2 |
|
180 |
650 |
459 |
910 |
111 |
480 |
280 |
240 |
720 |
510 |
1010 |
122 |
530 |
310 |
300 |
770 |
540 |
1080 |
131 |
570 |
331 |
360 |
820 |
580 |
1150 |
139 |
610 |
353 |
420 |
860 |
610 |
1200 |
146 |
640 |
370 |
480 |
900 |
640 |
1260 |
153 |
670 |
387 |
570 |
950 |
670 |
1330 |
162 |
700 |
408 |
660 |
1000 |
710 |
1440 |
170 |
740 |
430 |
780 |
1060 |
750 |
180 |
180 |
780 |
456 |
900 |
1110 |
780 |
1550 |
189 |
820 |
477 |
1020 |
1160 |
820 |
1620 |
197 |
860 |
500 |
1140 |
1200 |
850 |
1680 |
204 |
890 |
520 |
1290 |
1250 |
880 |
1750 |
212 |
920 |
540 |
1440 |
1300 |
920 |
1820 |
221 |
960 |
560 |
1590 |
1340 |
950 |
1880 |
228 |
990 |
580 |
Note: the above specification chart is only a part. For more information, please feel free to contact us.
