High Holding Power Anchor
Major advantages of high holding power anchor1. Easy dismantling for transport purposes.
2. Proven superior high holding power capacity.
3. Excellent efficiency (weight / holding power)
4. Open construction for smooth and good penetration in different kinds of soil
5. No rotation, which means no decrease of holding capacity and no dragging of the anchor
Product Detail
1. Material: steel plate
2. Weight: 100kg-15000kg
3. Certificate: CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA
4.Surface treatment: Black bitumen paint, anti-rusting paint or customized

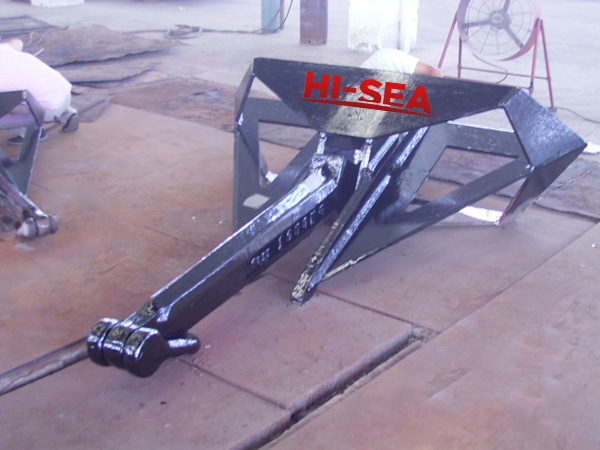

High Holding Power Anchor

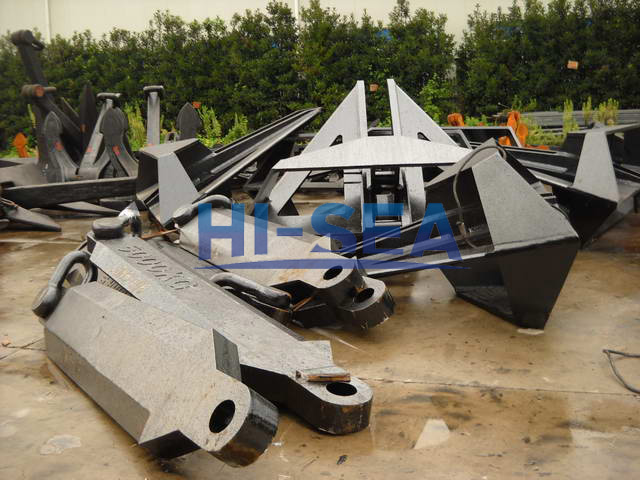

High Holding Power Anchor

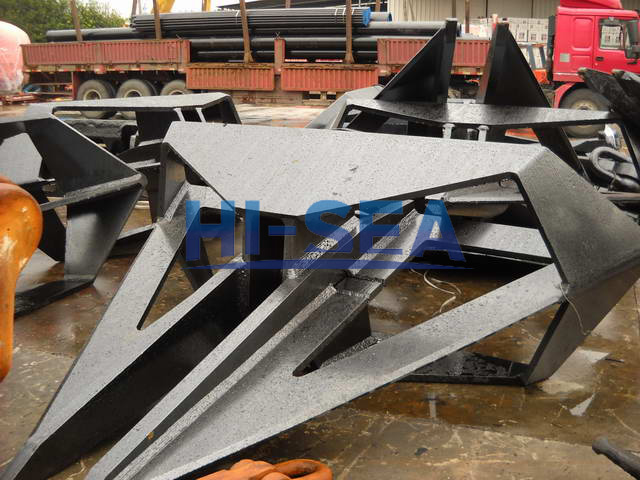

High Holding Power Anchor Completed
High Holding Power anchor process drawing
High Holding Power Anchor Specifications:
Nominal Weight (kg) | Dimensions (mm) | |||||
A | B | C | D | E | F | |
300 | 1,200 | 960 | 1,080 | 457 | 1,380 | ¦µ45 |
500 | 1,500 | 1,200 | 1,350 | 571 | 1,725 | ¦µ50 |
1,000 | 1,875 | 1,500 | 1,686 | 714 | 2,155 | ¦µ62 |
1,080 | 1,915 | 1,530 | 1,686 | 722 | 2,200 | ¦µ62 |
2,000 | 2,363 | 1,890 | 2,124 | 900 | 2,715 | ¦µ74 |
3,000 | 2,700 | 2,160 | 2,430 | 1,028 | 3,105 | ¦µ90 |
4,000 | 2,975 | 2,380 | 2,676 | 1,133 | 3,420 | ¦µ100 |
5,000 | 3,250 | 2,600 | 2,922 | 1,238 | 3,735 | ¦µ110 |
7,000 | 3,575 | 2,860 | 3,216 | 1,360 | 4,110 | ¦µ117 |
9,000 | 3,950 | 3,160 | 3,555 | 1,504 | 4,543 | ¦µ135 |
10,000 | 4,100 | 3,280 | 3,690 | 1,561 | 4,715 | ¦µ140 |
12,000 | 4,490 | 3,575 | 4,030 | 1,695 | 5,320 | ¦µ145 |
13,500 | 4,670 | 3,720 | 4,195 | 1,765 | 5,535 | ¦µ150 |
15,000 | 4,845 | 3,875 | 4,355 | 1,830 | 5,735 | ¦µ150 |
18,000 | 5,140 | 4,080 | 4,610 | 1,940 | 6,080 | ¦µ160 |
20,000 | 5,330 | 4,260 | 4,790 | 2,010 | 6,310 | ¦µ170 |
22,500 | 5,490 | 4,360 | 4,905 | 2,060 | 6,470 | ¦µ180 |
25,000 | 5,740 | 4,590 | 5,106 | 2,165 | 6,795 | ¦µ180 |
27,500 | 5,980 | 4,785 | 5,385 | 2,245 | 7,095 | ¦µ180 |
Any other interest please feel free to contact us.
