Spek Anchor
Spek anchor is one type of stockless anchors. Spek anchor is modified from the Hall anchor, whose core of anchor head is located in the center of the pin center line to the bottom. The structure of Spek anchor is characterized that there is anchor crown plate and reinforcing ribs at the anchor crown. Therefore, the anchor claw is easily to turn to the ground and has better stability. Moreover, when collecting the anchor, its flukes keep naturally upward and overturn immediately when touching the hull plate to avoid damaging the shell plating.
Product Detail
1. Type: Spek Stockless Anchor
2. Material: casting steel
3. Nominal Weight: 210kg to 20000kg (Type SR), 100kg to 26000kg (CB711-95), 80kg to 20000kg (Type M)
4. Application: marine ships
5. Certificate: CCS,ABS,LR,GL,DNV,NK,BV,KR,RINA,RS etc.
Spek Anchor Type
1. CB/T711-1995 Spek Anchor
2. Type M Spek Anchor
3. Type SR Spek Anchor
Note: our company is a professional marine anchor supplier. We can supply all variety of anchors to meet your different needs. Our anchors are approved by classification societies and get the certificates. If you¡¯re interested in our products, please feel free to contact us. We¡¯re sincere to cooperate with you.

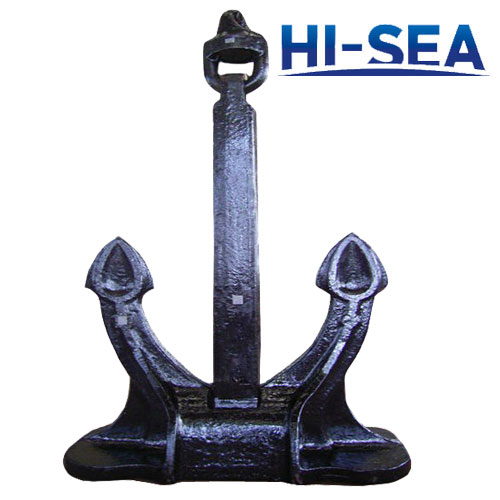

Type M Spek Anchor
Type M Spek Anchor Drawing

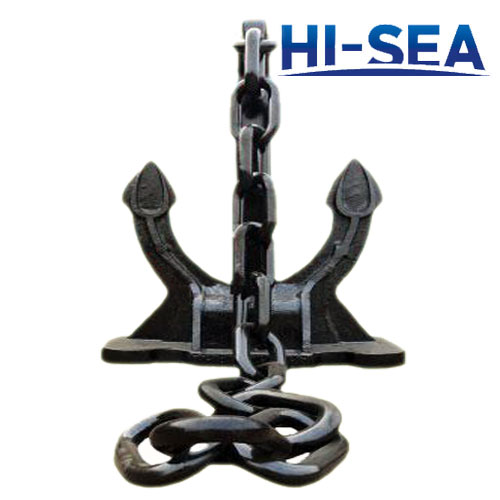

Type SR Spek Anchor

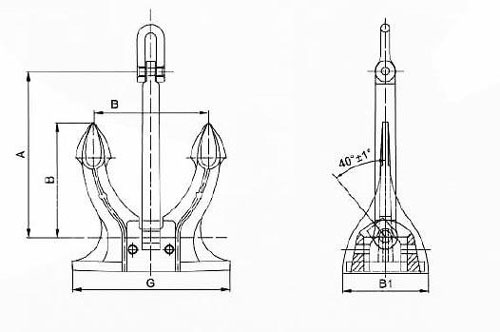

Type SR Spek Anchor Drawing

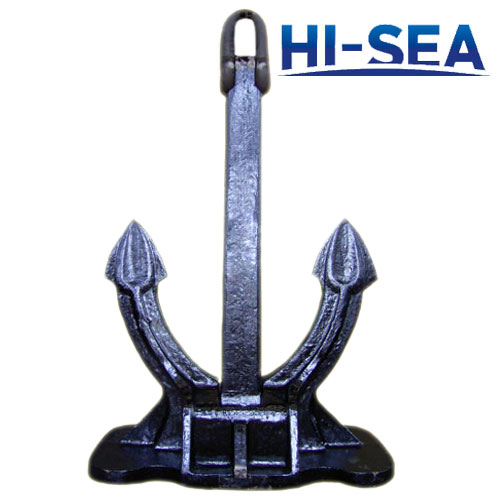

CB/T711-1995 Spek Anchor

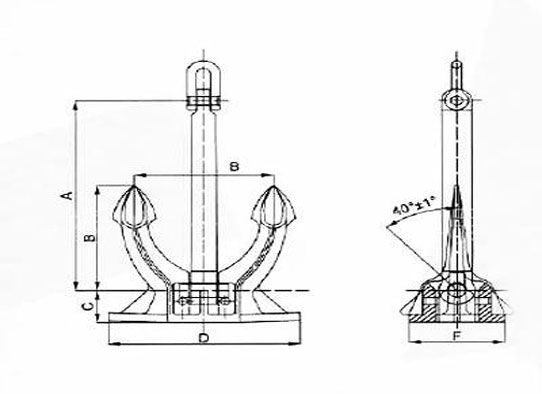

Type 95 Spek Anchor Process Drawing
Specifications of 95 Spek Anchor
Nominal Weight |
Size(mm) |
||||
A |
B |
C |
D |
F |
|
100 |
672 |
373 |
112 |
515 |
250 |
150 |
770 |
428 |
128 |
590 |
290 |
180 |
846 |
470 |
140 |
640 |
300 |
240 |
900 |
500 |
150 |
690 |
358 |
300 |
990 |
550 |
166 |
760 |
398 |
360 |
1065 |
600 |
180 |
828 |
431 |
420 |
1080 |
600 |
180 |
828 |
446 |
500 |
1170 |
650 |
196 |
900 |
446 |
570 |
1170 |
650 |
196 |
900 |
486 |
660 |
1260 |
700 |
210 |
962 |
486 |
780 |
1355 |
750 |
225 |
1032 |
547 |
900 |
1440 |
800 |
240 |
1100 |
573 |
1020 |
1530 |
850 |
252 |
1170 |
591 |
1140 |
1620 |
900 |
268 |
1240 |
620 |
1290 |
1710 |
900 |
268 |
1240 |
640 |
1440 |
1710 |
950 |
279 |
1300 |
671 |
1590 |
1710 |
950 |
279 |
1378 |
689 |
1740 |
1800 |
1000 |
300 |
1454 |
704 |
1920 |
1850 |
1050 |
312 |
1454 |
717 |
2100 |
1890 |
1050 |
312 |
1454 |
736 |
2280 |
2010 |
1050 |
312 |
1514 |
764 |
2460 |
2010 |
1100 |
324 |
1584 |
794 |
2640 |
2070 |
1150 |
352 |
1584 |
804 |
2850 |
2070 |
1150 |
352 |
1650 |
820 |
3060 |
2160 |
1200 |
360 |
1650 |
834 |
3300 |
2155 |
1200 |
360 |
1650 |
834 |
3540 |
2350 |
1200 |
360 |
1850 |
880 |
3780 |
2430 |
1350 |
393 |
1850 |
917 |
4050 |
2430 |
1350 |
393 |
1926 |
930 |
4320 |
2520 |
1400 |
413 |
1926 |
930 |
4590 |
2520 |
1400 |
413 |
1926 |
931 |
4890 |
2520 |
1400 |
413 |
2000 |
954 |
5250 |
2610 |
1450 |
414 |
2000 |
964 |
5610 |
2610 |
1450 |
414 |
2060 |
981 |
6000 |
2700 |
1500 |
446 |
2060 |
1006 |
6450 |
2700 |
1500 |
446 |
2138 |
1028 |
6900 |
2790 |
1550 |
456 |
2138 |
1034 |
7350 |
2790 |
1550 |
456 |
2138 |
1062 |
7800 |
2920 |
1550 |
456 |
2332 |
1126 |
8300 |
3060 |
1700 |
510 |
2332 |
1156 |
8700 |
3060 |
1700 |
510 |
2332 |
1169 |
9300 |
3060 |
1700 |
510 |
2332 |
1188 |
9900 |
1700 |
1700 |
510 |
2332 |
1188 |
10500 |
1770 |
1770 |
531 |
2440 |
1212 |
11100 |
1770 |
1770 |
531 |
2440 |
1237 |
11700 |
1770 |
1770 |
531 |
2440 |
1279 |
12300 |
1910 |
1910 |
573 |
2632 |
1279 |
12900 |
1910 |
1910 |
573 |
2632 |
1316 |
13500 |
1910 |
1910 |
573 |
2632 |
1353 |
14100 |
1910 |
1910 |
573 |
2632 |
1369 |
14700 |
2050 |
2050 |
615 |
2824 |
1369 |
15400 |
2050 |
2050 |
615 |
2824 |
1387 |
16100 |
2050 |
2050 |
615 |
2824 |
1387 |
16900 |
2120 |
2120 |
636 |
2922 |
1415 |
17800 |
2120 |
2120 |
636 |
2922 |
1431 |
18800 |
2190 |
2190 |
657 |
3018 |
1461 |
20000 |
2190 |
2190 |
657 |
3018 |
1493 |
26000 |
2360 |
2360 |
716 |
3258 |
1628 |
For more detail information and specifications, please click the link to download the file Spek Anchor Specifications

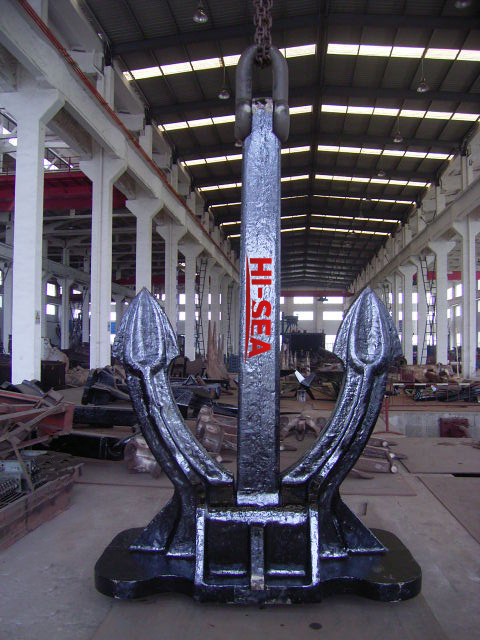

Spek Anchors

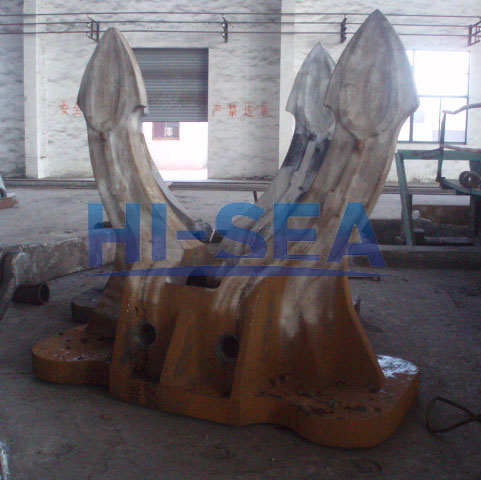

Type 95 Spek Anchor Factory

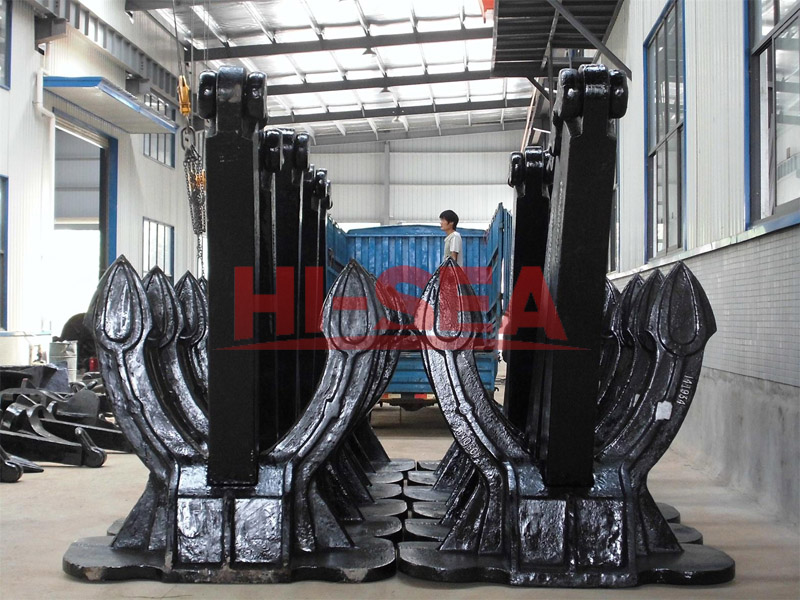

Type 95 Spek Anchor Factory
Type 95 Spek Anchor
