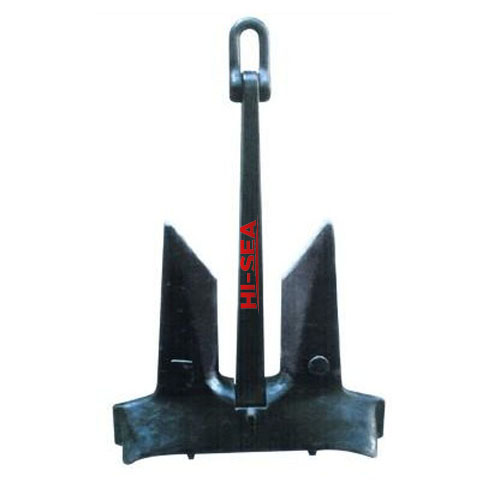

AC-14 HHP Anchor
Marine AC-14 anchor is stockless high holding power anchor that has wide anchor crown, thick and long flukes and longitudinal ribs. AC-14 anchor¡¯s heavy weight and high holding power makes it good stability. It is commonly used as main anchor on large container ships, car carriers and supertankers.
Details:
1. Type: Stockless HHP Anchor
2. Material: High Tensile Casting Steel
3. Nominal Weight: 56kg to 20000kg
4. Application: all kinds of seabed such as mud, soil, sandstone etc.
5. Features: fast deployment, excellent stability, high holding power up to 14
6. Certificate: CCS,ABS,LR,GL,DNV,NK,BV,KR,RINA,RS etc.
Note: our company is a professional marine anchor supplier. We can provide all types and specifications of anchors for you. If you¡¯re interested in our anchors, please feel free to contact us. We¡¯re sincere to establish long-term cooperation relationship with you.

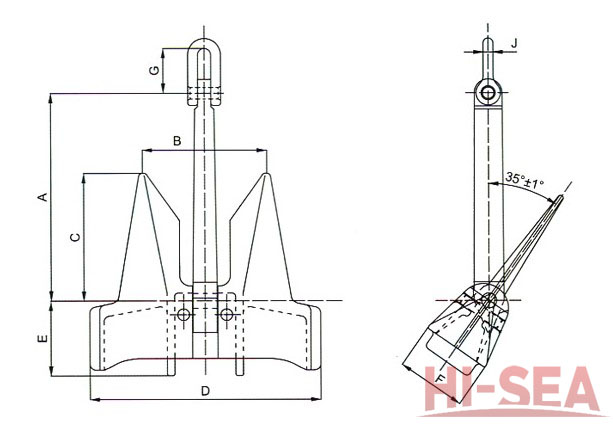

AC-14 Anchor Process Drawing
Specifications:
Nominal Weight (kg) |
Dimensions (mm) |
|||||
A |
B |
C |
D |
E |
F |
|
56 |
612 |
555 |
170 |
376 |
113 |
298 |
100 |
745 |
675 |
200 |
458 |
135 |
364 |
135 |
745 |
675 |
205 |
458 |
135 |
364 |
180 |
909 |
822 |
252 |
558 |
166 |
442 |
225 |
1,010 |
915 |
277 |
623 |
185 |
495 |
250 |
1,010 |
915 |
280 |
623 |
185 |
495 |
270 |
1,040 |
940 |
288 |
638 |
190 |
508 |
300 |
1,075 |
975 |
298 |
660 |
200 |
525 |
315 |
1,075 |
975 |
300 |
660 |
200 |
525 |
340 |
1,120 |
1,015 |
310 |
690 |
205 |
548 |
360 |
1,120 |
1,015 |
313 |
690 |
205 |
548 |
428 |
1,213 |
1,098 |
336 |
745 |
222 |
590 |
495 |
1,255 |
1,135 |
348 |
770 |
230 |
610 |
590 |
1,350 |
1,220 |
375 |
829 |
246 |
658 |
675 |
1,412 |
1,278 |
390 |
868 |
257 |
690 |
765 |
1,470 |
1,335 |
408 |
906 |
269 |
718 |
910 |
1,560 |
1,410 |
430 |
957 |
284 |
760 |
970 |
1,592 |
1,445 |
440 |
978 |
292 |
775 |
1,080 |
1,650 |
1,495 |
455 |
1,014 |
302 |
805 |
1,200 |
1,710 |
1,545 |
470 |
1,050 |
315 |
835 |
1,305 |
1,760 |
1,595 |
485 |
1,082 |
323 |
858 |
1,361 |
1,782 |
1,615 |
495 |
1,096 |
326 |
870 |
1,440 |
1,818 |
1,645 |
505 |
1,118 |
332 |
885 |
1,575 |
1,875 |
1,695 |
518 |
1,152 |
343 |
915 |
1,710 |
1,925 |
1,745 |
532 |
1,184 |
352 |
940 |
1,845 |
1,975 |
1,785 |
546 |
1,215 |
362 |
965 |
1,980 |
2,020 |
1,830 |
560 |
1,242 |
370 |
985 |
2,100 |
2,065 |
1,865 |
570 |
1,268 |
377 |
1,005 |
2,295 |
2,130 |
1,920 |
588 |
1,310 |
385 |
1,035 |
2,475 |
2,175 |
1,970 |
602 |
1,340 |
395 |
1,062 |
2,655 |
2,225 |
2,018 |
615 |
1,368 |
408 |
1,085 |
2,794 |
2,265 |
2,055 |
625 |
1,393 |
415 |
1,105 |
3,040 |
2,320 |
2,100 |
640 |
1,424 |
426 |
1,130 |
3,550 |
2,455 |
2,225 |
680 |
1,508 |
450 |
1,198 |
3,670 |
2,480 |
2,248 |
688 |
1,525 |
455 |
1,210 |
3,940 |
2,540 |
2,300 |
705 |
1,562 |
465 |
1,240 |
4,500 |
2,655 |
2,405 |
735 |
1,632 |
485 |
1,295 |
4,840 |
2,720 |
2,465 |
755 |
1,670 |
500 |
1,330 |
5,175 |
2,785 |
2,520 |
770 |
1,710 |
510 |
1,358 |
5,610 |
2,858 |
2,590 |
790 |
1,758 |
523 |
1,396 |
6,000 |
2,922 |
2,646 |
810 |
1,796 |
535 |
1,426 |
6,450 |
2,995 |
2,712 |
830 |
1,840 |
548 |
1,462 |
6,900 |
3,062 |
2,775 |
848 |
1,884 |
560 |
1,496 |
7,350 |
3,126 |
2,832 |
866 |
1,923 |
572 |
1,526 |
7,800 |
3,190 |
2,890 |
884 |
1,962 |
584 |
1,558 |
8,300 |
3,256 |
2,950 |
902 |
2,002 |
596 |
1,590 |
8,700 |
3,308 |
2,996 |
916 |
2,034 |
605 |
1,614 |
9,300 |
3,382 |
3,064 |
936 |
2,080 |
619 |
1,652 |
9,675 |
3,425 |
3,104 |
948 |
2,108 |
627 |
1,674 |
9,900 |
3,452 |
3,128 |
956 |
2,124 |
632 |
1,686 |
10,500 |
3,523 |
3,192 |
976 |
2,166 |
645 |
1,720 |
11,100 |
3,589 |
3,252 |
994 |
2,207 |
657 |
1,752 |
11,700 |
3,650 |
3,308 |
1,010 |
2,245 |
668 |
1,782 |
12,300 |
3,712 |
3,364 |
1,028 |
2,283 |
680 |
1,812 |
12,900 |
3,772 |
3,418 |
1,044 |
2,320 |
690 |
1,842 |
13,500 |
3,830 |
3,470 |
1,060 |
2,355 |
700 |
1,870 |
14,100 |
3,885 |
3,520 |
1,076 |
2,389 |
710 |
1,896 |
14,700 |
3,940 |
3,570 |
1,090 |
2,423 |
721 |
1,924 |
15,400 |
4,002 |
3,626 |
1,108 |
2,461 |
732 |
1,954 |
16,100 |
4,062 |
3,680 |
1,125 |
2,498 |
744 |
1,982 |
16,900 |
4,128 |
3,740 |
1,144 |
2,538 |
755 |
2,016 |
17,800 |
4,200 |
3,806 |
1,162 |
2,583 |
769 |
2,050 |
18,800 |
4,277 |
3,875 |
1,185 |
2,630 |
783 |
2,088 |
20,000 |
4,366 |
3,956 |
1,210 |
2,685 |
800 |
2,132 |
25,000 |
5,046 |
4,577 |
1,375 |
3,135 |
846 |
2,438 |

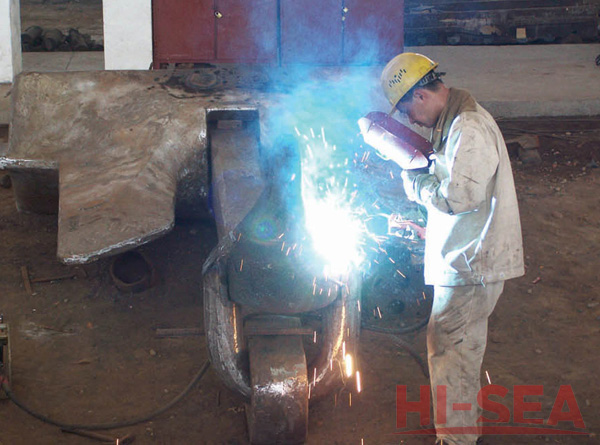

AC-14 Anchor welding process

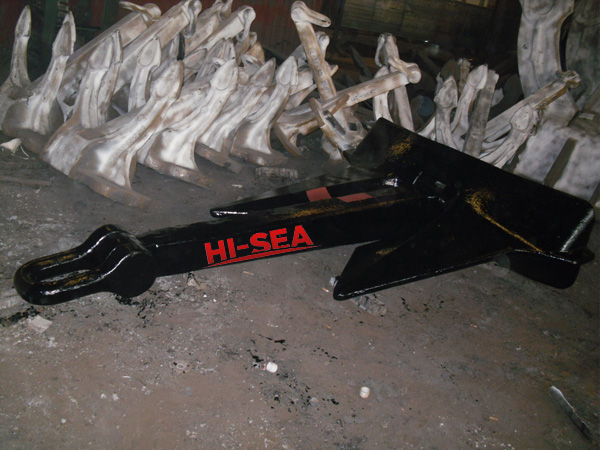

AC-14 Anchor
AC-14 Anchor
Type HY-09 AC-14 HHP Anchor
