U.S.N. Stockless Anchor
We have been a marine anchor supplier since 1996, including Stockless Anchor, Stock Anchor, High Holding Power Anchor and Offshore Anchor. ABS, LR, BV, LR, DNV, GL, KR, IRS, CCS Certificate is avialable for our products. With the advantage of wide source, good quality and excellent service, we could be your reliable partner in China.
The U.S.N stockless anchor is the most commonly used conventional stockless anchor, mainly used for technical ships, rescue ships and used as positioning anchor.
Product Detail:
1.Type: U.S.N. Stockless Anchor
2. Material: Casting Steel
3.Weight: 300KGS-30000KGS
4.Certificate: ABS, LR, GL, BV, DNV, NK, IRS, CCS.

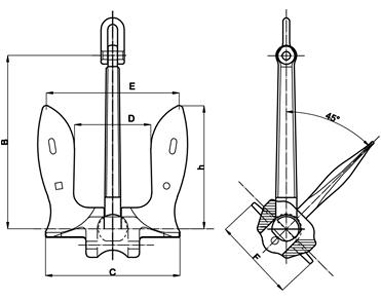

U.S.N. Stockless Anchor Drawing
Specification
Nominal Weight(kg) |
Size(mm) |
|||||
B |
C |
D |
E |
F |
h |
|
300 |
727 |
635 |
319 |
562 |
348 |
510 |
400 |
800 |
699 |
351 |
619 |
364 |
570 |
500 |
863 |
753 |
379 |
666 |
412 |
614 |
600 |
914 |
800 |
402 |
708 |
438 |
652 |
750 |
984 |
842 |
423 |
763 |
461 |
687 |
800 |
1008 |
880 |
443 |
778 |
483 |
710 |
1000 |
1071 |
948 |
477 |
839 |
520 |
773 |
1200 |
1152 |
1008 |
507 |
892 |
532 |
822 |
1300 |
1184 |
1035 |
521 |
926 |
567 |
844 |
1500 |
1244 |
1086 |
546 |
962 |
596 |
883 |
1800 |
1320 |
1154 |
580 |
1021 |
632 |
941 |
2000 |
1371 |
1195 |
601 |
1058 |
655 |
975 |
2200 |
1412 |
1234 |
621 |
1092 |
676 |
1006 |
2500 |
1473 |
1287 |
648 |
1139 |
706 |
1050 |
3000 |
1564 |
1398 |
704 |
1270 |
775 |
1050 |
3500 |
1641 |
1440 |
725 |
1275 |
790 |
1175 |
4000 |
1724 |
1506 |
758 |
1333 |
826 |
1228 |
5000 |
1884 |
1622 |
816 |
1436 |
889 |
1323 |
6000 |
1974 |
1724 |
867 |
1528 |
947 |
1403 |
7000 |
2082 |
1815 |
913 |
1606 |
996 |
1480 |
8000 |
2171 |
1897 |
955 |
1679 |
1040 |
1547 |
9000 |
2257 |
1973 |
993 |
1747 |
1082 |
1609 |
10000 |
2336 |
2044 |
1028 |
1809 |
1120 |
1667 |
11000 |
2413 |
2110 |
1062 |
1868 |
1158 |
1721 |
12000 |
2486 |
2172 |
1093 |
1924 |
1193 |
1771 |
13000 |
2540 |
2231 |
1122 |
1965 |
1194 |
1819 |
14500 |
2641 |
2313 |
1144 |
2047 |
1270 |
1887 |
15000 |
2679 |
2340 |
1177 |
2089 |
1295 |
1908 |
16000 |
2735 |
2390 |
1203 |
2116 |
1311 |
1950 |
18000 |
2844 |
2486 |
1251 |
2200 |
1365 |
2028 |
20000 |
2946 |
2575 |
1296 |
2280 |
1412 |
2100 |
22500 |
3060 |
2678 |
1345 |
2370 |
1463 |
2134 |
25000 |
3174 |
2774 |
1396 |
2456 |
1521 |
2262 |
30000 |
3371 |
2949 |
1483 |
2628 |
1631 |
2404 |
