Steel Plate Welded Anchor

[Search Related Products]

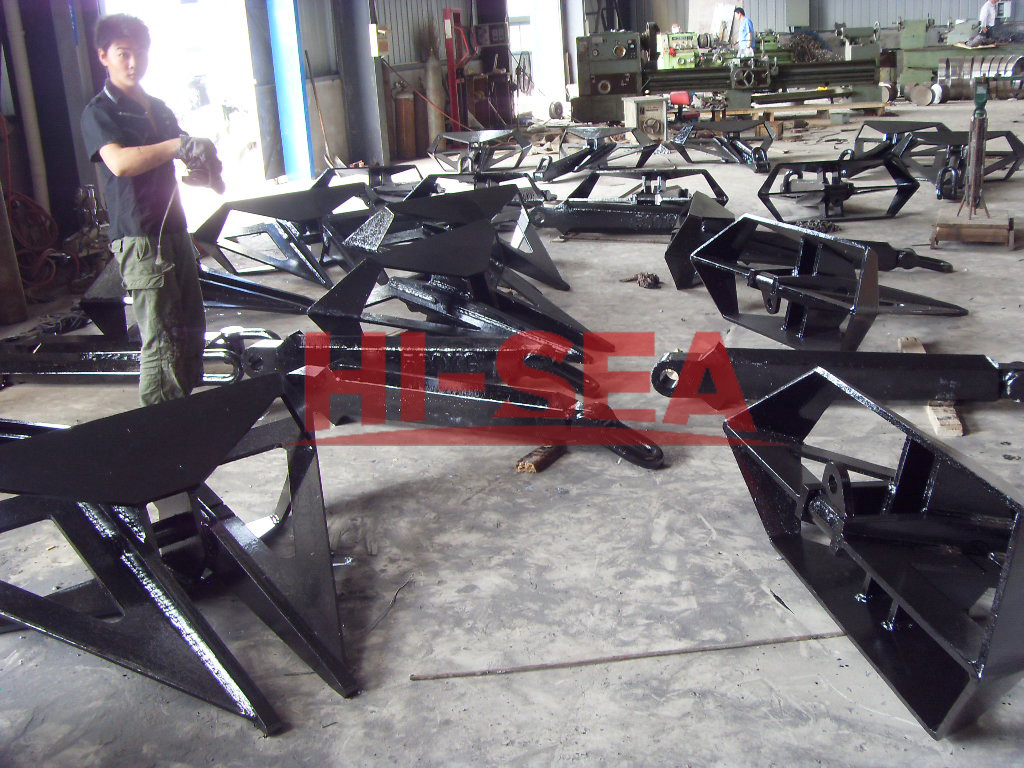

Steel Plate Welded Anchor

Steel Plate Welded Anchor

1. Easy dismantling for transport purposes.
2. Proven superior high holding power capacity.
3. Excellent efficiency (weight / holding power)
4. Open construction for smooth and good penetration in different kinds of soil
5. No rotation, which means no decrease of holding capacity and no dragging of the anchor

Product Detail

1.Material:steel plate

2.Weight:100kg-15000kg

3.Classification Society Certificate:CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA

4.Surface treatment:Black bitumen paint, galvanized, anti-rusting paint or customized

Steel Plate Welded Types

1. Delta Type Anchor

2. D-Hone Anchor

3. Type TW Pool Anchor

4. Type N Pool Anchor

7. Danforth Steel Plate Anchor

6.Steel Plate Composite Anchor


Steel Plate Welded Anchor

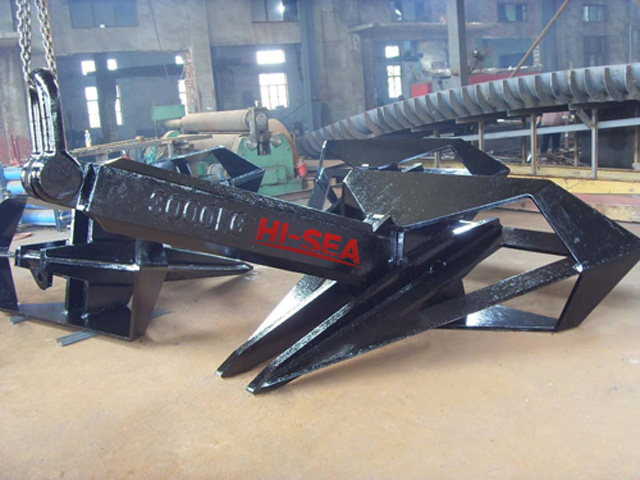

Triangular Anchor

Steel Plate Welded Anchor

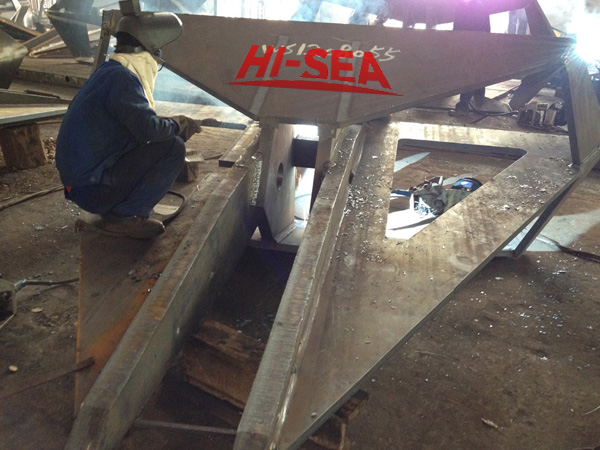

Steel Plate Anchor Productive Process

Steel Plate Welded Anchor

Steel Plate Anchor Productive Process

Steel Plate Welded Anchor

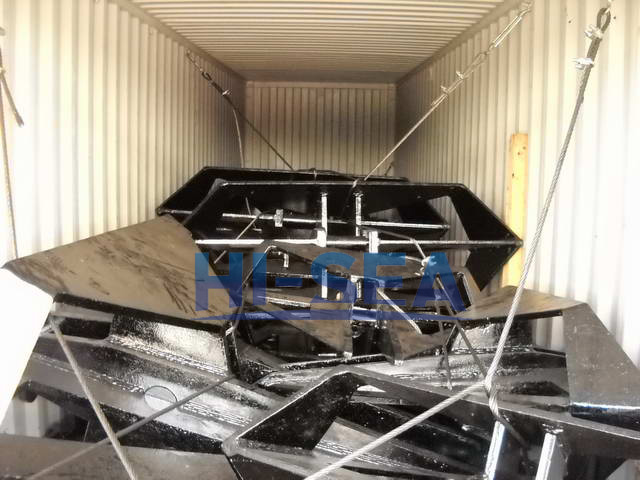

Steel Plate Anchor load and transport

Steel Plate Welded Anchor

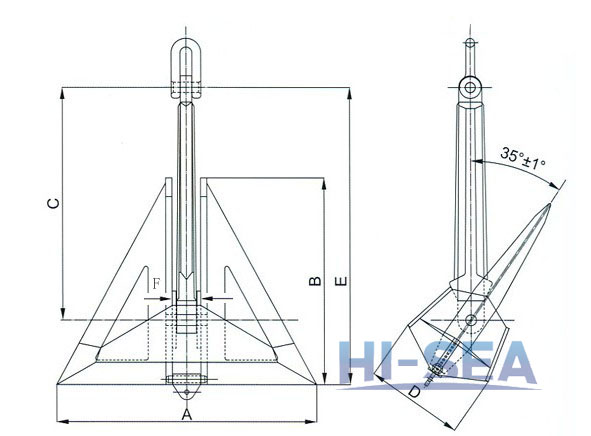

Steel Plate Triangular Anchor Process Drawing



Steel Plate Triangular Anchor Specifications:

Nominal Weight (kg) Dimensions (mm)
A B C D E F
300 1,200 960 1,080 457 1,380 ¦µ45
500 1,500 1,200 1,350 571 1,725 ¦µ50
1,000 1,875 1,500 1,686 714 2,155 ¦µ62
1,080 1,915 1,530 1,686 722 2,200 ¦µ62
2,000 2,363 1,890 2,124 900 2,715 ¦µ74
3,000 2,700 2,160 2,430 1,028 3,105 ¦µ90
4,000 2,975 2,380 2,676 1,133 3,420 ¦µ100
5,000 3,250 2,600 2,922 1,238 3,735 ¦µ110
7,000 3,575 2,860 3,216 1,360 4,110 ¦µ117
9,000 3,950 3,160 3,555 1,504 4,543 ¦µ135
10,000 4,100 3,280 3,690 1,561 4,715 ¦µ140
12,000 4,490 3,575 4,030 1,695 5,320 ¦µ145
13,500 4,670 3,720 4,195 1,765 5,535 ¦µ150
15,000 4,845 3,875 4,355 1,830 5,735 ¦µ150
18,000 5,140 4,080 4,610 1,940 6,080 ¦µ160
20,000 5,330 4,260 4,790 2,010 6,310 ¦µ170
22,500 5,490 4,360 4,905 2,060 6,470 ¦µ180
25,000 5,740 4,590 5,106 2,165 6,795 ¦µ180
27,500 5,980 4,785 5,385 2,245 7,095 ¦µ180

Please contact us for more information!
