Marine Japan Anchor

Marine Japan Anchor

Marine Japan anchor has two types: Japan Stock Anchor and Japan Stockless Anchor. They’re used on inland ships and cargo ships and other types of vessels. All our anchors are approved by the Classification Societies. If your’re interested in our products, please feel free to contact us.

Japan Stock Anchor

1. Type: Japan stock anchor

2. Material: steel

3. Nominal Weight: 500kg to 8000kg

4. Process: forging

5. Surface: black paint, galvanized or customed

6. Certificate: ABS, LR, BV, NK, DNV, RINA,CCS,GL,KR,RS,IRS etc.

7. Application: inland vessels, cargo ships etc.

Major characteristics
1.Simple construction;
2.Good stability
3.Proven superior high holding power capacity
4.Collect inconvenience
5.Mainly used: yacht, sail boat, or the stern anchor of cargo ship

Marine Japan Anchor

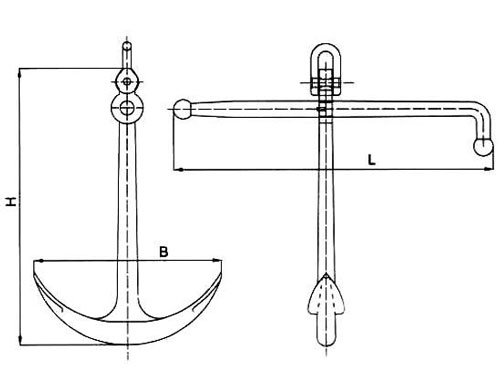

Japan Stock Anchor Drawing

Nominal Weight(kg)	Size(mm)
Nominal Weight(kg)	H	L	B
500	2000	2065	1350
700	2260	2335	1510
750	2310	2342	1560
1000	2550	2637	1700
1500	2890	2960	1950
2000	3160	3272	2140
3000	3630	3555	2650
3500	3810	3820	2570
4000	4000	4135	2920
5000	4310	4470	3140
6000	4580	4740	3330
7000	4820	4980	3530
8000	5040	5215	3620

Japan Stockless Anchor

Japan stockless anchor is mainly produced by the material ZG200-400 or ZG230-450 based on the Japanese standard JIS F3301-1980. Japan stockless anchor’s two flukes can engage in the soil simultaneously while working. It has the features of good stability, great adaptability to a large variety of soil and easy collection.

Product Detail
1. Type: Japan Stockless Anchor

2. Material: Casting Steel
3. Nominal Weight: 180kg to 46000kg

4. Certificate: ABS, LR, BV, NK, DNV, RINA,CCS,GL,KR,RS,IRS etc.

5. Surface: black paint, galvanized or customed

6. Application: inland vessel, cargo ship etc.

Marine Japan Anchor

JIS Stockless Anchor Drawing

Specification

Nominal Weight (KG)	Size(mm)
Nominal Weight (KG)	L	L1	L2	H	H1	H2
180	650	459	910	111	480	280
240	720	510	1010	122	530	310
300	770	540	1080	131	570	331
360	820	580	1150	139	610	353
420	860	610	1200	146	640	370
480	900	640	1260	153	670	387
570	950	670	1330	162	700	408
660	1000	710	1440	170	740	430
780	1060	750	180	180	780	456
900	1110	780	1550	189	820	477
1020	1160	820	1620	197	860	500
1140	1200	850	1680	204	890	520
1290	1250	880	1750	212	920	540
1440	1300	920	1820	221	960	560
1590	1340	950	1880	228	990	580

Note: the above specifications of Japan stockless anchor is only a partial list. For more inforamtion, please feel free to contact us.

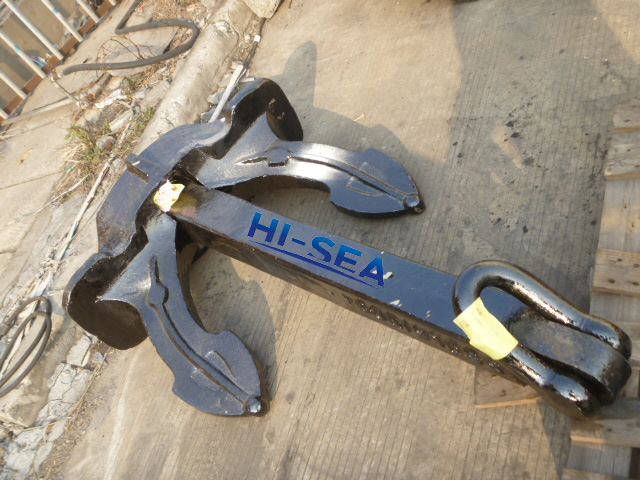

JIS Type Stockless Anchor

Marine Japan Anchor

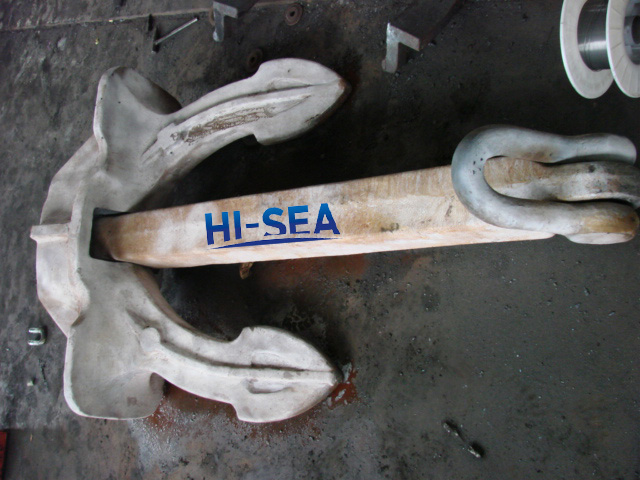

JIS Stockless Anchor Production

JIS Stockless Anchor

How to order Anchor?

1. Nominal Weight

2. Class Certificate

3. Quantity

Any interest please feel free to contact us by e-mail or phone call.
