Welding Marine Anchor
We produce marine anchors since 1996, include stockless bower anchor, stock anchor, offshore anchors, etc. and our anchors have been approved by ABS, LR, BV, NK, DNV, GL, NK, KR, IRS, CCS Ceritificate. Good quality, Punctual shipment and Good service will make your business goes smoothly, we would be your reliable partner in China.
Major advantages of welding marine anchor:
1. Easy dismantling for transport purposes.
2. Proven superior high holding power capacity.
3. Excellent efficiency (weight / holding power)
4. Open construction for smooth and good penetration in different kinds of soil
5. No rotation, which means no decrease of holding capacity and no dragging of the anchor
300KGS-25000KGS Welding Marine Anchor
1.Material: Steel Plate
2.Weight: 300KGS-25000KGS
3.Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS

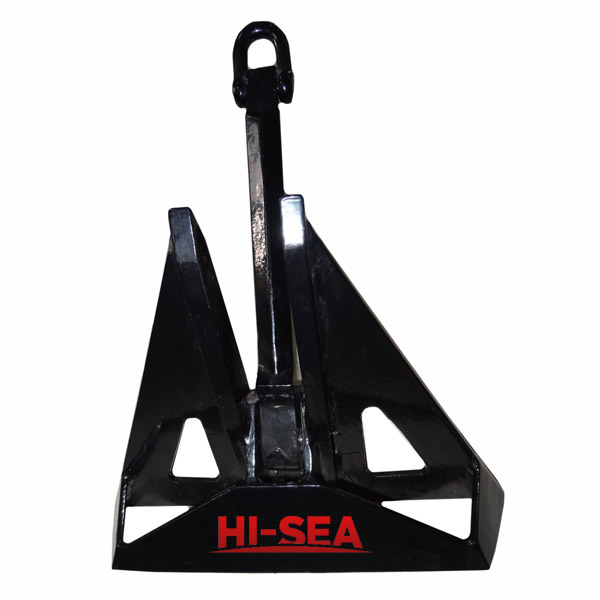

Welding Marine Anchor
Welding Marine Anchor Process Drawing
Specifications:
Nominal Weight (kg) | Dimensions (mm) | |||||
A | B | C | D | E | F | |
300 | 1,200 | 960 | 1,080 | 457 | 1,380 | ¦µ45 |
500 | 1,500 | 1,200 | 1,350 | 571 | 1,725 | ¦µ50 |
1,000 | 1,875 | 1,500 | 1,686 | 714 | 2,155 | ¦µ62 |
1,080 | 1,915 | 1,530 | 1,686 | 722 | 2,200 | ¦µ62 |
2,000 | 2,363 | 1,890 | 2,124 | 900 | 2,715 | ¦µ74 |
3,000 | 2,700 | 2,160 | 2,430 | 1,028 | 3,105 | ¦µ90 |
4,000 | 2,975 | 2,380 | 2,676 | 1,133 | 3,420 | ¦µ100 |
5,000 | 3,250 | 2,600 | 2,922 | 1,238 | 3,735 | ¦µ110 |
7,000 | 3,575 | 2,860 | 3,216 | 1,360 | 4,110 | ¦µ117 |
9,000 | 3,950 | 3,160 | 3,555 | 1,504 | 4,543 | ¦µ135 |
10,000 | 4,100 | 3,280 | 3,690 | 1,561 | 4,715 | ¦µ140 |
12,000 | 4,490 | 3,575 | 4,030 | 1,695 | 5,320 | ¦µ145 |
13,500 | 4,670 | 3,720 | 4,195 | 1,765 | 5,535 | ¦µ150 |
15,000 | 4,845 | 3,875 | 4,355 | 1,830 | 5,735 | ¦µ150 |
18,000 | 5,140 | 4,080 | 4,610 | 1,940 | 6,080 | ¦µ160 |
20,000 | 5,330 | 4,260 | 4,790 | 2,010 | 6,310 | ¦µ170 |
22,500 | 5,490 | 4,360 | 4,905 | 2,060 | 6,470 | ¦µ180 |
25,000 | 5,740 | 4,590 | 5,106 | 2,165 | 6,795 | ¦µ180 |
27,500 | 5,980 | 4,785 | 5,385 | 2,245 | 7,095 | ¦µ180 |
How to Order?
1. Weight
2. Quantity
3. Society Classficiation Certificate
