D-Hone Anchor

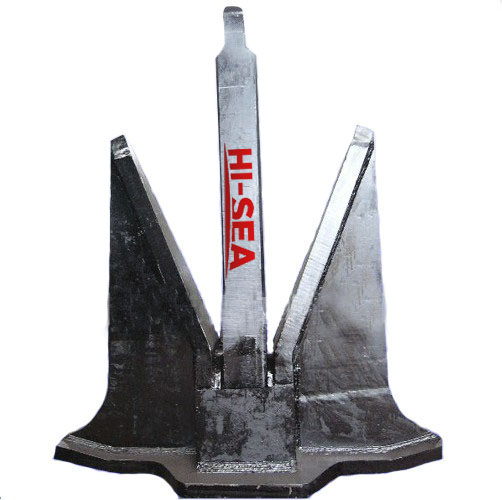

This is the D¡¯HONE anchor, a stockless High Holding Power anchor. High Holding Power means you can reduce 25% of the weight that would normally be required for conventional anchors.
It is a very strong anchor and especially suitable for pockets.
Anchor is fully balanced. Every D¡¯HONE anchor is manufactured by hand, at our production facility in China.
Product Detail
1.Material: ZG200-400C
2.Weight: 500KGS-20000KGS
3.Certificate: ABS, LR, BV, NK, DNV, GL, IRS, CCS

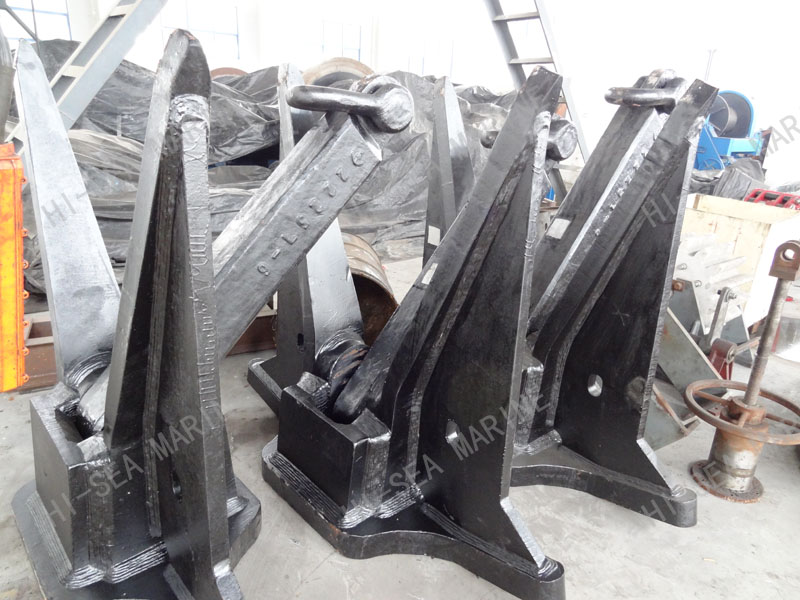

D-Hone Anchor Warehouse

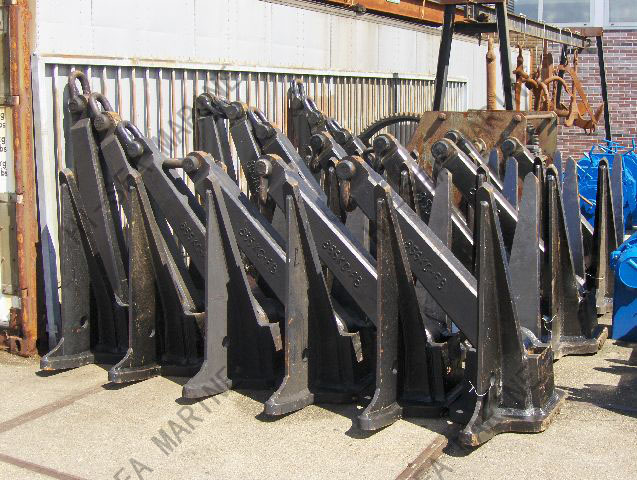

D-Hone Anchor Warehouse

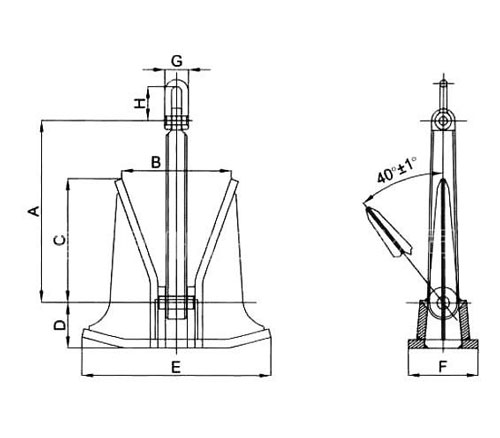

D-Hone Anchor Drawing
Specification
Nominal Weight(kg) |
Size(mm) |
Proof Test(KN) |
|||||||
A |
B |
C |
D |
E |
F |
G |
H |
||
200 |
789 |
495 |
566 |
182 |
847 |
313 |
110 |
145 |
61 |
300 |
900 |
566 |
648 |
207 |
968 |
358 |
136 |
175 |
80 |
400 |
994 |
624 |
710 |
231 |
1065 |
395 |
151 |
192 |
98 |
500 |
1070 |
670 |
765 |
250 |
1150 |
425 |
163 |
215 |
116 |
550 |
1105 |
693 |
790 |
257 |
1185 |
438 |
163 |
215 |
125 |
600 |
1138 |
714 |
815 |
263 |
1220 |
452 |
163 |
215 |
132 |
650 |
1170 |
733 |
835 |
275 |
1255 |
465 |
174 |
235 |
140 |
700 |
1200 |
750 |
860 |
275 |
1285 |
475 |
174 |
235 |
149 |
... |
... |
... |
... |
... |
... |
... |
... |
... |
... |
1900 |
1670 |
1050 |
1190 |
390 |
1790 |
660 |
236 |
310 |
335 |
2000 |
1700 |
1065 |
1220 |
390 |
1825 |
675 |
236 |
310 |
349 |
2200 |
1750 |
1100 |
1250 |
410 |
1880 |
695 |
256 |
340 |
376 |
2400 |
1800 |
1130 |
1290 |
420 |
1940 |
717 |
256 |
340 |
401 |
2600 |
1855 |
1160 |
1330 |
420 |
1990 |
737 |
279 |
380 |
427 |
... |
... |
... |
... |
... |
... |
... |
... |
... |
... |
5800 |
2430 |
1525 |
1745 |
560 |
2610 |
965 |
343 |
450 |
721 |
6000 |
2484 |
1555 |
1780 |
575 |
2665 |
986 |
370 |
480 |
735 |
6500 |
2520 |
1580 |
1810 |
580 |
2710 |
1002 |
370 |
480 |
767 |
7000 |
2580 |
1610 |
1840 |
595 |
2755 |
1020 |
370 |
480 |
804 |
7400 |
2635 |
1650 |
1890 |
605 |
2825 |
1045 |
377 |
500 |
832 |
8000 |
2686 |
1685 |
1930 |
615 |
2880 |
1065 |
391 |
540 |
877 |
... |
... |
... |
... |
... |
... |
... |
... |
... |
... |
13500 |
3200 |
2010 |
2290 |
740 |
3435 |
1270 |
468 |
640 |
1180 |
14000 |
3260 |
2045 |
2330 |
760 |
3495 |
1294 |
483 |
660 |
1210 |
15500 |
3360 |
2100 |
2410 |
770 |
3600 |
1330 |
498 |
680 |
1270 |
Note: the above chart only lists partial specifcations of D-Hone Anchor. For more information, please feel free to contact us.
