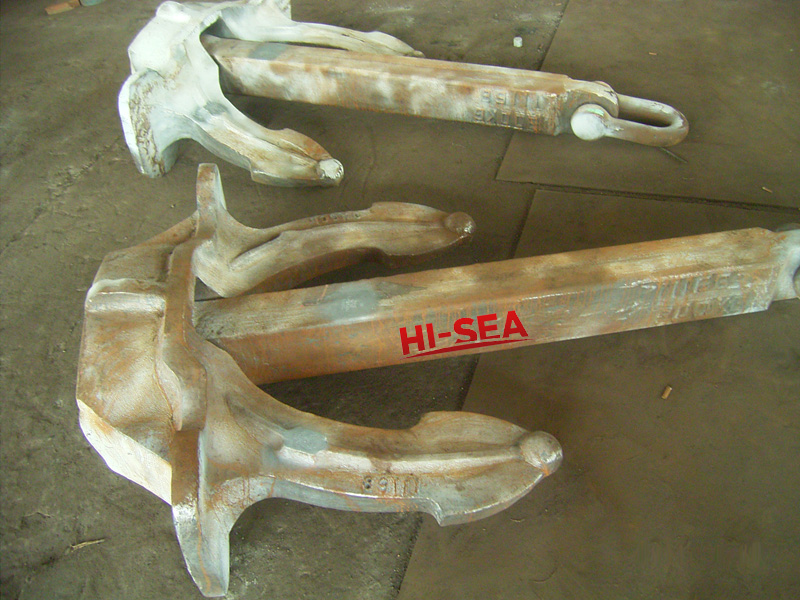

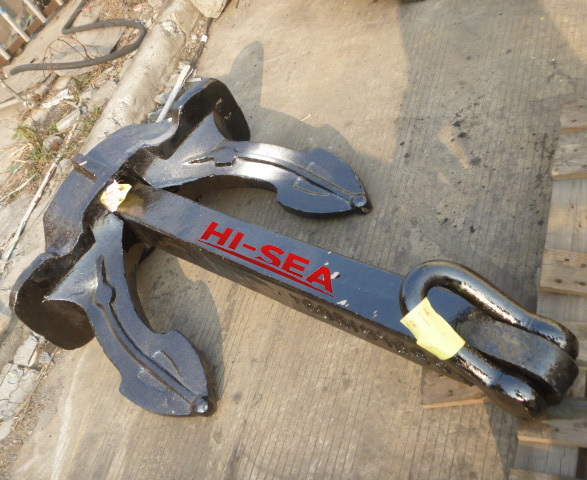

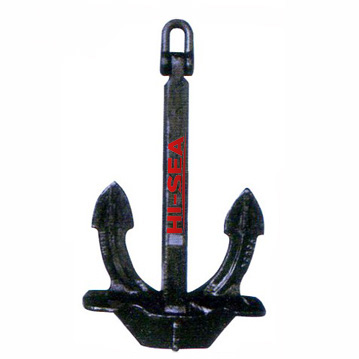

Japan Stockless Anchor
Japan stockless anchor is mainly produced by the material ZG200-400 or ZG230-450 based on the Japanese standard JIS F3301-1980. Japan stockless anchor¡¯s two flukes can engage in the soil simultaneously while working. It has the features of good stability, great adaptability to a large variety of soil and easy collection.
Product Detail
1. Type: Japan Stockless Anchor
2. Material: Casting Steel
3. Nominal Weight: 180kg to 46000kg
4. Certificate: ABS, LR, BV, NK, DNV, RINA,CCS,GL,KR,RS,IRS etc.
5. Surface: black paint, galvanized or customed
6. Application: inland vessel, cargo ship etc.
JIS Stockless Anchor Drawing
Specification
Nominal Weight |
Size(mm) |
|||||
L |
L1 |
L2 |
H |
H1 |
H2 |
|
180 |
650 |
459 |
910 |
111 |
480 |
280 |
240 |
720 |
510 |
1010 |
122 |
530 |
310 |
300 |
770 |
540 |
1080 |
131 |
570 |
331 |
360 |
820 |
580 |
1150 |
139 |
610 |
353 |
420 |
860 |
610 |
1200 |
146 |
640 |
370 |
480 |
900 |
640 |
1260 |
153 |
670 |
387 |
570 |
950 |
670 |
1330 |
162 |
700 |
408 |
660 |
1000 |
710 |
1440 |
170 |
740 |
430 |
780 |
1060 |
750 |
180 |
180 |
780 |
456 |
900 |
1110 |
780 |
1550 |
189 |
820 |
477 |
1020 |
1160 |
820 |
1620 |
197 |
860 |
500 |
1140 |
1200 |
850 |
1680 |
204 |
890 |
520 |
1290 |
1250 |
880 |
1750 |
212 |
920 |
540 |
1440 |
1300 |
920 |
1820 |
221 |
960 |
560 |
1590 |
1340 |
950 |
1880 |
228 |
990 |
580 |
1740 |
1380 |
980 |
1930 |
235 |
1020 |
600 |
1920 |
1430 |
1010 |
2000 |
243 |
1060 |
620 |
2100 |
1470 |
1040 |
2060 |
250 |
1090 |
640 |
2280 |
1510 |
1070 |
2110 |
257 |
1120 |
650 |
2460 |
1550 |
1100 |
2170 |
264 |
1150 |
670 |
2640 |
1590 |
1120 |
2230 |
270 |
1180 |
690 |
2850 |
1630 |
1150 |
2280 |
277 |
1210 |
700 |
3060 |
1670 |
1180 |
2340 |
284 |
12140 |
720 |
3300 |
1710 |
1210 |
2390 |
291 |
1270 |
740 |
3540 |
1750 |
1240 |
2450 |
298 |
1290 |
750 |
3780 |
1790 |
1260 |
2510 |
304 |
1320 |
770 |
4050 |
1830 |
1290 |
2560 |
311 |
1350 |
790 |
4320 |
1870 |
1320 |
2620 |
318 |
1380 |
800 |
4590 |
1910 |
1350 |
2670 |
325 |
1410 |
820 |
4890 |
1950 |
1380 |
2730 |
332 |
1440 |
840 |
5250 |
2000 |
1410 |
2800 |
340 |
1480 |
860 |
5610 |
2040 |
1440 |
2860 |
347 |
1510 |
880 |
6000 |
2090 |
1480 |
2930 |
355 |
1540 |
900 |
6450 |
2140 |
1510 |
3000 |
364 |
1580 |
920 |
6900 |
2190 |
1550 |
3070 |
372 |
1620 |
940 |
7350 |
2260 |
1600 |
3140 |
380 |
1660 |
960 |
7800 |
2280 |
1610 |
3190 |
388 |
1680 |
980 |
8300 |
2330 |
1650 |
3260 |
396 |
1720 |
1000 |
8700 |
2380 |
1670 |
3320 |
403 |
1750 |
1020 |
9300 |
2420 |
1710 |
3390 |
411 |
1790 |
1040 |
9900 |
2470 |
1740 |
3460 |
420 |
1820 |
1060 |
10500 |
2540 |
1800 |
3530 |
430 |
1880 |
1090 |
11100 |
2540 |
1800 |
3600 |
430 |
1880 |
1090 |
11700 |
2630 |
1855 |
3650 |
445 |
1945 |
1130 |
12300 |
2630 |
1855 |
3710 |
445 |
1945 |
1130 |
12900 |
2670 |
1885 |
3770 |
453 |
1975 |
1170 |
13500 |
2670 |
1885 |
3840 |
453 |
1975 |
1170 |
14100 |
2780 |
1960 |
3890 |
473 |
2050 |
1200 |
14700 |
2820 |
1990 |
3950 |
479 |
2080 |
1210 |
15400 |
2860 |
2020 |
4000 |
486 |
2110 |
1230 |
16100 |
2900 |
2050 |
4060 |
493 |
2140 |
1250 |
16900 |
2950 |
2080 |
4130 |
500 |
2180 |
1270 |
17800 |
3000 |
2120 |
4200 |
510 |
2210 |
1290 |
18800 |
3060 |
2160 |
4280 |
520 |
2260 |
1320 |
20000 |
3120 |
2200 |
4370 |
530 |
2300 |
1340 |
21500 |
3200 |
2260 |
4480 |
540 |
2360 |
1380 |
23000 |
3270 |
2310 |
4580 |
560 |
2140 |
1410 |
24500 |
3340 |
2360 |
4680 |
570 |
2460 |
1440 |
26000 |
3410 |
2410 |
4770 |
580 |
2520 |
1470 |
27500 |
3470 |
2450 |
4860 |
590 |
2560 |
1490 |
29000 |
3530 |
2490 |
4840 |
600 |
2610 |
1520 |
31000 |
3610 |
2550 |
5050 |
640 |
2660 |
1550 |
33000 |
3690 |
2610 |
5170 |
630 |
2720 |
1590 |
35500 |
3780 |
2670 |
5290 |
640 |
2790 |
1630 |
38500 |
3880 |
2740 |
5430 |
660 |
2860 |
1670 |
42000 |
4000 |
2820 |
5600 |
680 |
2950 |
1720 |
46000 |
4120 |
2910 |
5770 |
700 |
3040 |
1770 |
