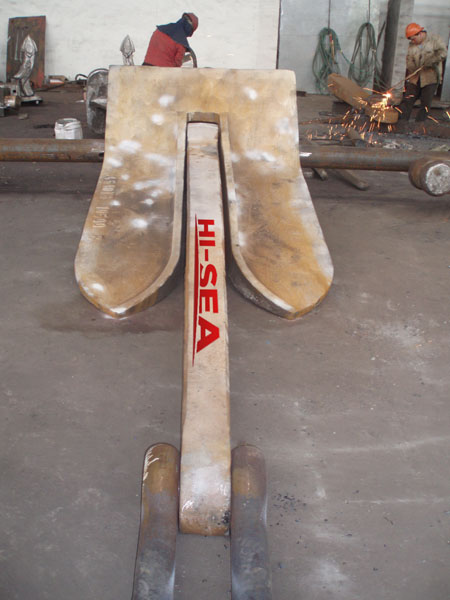

Moorfast Anchor
The moorfast anchor is designed with enlarged flukes and tripping for quick and stable penetration. Head and shank are manufactured of cast steel. The shock can be made of the same material or rolled bar stock, the material used for forging the shackle body. The shackle pin is alloy-steel rolled bar stock.
Product Details
1.Weight: 454KGS-27216KGS
2.Material: Cast steel
3.Certificate: ABS, LR, BV, GL, DNV, NK, IRS, CCS

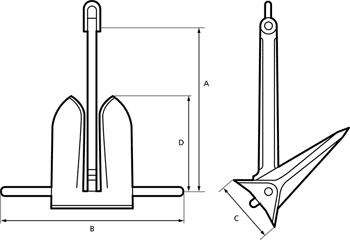

Moorfast Anchor Process Drawing
Specifications:
Naminal Weight(kg) |
Size(mm) | |||
A | B | C | D | |
454 | 1549 | 1905 | 483 | 940 |
2722 | 2565 | 3632 | 787 | 1549 |
4536 | 3327 | 3988 | 1041 | 2032 |
5443 | 3531 | 4242 | 1092 | 2159 |
7257 | 3886 | 4750 | 1219 | 2388 |
9072 | 4166 | 4978 | 1295 | 2591 |
13608 | 4801 | 5512 | 1499 | 2997 |
18144 | 5436 | 6299 | 1600 | 3226 |
22680 | 5639 | 6528 | 1676 | 3353 |
27216 | 5893 | 6883 | 1778 | 3556 |
Please Contact us for more information.
