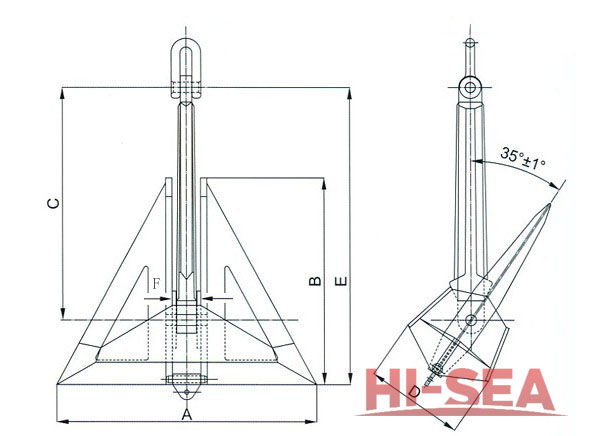

HHP Delta Type Anchor

Nominal Weight (kg)

Dimensions (mm)

A

B

C

D

E

F

300

1,200

960

1,080

457

1,380

Φ45

500

1,500

1,200

1,350

571

1,725

Φ50

1,000

1,875

1,500

1,686

714

2,155

Φ62

1,080

1,915

1,530

1,686

722

2,200

Φ62

2,000

2,363

1,890

2,124

900

2,715

Φ74

3,000

2,700

2,160

2,430

1,028

3,105

Φ90

4,000

2,975

2,380

2,676

1,133

3,420

Φ100

5,000

3,250

2,600

2,922

1,238

3,735

Φ110

7,000

3,575

2,860

3,216

1,360

4,110

Φ117

9,000

3,950

3,160

3,555

1,504

4,543

Φ135

10,000

4,100

3,280

3,690

1,561

4,715

Φ140

12,000

4,490

3,575

4,030

1,695

5,320

Φ145

13,500

4,670

3,720

4,195

1,765

5,535

Φ150

15,000

4,845

3,875

4,355

1,830

5,735

Φ150

18,000

5,140

4,080

4,610

1,940

6,080

Φ160

20,000

5,330

4,260

4,790

2,010

6,310

Φ170

22,500

5,490

4,360

4,905

2,060

6,470

Φ180

25,000

5,740

4,590

5,106

2,165

6,795

Φ180

27,500

5,980

4,785

5,385

2,245

7,095

Φ180
