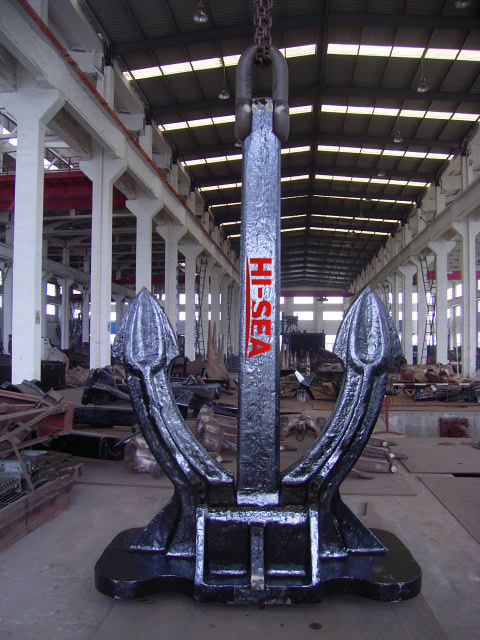

CB711-95 Spek Anchor
The Spek anchor is designed to fit in anchor pockets. In recent years these anchors have become one of the most commonly used stockless anchors on new buildings.These anchors are available in sizes from 100kg to 26000kg. CB711-95 Spek anchor is used as bow anchor for sailing ships and used as positioning working anchor for engineering ships.
Product Detail
1.Material: ZG200-400C
2.Weight: 100KGS-26000KGS
3.Certificate: ABS, LR, GL, DNV, NK, IRS, CCS
4.Surface Treatment: Black bitumen paint, anti-rusting paint or customized
5.Holding efficiency 6:1 to 9:1
6.Mainly used: large yachts, cruise vessels, container shippers

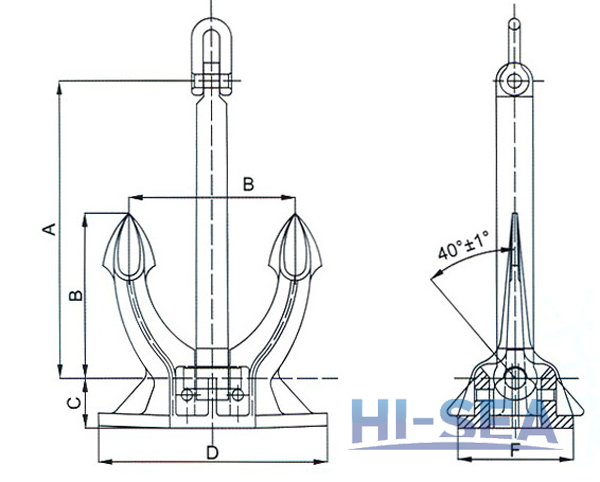

CB711-95 SPEK Anchor Process Drawing
Specification
Nominal Weight |
Size(mm) |
||||
A |
B |
C |
D |
F |
|
100 |
672 |
373 |
112 |
515 |
250 |
150 |
770 |
428 |
128 |
590 |
290 |
180 |
846 |
470 |
140 |
640 |
300 |
240 |
900 |
500 |
150 |
690 |
358 |
300 |
990 |
550 |
166 |
760 |
398 |
360 |
1065 |
600 |
180 |
828 |
431 |
420 |
1080 |
600 |
180 |
828 |
446 |
500 |
1170 |
650 |
196 |
900 |
446 |
570 |
1170 |
650 |
196 |
900 |
486 |
660 |
1260 |
700 |
210 |
962 |
486 |
780 |
1355 |
750 |
225 |
1032 |
547 |
900 |
1440 |
800 |
240 |
1100 |
573 |
1020 |
1530 |
850 |
252 |
1170 |
591 |
1140 |
1620 |
900 |
268 |
1240 |
620 |
1290 |
1710 |
900 |
268 |
1240 |
640 |
1440 |
1710 |
950 |
279 |
1300 |
671 |
1590 |
1710 |
950 |
279 |
1378 |
689 |
1740 |
1800 |
1000 |
300 |
1454 |
704 |
1920 |
1850 |
1050 |
312 |
1454 |
717 |
2100 |
1890 |
1050 |
312 |
1454 |
736 |
2280 |
2010 |
1050 |
312 |
1514 |
764 |
2460 |
2010 |
1100 |
324 |
1584 |
794 |
2640 |
2070 |
1150 |
352 |
1584 |
804 |
2850 |
2070 |
1150 |
352 |
1650 |
820 |
3060 |
2160 |
1200 |
360 |
1650 |
834 |
3300 |
2155 |
1200 |
360 |
1650 |
834 |
3540 |
2350 |
1200 |
360 |
1850 |
880 |
3780 |
2430 |
1350 |
393 |
1850 |
917 |
4050 |
2430 |
1350 |
393 |
1926 |
930 |
4320 |
2520 |
1400 |
413 |
1926 |
930 |
4590 |
2520 |
1400 |
413 |
1926 |
931 |
4890 |
2520 |
1400 |
413 |
2000 |
954 |
5250 |
2610 |
1450 |
414 |
2000 |
964 |
5610 |
2610 |
1450 |
414 |
2060 |
981 |
6000 |
2700 |
1500 |
446 |
2060 |
1006 |
6450 |
2700 |
1500 |
446 |
2138 |
1028 |
6900 |
2790 |
1550 |
456 |
2138 |
1034 |
7350 |
2790 |
1550 |
456 |
2138 |
1062 |
7800 |
2920 |
1550 |
456 |
2332 |
1126 |
8300 |
3060 |
1700 |
510 |
2332 |
1156 |
8700 |
3060 |
1700 |
510 |
2332 |
1169 |
9300 |
3060 |
1700 |
510 |
2332 |
1188 |
9900 |
1700 |
1700 |
510 |
2332 |
1188 |
10500 |
1770 |
1770 |
531 |
2440 |
1212 |
11100 |
1770 |
1770 |
531 |
2440 |
1237 |
11700 |
1770 |
1770 |
531 |
2440 |
1279 |
12300 |
1910 |
1910 |
573 |
2632 |
1279 |
12900 |
1910 |
1910 |
573 |
2632 |
1316 |
13500 |
1910 |
1910 |
573 |
2632 |
1353 |
14100 |
1910 |
1910 |
573 |
2632 |
1369 |
14700 |
2050 |
2050 |
615 |
2824 |
1369 |
15400 |
2050 |
2050 |
615 |
2824 |
1387 |
16100 |
2050 |
2050 |
615 |
2824 |
1387 |
16900 |
2120 |
2120 |
636 |
2922 |
1415 |
17800 |
2120 |
2120 |
636 |
2922 |
1431 |
18800 |
2190 |
2190 |
657 |
3018 |
1461 |
20000 |
2190 |
2190 |
657 |
3018 |
1493 |
26000 |
2360 |
2360 |
716 |
3258 |
1628 |

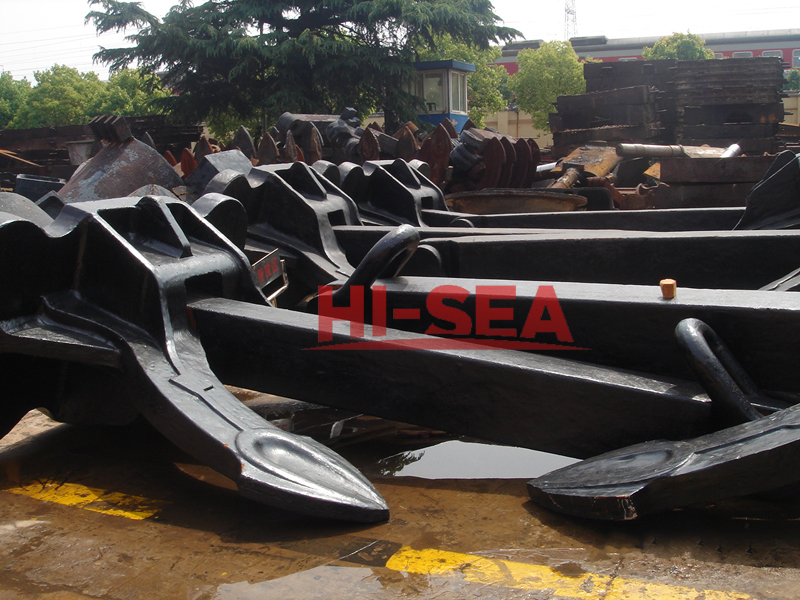

Spek anchor factory
