JIS 20K Ball Valve

JIS 20K Ball Valve

1. Flange Standard: JIS B2224-1976
2. Nominal Diameter: DN15-DN200
3. Nominal Presssure: 20K
4. Valve Body: WCB; CF8; ZG1Cr18Ni9Ti
5. Ball Body: 2Cr13; CF8; ZG1Cr18Ni9Ti; ZG1Cr18Ni12Mo2Ti; ZG00Cr17Ni14Mo2
6. Stem: 2Cr13; 304; 316; 316L
7. Seat: PTFE
8. Specification:

Nominal Diameter DN	L	W	H	D	C	t	n	h
15	150	100	62	95	70	14	4	15
20	152	120	68	100	75	16	4	15
25	165	160	75	125	90	16	4	19
32	178	180	85	135	100	18	4	19
40	190	200	95	140	105	18	4	19
50	216	250	110	155	120	18	8	19
65	241	300	130	175	140	20	8	19
80	283	400	155	200	160	22	8	23
100	305	500	180	225	185	24	8	23
125	381	600	250	270	225	26	8	25
150	403	800	275	305	260	28	12	25
200	502	1000	345	350	305	30	12	25

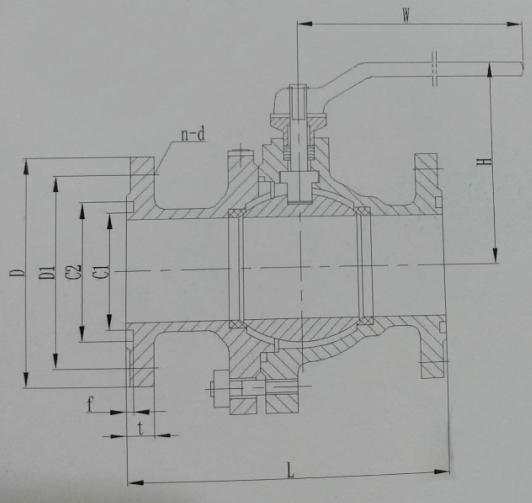

Drawing of JIS 20K Ball Valve

JIS 20K Ball Valve

9. Available Certificate:
