Marine Cast Bronze Gate Valve JIS F7367 5k
[Search Related Products]
Marine Cast Bronze Rising Stem Type Gate Valve JIS F7367 5K :
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:5k.
5.DN:15mm-40mm.
6.Main material:
-
Body/Bonnet:BC6;
-
Seat:BC6;
-
Stem:H62;
-
Disc:BC6.
7.Application:Oil piping and water piping.
8.Function:Such valves are used for on-off duty.
9.Specification of Marine Cast Bronze Rising Stem Type Gate Valve JIS F7367 5K :
| Code | Size | Face to Face (L) | Flange diam. (D) | Pitch (C) | Hole (nxd) | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) | |
| 750951 | 15 | 90 | 80 | 60 | 4XD12 | 2.29 |
| 750952 | 20 | 100 | 85 | 65 | 4XD12 | 2.98 |
| 750953 | 25 | 110 | 95 | 75 | 4XD12 | 4.10 |
| 750954 | 32 | 130 | 115 | 90 | 4XD15 | 5.79 |
| 750955 | 40 | 140 | 120 | 95 | 4XD15 | 7.78 |

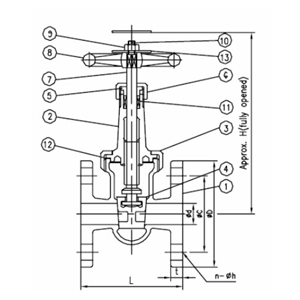

10.Drawing of Marine Cast Bronze Rising Stem Type Gate Valve JIS F7367 5K :
11.Certificate available:
