Marine Bronze Gate Valve JIS F7367 5K
[Search Related Products]
1. Brief Introduction:
Marine bronze gate valve is rising stem type gate valve.
2. Standard:
Design Standard: JIS F7367-1996
Test Standard: JIS 7400-1996
Flange Size as Per JIS B2220-5K
3. Inspection:
Hydraulic Test Pressure:
Body: 1.05 Mpa
Seat: 0.7 Mpa
4. Main Material:
|
Part Name |
Material Name |
Material Mark |
|
Body |
Bronze |
BC6 |
|
Bonnet |
Bronze |
BC6 |
|
Disc |
Bronze |
BC6 |
|
Stem |
Brass |
C3771BD |
|
Gasket |
Non-asbestos |
|

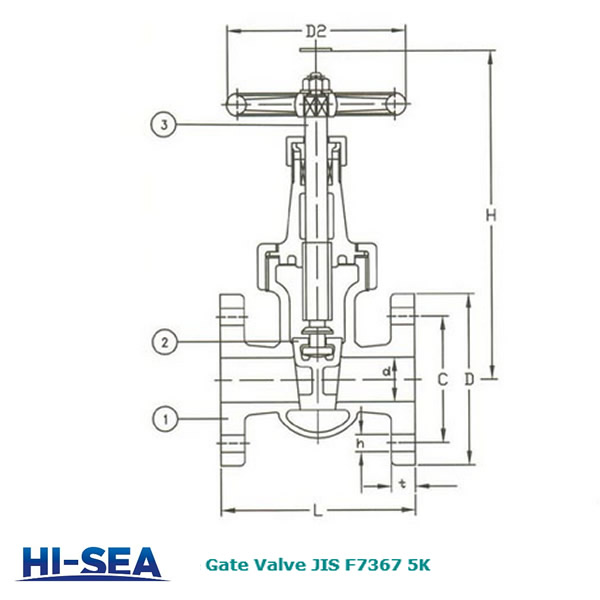

5. Marine Bronze Gate Valve JIS F7367 5K Main Data for Drawing (mm):
|
IMPA CODE |
Size |
L |
D |
C |
Number of Bolt Hole |
h |
t |
H |
D2 |
KG |
|
750951 |
15 |
90 |
80 |
60 |
4 |
12 |
9 |
175 |
80 |
2.29 |
|
750952 |
20 |
100 |
85 |
65 |
4 |
12 |
10 |
200 |
100 |
2.98 |
|
750953 |
25 |
110 |
95 |
75 |
4 |
12 |
10 |
220 |
125 |
4.1 |
|
750954 |
32 |
130 |
115 |
90 |
4 |
15 |
12 |
250 |
125 |
5.79 |
|
750955 |
40 |
140 |
120 |
95 |
4 |
15 |
12 |
290 |
140 |
7.78 |

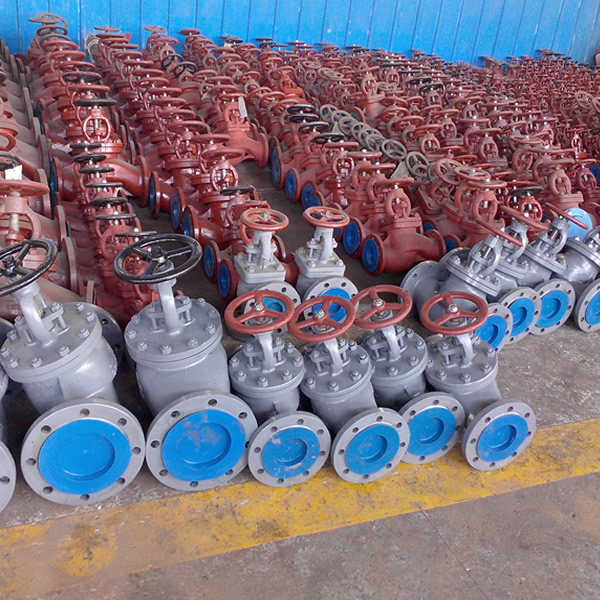

Marine Bronze Gate Valve JIS F7367 5K Factory:
