Marine Cast Iron Swing Check Valve JIS F7372 5K
[Search Related Products]
Marine Cast Iron Swing Check Valve JIS F7372 5K :
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:5k.
5.DN:50mm-250mm.
6.Main material:
-
Body/Bonnet:HT200;
-
Seat:BC6;
-
Disc:BC6.
7.Application:Oil piping and water piping.
8.Function:Such valves are used for preventing refluence.
9.Specification of Marine Cast Iron Swing Check Valve JIS F7372 5K :
| Size | L | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 50 | 190 | 130 | 105 | 4-15 | 16 | 9.06 |
| 65 | 220 | 155 | 130 | 4-15 | 18 | 13.90 |
| 80 | 250 | 180 | 145 | 4-19 | 18 | 19.10 |
| 100 | 280 | 200 | 165 | 8-19 | 20 | 27.10 |
| 125 | 330 | 235 | 200 | 8-19 | 20 | 39.0 |
| 150 | 380 | 265 | 230 | 8-19 | 22 | 53.70 |
| 200 | 460 | 320 | 280 | 8-23 | 24 | 94.40 |
| 250 | 550 | 385 | 345 | 12-23 | 26 | 150.00 |

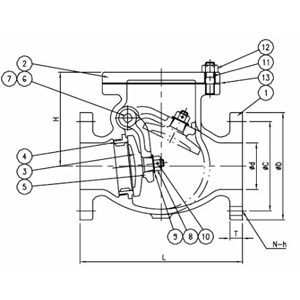

10.Drawing of Marine Cast Iron Swing Check Valve JIS F7372 5K :
11.Certificate available:
