Marine Cast Bronze Lift Check Angle Valve JIS 7416 5k
[Back][Search Related Products]
Marine Cast Bronze Lift Check Angle Valve JIS 7416 5k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN；5k.
5.DN:15mm-40mm.
6.Main material:
- Body/Bonnet:BC6;
- Seat:BC6;
- Disc:BC6.
7.Application:Oil piping,water piping and gas piping.
8.Function:Such valves are used for preventing refluence.
9.Specification of Marine Cast Bronze Lift Check Angle Valve JIS 7416 5k:
|
IMPA |
DN/mm |
Face to face/L(mm) |
Flange diam./D(mm) |
Flange pitch/C(mm) |
Flange hole/n*d(mm) |
Weight/kg |
|
751346 |
15 |
55 |
80 |
60 |
4xΦ12 |
1.57 |
|
751347 |
20 |
60 |
85 |
65 |
4xΦ12 |
2.07 |
|
751348 |
25 |
65 |
95 |
75 |
4xΦ12 |
2.65 |
|
751349 |
32 |
80 |
115 |
90 |
4xΦ15 |
3.68 |
|
751350 |
40 |
85 |
120 |
95 |
4xΦ15 |
4.95 |

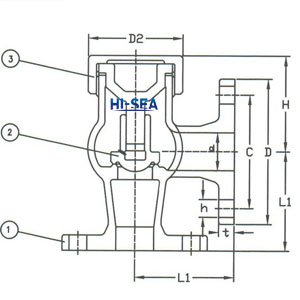

10.Drawing of Marine Cast Bronze Lift Check Angle Valve JIS 7416 5k:
11.Certificate available:
