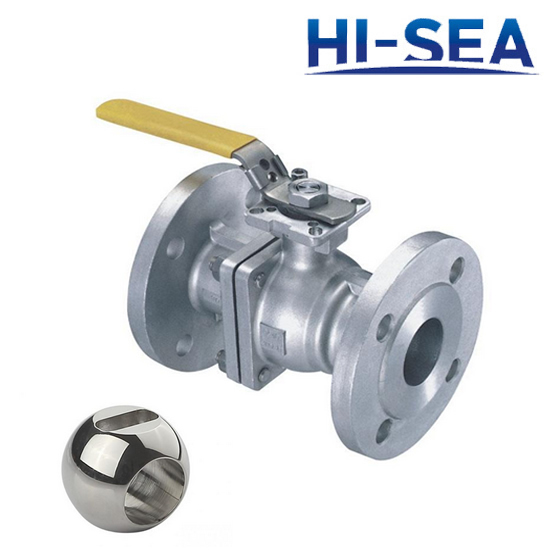

JIS 40K Ball Valve

JIS 40K Ball Valve

1. Flange Standard: JIS B2216-1976
2. Nominal Diameter: DN15-DN80
3. Nominal Presssure: 40K
4. Valve Body: CF8; ZG1Cr18Ni9Ti
5. Ball Body: CF8; ZG1Cr18Ni9Ti; ZG1Cr18Ni12Mo2Ti; ZG00Cr17Ni14Mo2
6. Stem: 304; 316; 316L
7. Seat: PTFE
8. Specification:

Nominal Diameter DN	L	W	H	D	C	C1	C2	f	t	n	h
15	165	180	70	115	80	31	43	5	19	4	19
20	190	200	75	120	85	37	51	5	19	4	19
25	216	200	85	130	95	44	61	5	21	4	19
32	229	250	100	140	105	54	71	5	22	4	19
40	241	300	115	160	120	59	76	5	22	4	23
50	292	350	130	165	130	69	91	5	24	8	23
65	330	400	155	200	160	89	111	5	28	8	23
80	356	450	180	210	170	99	121	5	30	8	23

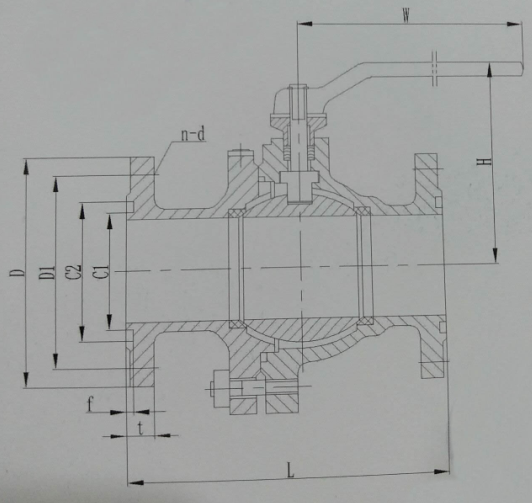

Drawing of JIS 40K Ball Valve:

JIS 40K Ball Valve

9. Available Certificate:
