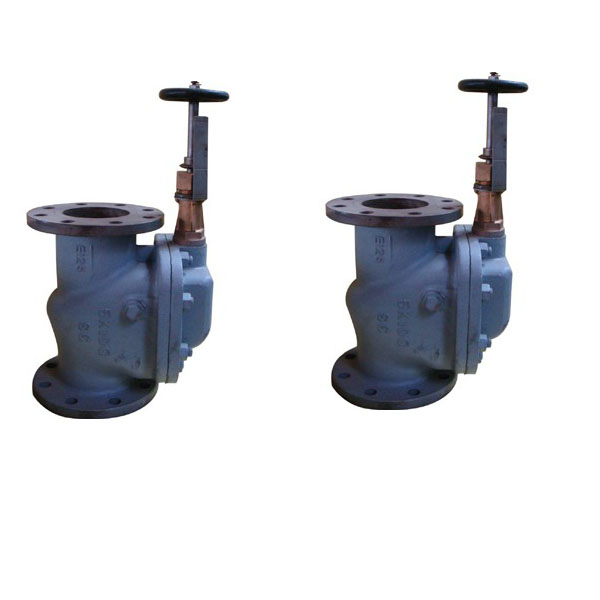

Marine Cast Steel Down Storm Valve JIS F3060 5K

[Search Related Products]

Marine Cast Steel Down Storm Valve JIS F3060 5K

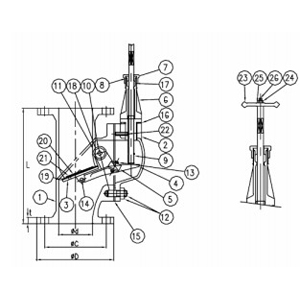

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	210	130	105	4-15	14	131	14.7
65	240	155	130	4-15	14	141	21.3
80	260	180	145	4-19	14	155	27.7
100	280	200	165	8-19	16	171	40.8
125	330	235	200	8-19	16	195	57.6
150	360	265	230	8-19	18	212	80.3

Marine Cast Steel Down Storm Valve JIS F3060 5K

1. Design standard: JIS F 3059

2. Body material: cast steel

3. Pressure: 5K

4. DN: Ф50-150mm

5. Fce to face(L): 210-360mm

6. Weight: 11.5 kg to 51.6 kg

7. Handrail: with or without handrail
