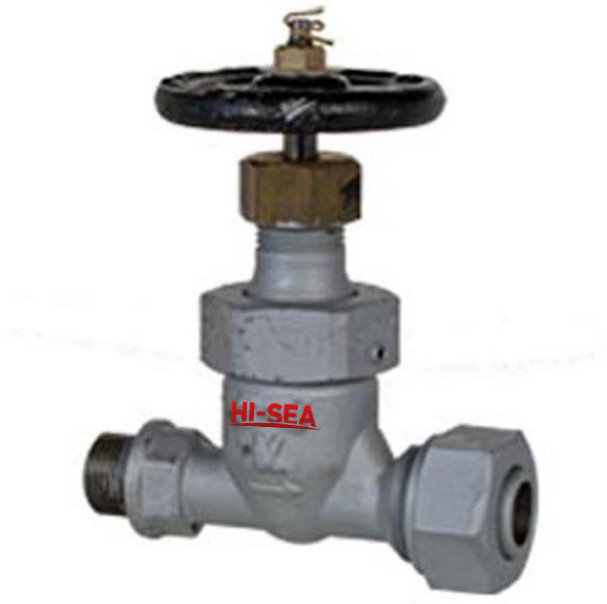

Marine Forged Steel Globe Valve JIS F7329 40k

Marine Forged Steel Globe Valve JIS F7329 40k:

1.Test standard: JISF7400.

2.End standard: JISB2220.

3.End type: F/S/U.

4.Pressure: 40k.

5.DN:

  • F type: 15mm-25mm;
  • S type: 6mm and 10mm;
  • U type: 6mm and 10mm.

6.Main material:

  • Body/Bonnet: SC49;
  • Stem: SUS403;
  • Disc: SUS402JI.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Forged Steel Globe Valve JIS F7329 40k:

Marine Forged Steel Globe Valve JIS F7329 40k

Marine Forged Steel Globe Valve JIS F7329 40k(F type)

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

150

115

80

4x¦µ19

5.2

20

170

120

85

4x¦µ19

6.8

25

200

130

95

4x¦µ19

8.9

Marine Forged Steel Globe Valve JIS F7329 40k£¨S type)

DN/mm

L1/mm

L2/mm

L3/mm

K/mm

B2/mm

D3/mm

Weight/kg

6

42

38

51

12

30

M20x1.5

1.6

10

51

45

63

16

41

M42x2.0

2.0

Marine Forged Steel Globe Valve JIS F7329 40k(U type)

DN/mm

L/mm

L1/mm

B2/mm

Weight/kg

6

84

102

30

1.8

10

102

126

41

2.3

10.Drawing of Marine Forged Steel Globe Valve JIS F7329 40k:

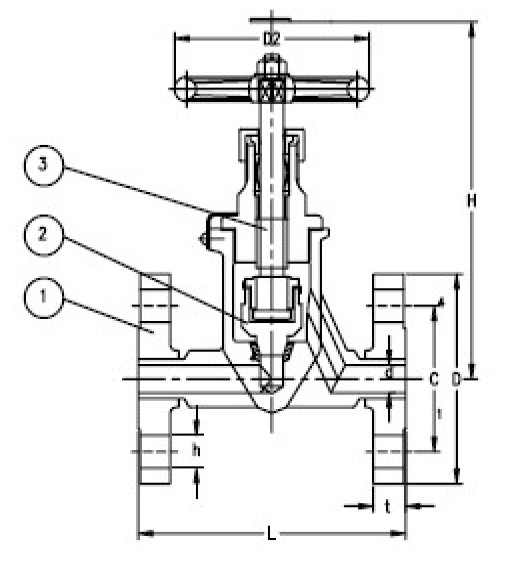

F type

Marine Forged Steel Globe Valve JIS F7329 40k

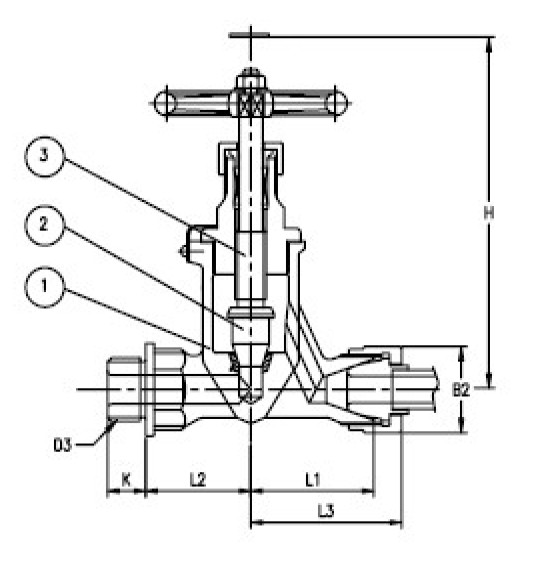

S type

Marine Forged Steel Globe Valve JIS F7329 40k

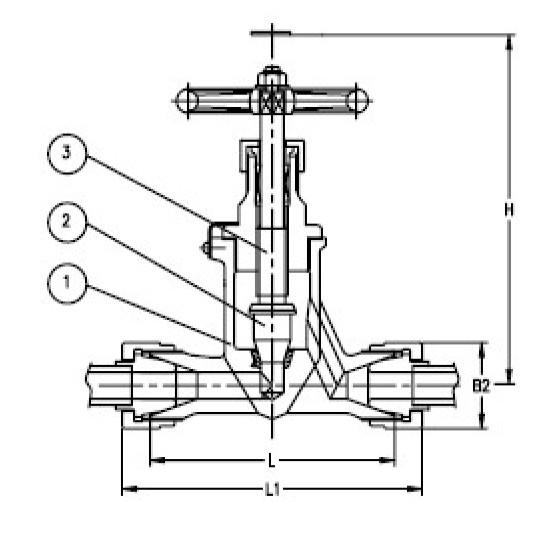

U type

Marine Forged Steel Globe Valve JIS F7329 40k

11.Certificate available:

Certificate
