Marine Cast Iron Gate Valve JIS F7363 5k

[Search Related Products]

F7363

Marine cast valve iron Gate Valve JIS F7363 5k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-600mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty.

9.Specification of Marine cast valve iron Gate Valve JIS F7363 5k:

Size L Flange diam. (D) Pitch (C) Hole (nxd) Weight
(mm) (mm) (mm) (mm) (mm) (kgs)

50

180

130

105

4-15

13.5

65

190

155

130

4-15

19.0

80

200

180

145

4-19

24.2

100

230

200

165

8-19

35.3

125

250

235

200

8-19

48.1

150

270

265

230

8-19

65.3

200

290

320

280

8-23

103.0

250

330

385

345

12-23

164.0

300

370

430

390

12-23

236.0

350

410

480

435

12-25

307.0

400

470

540

495

16-25

405.0

450

500

605

555

16-25

556.0

500

550

655

605

20-25

700.0

550

600

720

665

20-27

878.0

600

660

770

715

20-27

1120.0

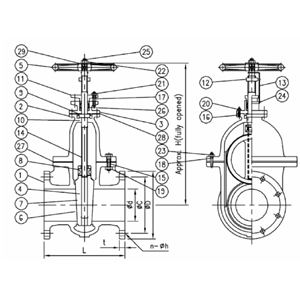

10.Drawing of Marine cast valve iron Gate Valve JIS F7363 5k:

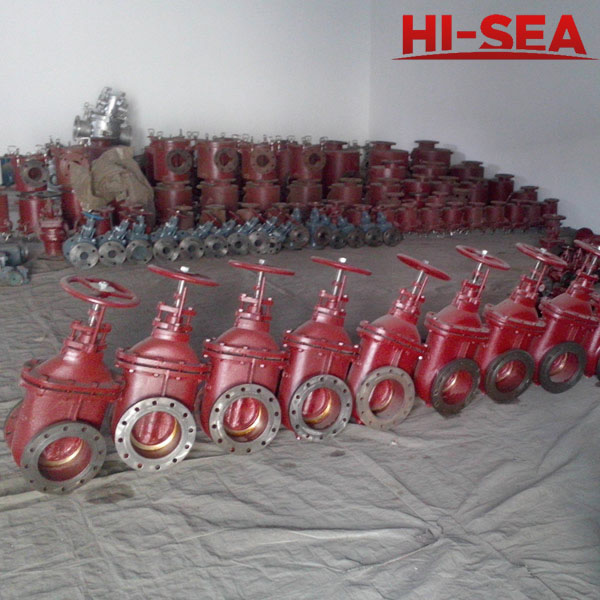

11.Marine cast valve iron Gate Valve JIS F7363 5k factory:

7366factory
