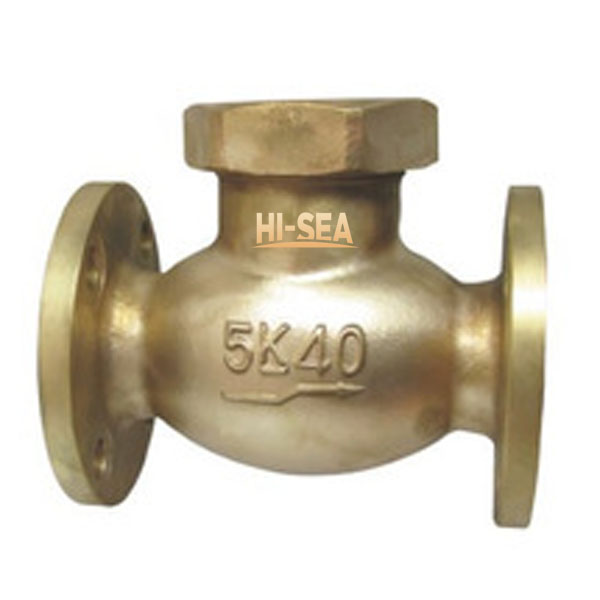

Marine Cast Bronze Lift Check Globe Valve JIS F7415 5k
[Search Related Products]
Marine Cast Bronze Lift Check Globe Valve JIS F7415 5k:
1.Test standard: JISF7400.
2.End standard: JISB2220.
3.End type:Flange.
4.Pressure: 5k.
5.DN: 15mm-40mm.
6.Main material:
- Body/Bonnet: BC6;
- Seat: BC6;
- Disc: BC6.
7.Application:Oil piping,water piping and gas piping.
8.Function: Such valves are used for preventing refluence.
9.Specification of Marine Cast Bronze Lift Check Globe Valve JIS F7415 5k:
|
IMPA |
DN |
Face to face/L(mm) |
Flange diam./D(mm) |
Flange pitch/C(mm) |
Flange hole/n*d(mm) |
Weight/kg |
|
751341 |
15 |
100 |
80 |
60 |
4x¦µ12 |
1.62 |
|
751342 |
20 |
110 |
85 |
65 |
4x¦µ12 |
2.17 |
|
751343 |
25 |
120 |
95 |
75 |
4x¦µ12 |
2.80 |
|
751344 |
32 |
140 |
115 |
90 |
4x¦µ15 |
3.92 |
|
751345 |
40 |
160 |
120 |
95 |
4x¦µ15 |
5.49 |

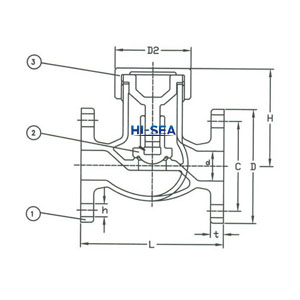

10.Drawing of Marine Cast Bronze Lift Check Globe Valve JIS F7415 5k:
11.Certificate available:
