Marine Cast Iron Angle Hose Valve JIS F7333 5K/10K
[Search Related Products]
Marine Cast Iron Angle Hose Valve JIS F7333B 5K/10K :
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:5k/10k.
5.DN:50mm/65mm.
6.Main material:
-
Body/Bonnet:FC20;
-
Seat:BC6/SS410;
-
Stem:BRASS/SS410;
-
Disc:BC6/SS410.
7.Application:Water piping.
8.Function:Such valves are used for fire control.
9.Specification of Marine Cast Iron Angle Hose Valve JIS F7333B 5K/10K :
| Code | Size | L | L2 | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H1 | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) | |
| 751734 | 5K50 | 100 | 110 | 130 | 105 | 4xΦ15 | 16 | 255 | 12.8 |
| 751736 | 10K50 | 120 | 115 | 155 | 120 | 4xΦ19 | 20 | 255 | 17.0 |
| 751737 | 10K65 | 130 | 125 | 175 | 140 | 4xΦ19 | 22 | 270 | 24.3 |

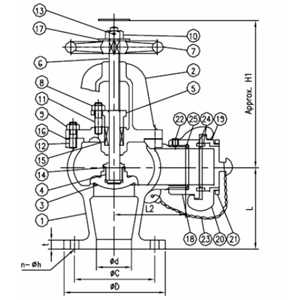

10.Drawing of Marine Cast Iron Angle Hose Valve JIS F7333B 5K/10K :
11.Marine Cast Iron Angle Hose Valve JIS F7333B 5K/10K factory:
