Marine Cast Bronze Emergency Shut-Off Valve JIS F7399 5k/10k

[Back][Search Related Products]

7399

Marine Cast Bronze Fuel Oil Tank Emergency Shut-off Valve JIS F7399 5k/10k:

1.Test standard:JISF7400.

2.End standard:

5k:JISB2210;
10K:JISB2240.

3.End type:F/U.

4.PN:5k/10k.

5.DN:25mm-100mm.

6.Main material:

Body/Bonnet:BC6;
Seat:BC6;
Stem:H62;
Disc:BC6.

7.Application:Fuel oil tank.

8.Specification of Marine Cast Bronze Fuel Oil Tank Emergency Shut-off Valve JIS F7399 5k/10k:

Marine Cast Bronze Fuel Oil Tank Emergency Shut-off Valve JIS F7399 5k:

DN/mm	Face to face/L(mm)	Flange diam./D(mm)	Flange pitch/C(mm)	Flange hole/n*d(mm)	Weight/kg
DN/mm	Face to face/L(mm)	Flange diam./D(mm)	Flange pitch/C(mm)	Flange hole/n*d(mm)	F type	U type
25	130	95	75	4xΦ12	8.80	8.50
40	170	120	95	4xΦ15	13.00	12.70
50	220	130	105	4xΦ15	21.80	20.90
65	270	155	130	4xΦ15	32.10	30.50
80	300	180	145	4xΦ19	37.50	35.40
100	350	200	165	8xΦ19	59.20	55.60

Marine Cast Bronze Fuel Oil Tank Emergency Shut-off Valve JIS F7399 10k:

DN/mm	Face to face/L(mm)	Flange diam./D(mm)	Flange pitch/C(mm)	Flange hole/n*d(mm)	Weight/kg
DN/mm	Face to face/L(mm)	Flange diam./D(mm)	Flange pitch/C(mm)	Flange hole/n*d(mm)	F type	U type
25	130	125	90	4xΦ19	8.80	8.50
40	170	140	105	4xΦ19	13.00	12.70
50	220	155	120	4xΦ19	21.80	20.90
65	270	175	140	4xΦ19	32.10	30.50
80	300	185	150	8xΦ19	37.50	35.40
100	350	210	175	8xφ19	59.20	55.60

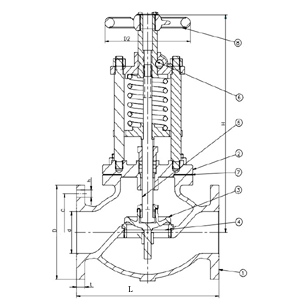

9.Drawing of Marine Bronze Fuel Oil Tank Emergency Shut-off Valve JIS F7399 5k/10k:

10.Certificate available:

Certificate01
