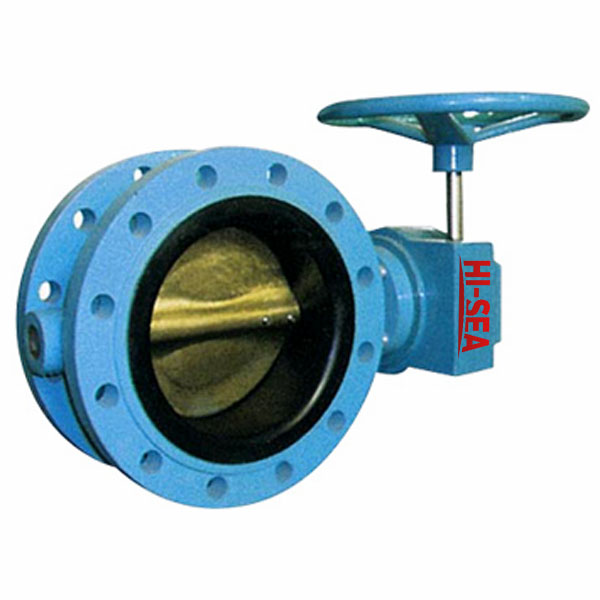

Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k
[Search Related Products]
Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k:
1.Test standard: JISF7400.
2.End standard: JISB2220.
3.End type:Flange.
4.Pressure: 5k/10k.
5.DN: 125mm-350mm.
6.Main material:
- Body/Bonnet: FCD450/FC200;
- Seat: NBR;
- Stem: SUS403;
- Disc: SUS304/BC6.
7.Application:Water piping,oil piping,steam piping,acid piping etc.
8.Test pressure:
|
PN |
5K |
10K |
|
Body/Mpa |
1.03 |
2.06 |
|
Seat/Mpa |
0.76 |
1.47 |
9.Specification of Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k:
Marine Double Flanged Type Butterfly Valve JIS F7480 5k
|
DN/mm |
D/mm |
D1/mm |
L/mm |
n*d/mm |
n-Th/mm |
|
125 |
250 |
200 |
100 |
4x¦µ19 |
4-M16 |
|
150 |
280 |
230 |
100 |
4x¦µ19 |
4-M16 |
|
200 |
330 |
280 |
100 |
4x¦µ23 |
4-M20 |
|
250 |
400 |
345 |
110 |
8x¦µ23 |
4-M20 |
|
300 |
445 |
390 |
110 |
8x¦µ23 |
4-M20 |
|
350 |
490 |
435 |
120 |
8x¦µ25 |
4-M22 |
Marine Double Flanged Type Butterfly Valve JIS F7480 10k
|
DN/mm |
D/mm |
D1/mm |
L/mm |
n*d/mm |
n-Th/mm |
|
125 |
250 |
210 |
100 |
4x¦µ23 |
4-M20 |
|
150 |
280 |
240 |
100 |
4x¦µ23 |
4-M20 |
|
200 |
330 |
290 |
100 |
8x¦µ23 |
4-M20 |
|
250 |
400 |
355 |
110 |
8x¦µ25 |
4-M22 |
|
300 |
445 |
400 |
110 |
8x¦µ25 |
8-M22 |
|
350 |
445 |
480 |
120 |
8x¦µ25 |
8-M22 |
10.Drawing of Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k:
11.Marine Double Flanged Type Butterfly Valve JIS 7480 5k/10k factory:
