Type N Bower Anchor
We supply all marine anchors since 1996, including stockless anchor, stock anchor, high holding power anchor and offshore anchor. ABS, LR, BV, LR, DNV, GL, KR, IRS, CCS Certificate is avialable for our products. With the advantage of widely source, good quality and service, we could be your reliable partner in China.
Product Details
1.Material: ZG200-400C.
2.Weight: 12KGS-20625KGS.
3.Certificate: ABS, LR, GL, BV, NK, DNV, IRS, CCS.
Type N Bower Anchor Completed

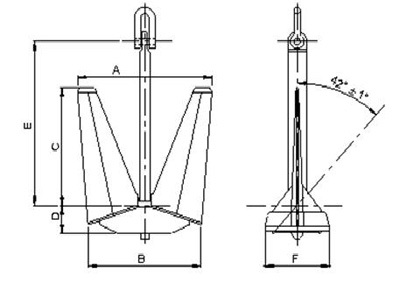

Type N Bower Anchor Process Drawing
Type N Bower Anchor Specifications:
Nominal Weight (kg) |
Dimensions (mm) |
|||||
A |
B |
C |
D |
E |
F |
|
12 |
325 |
275 |
252 |
65 |
383 |
155 |
20 |
385 |
325 |
298 |
75 |
455 |
185 |
25 |
410 |
350 |
318 |
80 |
485 |
200 |
40 |
480 |
410 |
372 |
95 |
570 |
235 |
60 |
555 |
470 |
429 |
110 |
655 |
270 |
80 |
608 |
515 |
470 |
120 |
720 |
295 |
100 |
655 |
555 |
506 |
130 |
775 |
320 |
120 |
698 |
595 |
540 |
135 |
825 |
340 |
160 |
765 |
650 |
592 |
150 |
905 |
370 |
180 |
795 |
675 |
615 |
155 |
940 |
385 |
200 |
825 |
700 |
640 |
160 |
978 |
400 |
240 |
880 |
745 |
680 |
175 |
1,040 |
425 |
280 |
925 |
780 |
715 |
180 |
1,092 |
450 |
320 |
964 |
820 |
745 |
190 |
1,140 |
470 |
360 |
1,005 |
855 |
780 |
195 |
1,190 |
490 |
400 |
1,040 |
885 |
805 |
205 |
1,230 |
505 |
440 |
1,074 |
910 |
830 |
210 |
1,270 |
520 |
480 |
1,105 |
940 |
855 |
215 |
1,305 |
535 |
520 |
1,133 |
960 |
875 |
220 |
1,340 |
550 |
560 |
1,165 |
985 |
900 |
230 |
1,375 |
565 |
600 |
1,190 |
1,010 |
920 |
235 |
1,410 |
580 |
640 |
1,216 |
1,035 |
940 |
240 |
1,440 |
590 |
720 |
1,265 |
1,075 |
978 |
250 |
1,495 |
615 |
800 |
1,313 |
1,115 |
1,015 |
255 |
1,550 |
635 |
900 |
1,365 |
1,160 |
1,055 |
270 |
1,615 |
665 |
1,000 |
1,410 |
1,200 |
1,090 |
275 |
1,670 |
670 |
1,250 |
1,520 |
1,290 |
1,175 |
300 |
1,800 |
740 |
1,500 |
1,615 |
1,370 |
1,250 |
315 |
1,910 |
785 |
1,750 |
1,705 |
1,445 |
1,320 |
335 |
2,015 |
830 |
2,250 |
1,850 |
1,570 |
1,430 |
360 |
2,185 |
900 |
2,500 |
1,920 |
1,630 |
1,485 |
370 |
2,265 |
920 |
2,655 |
1,954 |
1,664 |
1,516 |
372 |
2,312 |
925 |
2,835 |
1,996 |
1,700 |
1,550 |
380 |
2,364 |
945 |
3,040 |
2,042 |
1,735 |
1,585 |
390 |
2,418 |
968 |
3,240 |
2,086 |
1,773 |
1,620 |
398 |
2,471 |
988 |
3,445 |
2,129 |
1,809 |
1,653 |
406 |
2,522 |
1,009 |
3,670 |
2,174 |
1,847 |
1,689 |
415 |
2,575 |
1,030 |
3,940 |
2,226 |
1,892 |
1,730 |
425 |
2,637 |
1,055 |
4,210 |
2,276 |
1,934 |
1,768 |
434 |
2,696 |
1,078 |
4,500 |
2,328 |
1,978 |
1,808 |
444 |
2,757 |
1,103 |
4,840 |
2,385 |
2,026 |
1,852 |
455 |
2,824 |
1,130 |
5,175 |
2,439 |
2,072 |
1,894 |
465 |
2,889 |
1,155 |
5,515 |
2,491 |
2,116 |
1,934 |
475 |
2,950 |
1,180 |
5,850 |
2,541 |
2,159 |
1,973 |
485 |
3,009 |
1,204 |
6,225 |
2,594 |
2,204 |
2,014 |
495 |
3,072 |
1,229 |
6,525 |
2,635 |
2,239 |
2,046 |
503 |
3,121 |
1,248 |
6,975 |
2,695 |
2,290 |
2,092 |
514 |
3,190 |
1,276 |
7,425 |
2,751 |
2,337 |
2,136 |
525 |
3,258 |
1,303 |
7,875 |
2,805 |
2,384 |
2,178 |
535 |
3,323 |
1,329 |
8,325 |
2,858 |
2,428 |
2,219 |
545 |
3,385 |
1,354 |
8,775 |
2,908 |
2,471 |
2,258 |
555 |
3,445 |
1,378 |
9,225 |
2,958 |
2,512 |
2,296 |
564 |
3,502 |
1,401 |
9,675 |
3,004 |
2,553 |
2,333 |
573 |
3,558 |
1,423 |
10,125 |
3,050 |
2,592 |
2,369 |
582 |
3,613 |
1,445 |
10,575 |
3,095 |
2,630 |
2,403 |
590 |
3,666 |
1,466 |
12,075 |
3,235 |
2,748 |
2,512 |
617 |
3,831 |
1,533 |
13,350 |
3,345 |
2,842 |
2,598 |
634 |
3,962 |
1,585 |
14,100 |
3,406 |
2,895 |
2,645 |
649 |
4,035 |
1,614 |
15,400 |
3,508 |
2,981 |
2,724 |
669 |
4,155 |
1,662 |
Look forwards to receiving your enquiry.
