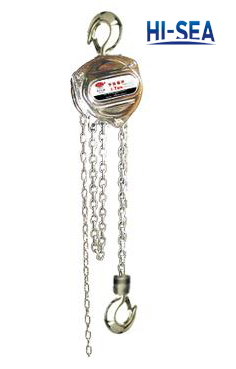

0.5Ton-2Ton Stainless Steel Manual Chain Block

0.5Ton-2Ton Stainless Steel Manual Chain Block

0.5Ton-2Ton stainless steel manual chain block can help to complete the lifting and handling of objects to greatly increase the overall efficiency of work. It can make parts permanently maintain the integrity of engineering design. The base material of it is 304 stainless steel, which makes it has very good corrosion resistance. And it could be widely used in factories, mines, construction site, wharf, transportation and so on.

Producct details:

1. Minimum capacity: 0.5T: maximum capacity: 2T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Forbidden to use the power to operate other than human

4. Gear and spring should be maintained regularly to prevent brake failure.

5. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.5	1	2
Lifting height(m)	2.5	2.5	2.5
Test load(T)	0.75	1.5	3
Min.distance of hooks(mm)	255	306	444
No.of chain	1	1	2
Dia of chain(mm)	6	6	6
Net weigh(kg)	8	10	14

Stainless Steel Manual Chain Block
