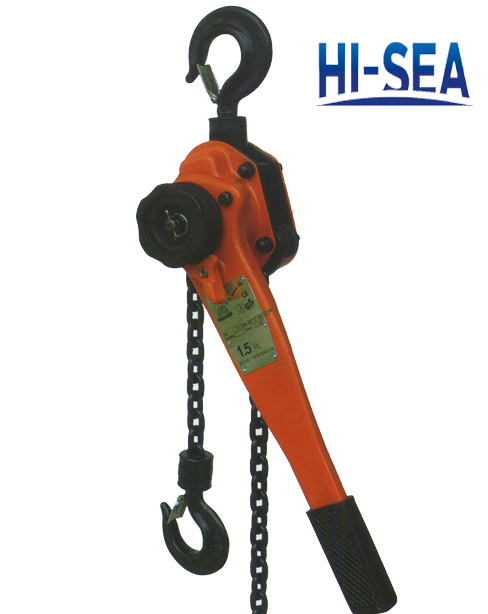

HSH Series Manual Lever Chain Block

HSH Series Manual Lever Chain Block

HSH series manual lever chain block is a new, efficient, safe and durable hoisting machinery product with three important functions: lifting, pulling, tensioning. It is especially show its superiority when used in the limited narrow place, the open air, and all kinds of different angle of traction. It is an ideal tool for equipment installation, cargo lifting, objects fixing, binding and and traction.

Producct details:

1. Minimum capacity: 0.75T: maximum capacity: 9T

2. Standard lifting hight: 1.5m

3. Net weight: 7.7kg-47kg

4. Usage: lifting, fixing, binding, traction and so on.

5. The main parts of it adopt high quality steel product to ensure durability.

6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the lever hoist in rain or very humid place.

4. Please select the appropriate tonnage of block according to the weight of the load.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. If there is a phenomenon that it can not pull, please do not pull it with yank power.

Specification:

Capacity(T)

Net weight(kg)

A(mm)

B(mm)

C(mm)

H(mm)

L(mm)

0.75

7.7

155

95

135

320

285

1.5

11.8

180

105

155

380

370

3

21

215

130

200

480

410

6

32

215

130

200

600

410

9

47

215

130

330

700

410

HSH Series Manual Lever Chain Block

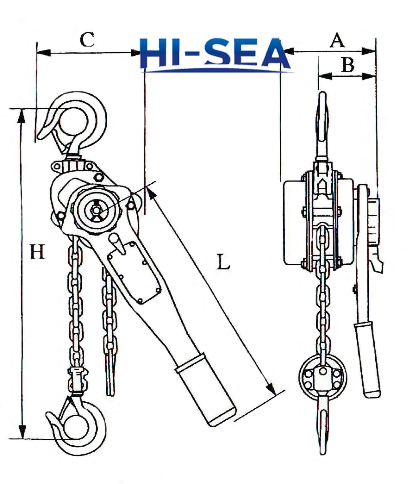

Sketch of the HSH Series Manual Lever Chain Block

HSH Series Manual Lever Chain Block

HSH Series Manual Lever Chain Block
