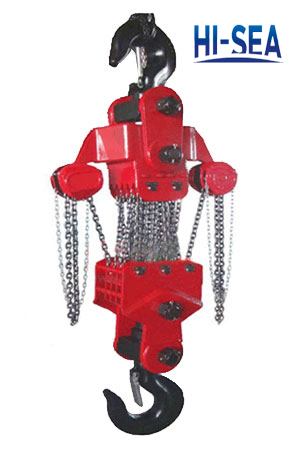

Heavy Duty HSZ Type Chain Block

Heavy Duty HSZ Type Chain Block

Heavy duty HSZ type chain block is a kind of improved lifting product, whose structure and design is more reasonable and close to the need of market. The hand chain of it can operate from 360-degree angle. Whether inside the limited space, or above the lifting goods, the operator can effectively control the block in almost any position. All the parts are made of high quality material, and the additional coating and painting process increase the corrosion resistance.

Producct details:

1. Minimum capacity: 12T: maximum capacity: 50T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Gear and spring should be maintained regularly to prevent brake failure.

5. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)

12

15

30

50

Test load(Kn)

150

187.5

375

625

No.of chain

4

6

12

22

Dia.of chain

10

10

10

10

Net weight(kg)

80

125

228

1085

A(mm)

181

181

330

410

B(mm)

365

485

670

965

C(mm)

798

920

1000

1950

D(mm)

57

84

84

130

Heavy Duty HSZ Type Chain Block

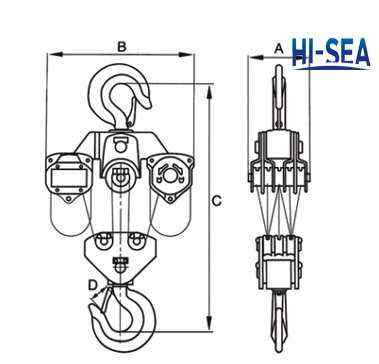

Skecth of the heavy duty HSZ type chain block

Heavy Duty HSZ Type Chain Block

Heavy Duty HSZ Type Chain Block
