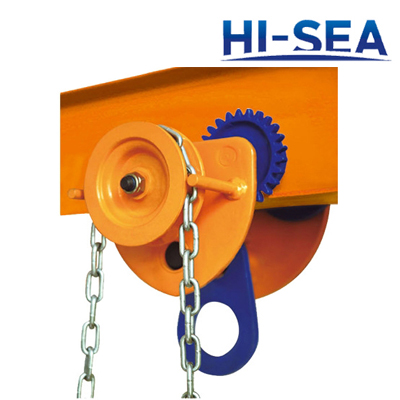

Geared Trolley

Geared Trolley

Geared trolley is especially suitable for no power operation. It is driven by pulling chain with four wheels move on the edge of I-beam track. It is safe and easy to be operated, the wheel spacing of it can be adjust according to the I-beam. But you should pay attention that the deformed, cracked I-beam, or the I-beam which does not meet the standards can not be used as the track of trolley.

Product Details:

1. Model: Geared trolley

2. Power source: Hand pulling

3. Usage: Hoist

4. Weight: 4.8-76kg

5. Capacity: 0.5-10ton

6. I-beam: 68-180mm

7. Certificates: ISO, CE, SGS,etc.

8. Packaging: Gunny bag or carton then on steel pallet

9. Special specification and marks can be made according to order quantity

Specification:

Item

Capacity

Net Weight

A

B

C

E

F

K

ton

kg

mm

mm

mm

mm

mm

mm

HS-10

1

8.5

206

231

120

80

27

117

HS-20

2

12.2

241

271

155

100

33

119

HS-30

3

18

261

311

185

113

47

134

HS-50

5

31.5

294

351

220

125

53

134

HS-100

10

45

294

721

265

125

53

134

Geared Trolley

Sketch of geared trolley
