Stage Used Manual Chain Block

[Search Related Products]

Stage Used Manual Chain Block

Stage Used Manual Chain Block

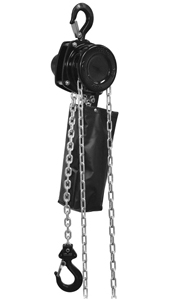

The black stage used manual chain block is a 360-degree rotating lifting equipment. Which is especially designed and produced for stage hoisting and industrial hoisting in limited place. It adopts imported lifting chain, double friction plates and has solid steel casing and overload protection function.

Product details:

1. Minimum capacity: 0.5T: maximum capacity: 50T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Gear and spring should be maintained regularly to prevent brake failure.

5. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)

0.5

1

1.5

2

3

5

10

20

30

50

Lifting height(m)

2.5

2.5

2.5

2.5

3

3

3

3

3

3

Test load(T)

0.75

1.5

2.25

3

4.5

7.5

12.5

25

27.5

62.5

Min.distance of hooks(mm)

270

270

368

444

486

616

700

890

980

1300

No.of chain

1

1

1

2

2

2

4

8

12

22

Dia.of chain(mm)

6

6

8

6

8

10

10

10

10

10

Stage Used Manual Chain Block

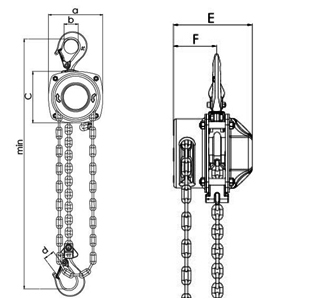

Sketch of the stage used manual chain block

Stage Used Manual Chain Block

Stage Uesd Manual Chain Block
