Stainless Steel Manual Chain Block

Stainless Steel Manual Chain Block

Stainless steel manual chain block is a kind of common used lifting tools. It can help to complete the lifting and handling of objects to greatly increase the overall efficiency of work. The base material of it is 304 stainless steel, which makes it has very good corrosion resistance. And it could be widely used in factories, mines, construction site, wharf, transportation and so on.

Producct details:

1. Minimum capacity: 0.5T: maximum capacity: 50T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Forbidden to use the power to operate other than human

4. Gear and spring should be maintained regularly to prevent brake failure.

5. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.5	1	1.5	2	3	5	7.5	10	15	20	30	50
Standard lift(m)	3	3	3	3	3	3	3	3	3	3	3	3
Test load(N)	6.3	12.5	18.8	25	37.5	62.5	94	125	187.5	250	375	625
Dia.of chain(mm)	5	6	7.1	8	7.1	10	10	10	10	10	10	10
Net weight(kg)	8	11	17	18	22	45	52	70	125	162	228	1085

Stainless Steel Manual Chain Block

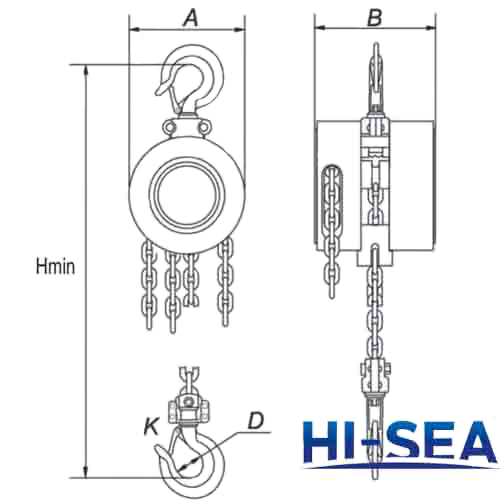

Sketch of thte stainless steel manual chain block

Stainless Steel Manual Chain Block

Stainless Steel Manual Chain Block
