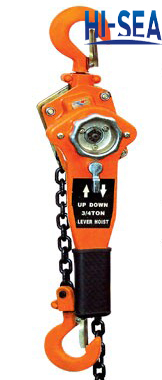

VA Type Manual Lever Chain Block

VA Type Manual Lever Chain Block

VA type manual lever chain block is a small, multi-purpose manual lifting and traction machine. It is a new, efficient, safe and durable hoisting machinery product with three important functions: lifting, pulling, tensioning. It is an ideal tool for equipment installation, cargo lifting, objects fixing, binding and and traction. It is especially show its superiority for working in limited place and at any angle.

Producct details:

1. Minimum capacity: 0.5T: maximum capacity: 6T

2. Standard lifting hight: 1.5m

3. Net weight: 5.9kg-28.1kg

4. Usage: lifting, fixing, binding, traction and so on.

5. The main parts of it adopt high quality steel product to ensure durability.

6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Gear and spring should be maintained regularly to prevent brake failure.

4. If there is a phenomenon that it can not pull, please do not pull it with yank power.

Specification:

WLL	N.W.(kg)	A(mm)	C(mm）	H(mm)	K(mm)	L(mm)
0.5	5.9	148	96	325	45	280
0.75	6.6	148	96	325	45	280
1	6.6	148	96	325	48	280
1.5	10.8	172	110	38	52	410
2	11.1	12	110	380	60	410
3	18.2	195	145	480	66	410
6	28.1	195	145	480	80	410

Sketch of the VA type manual lever chain block
