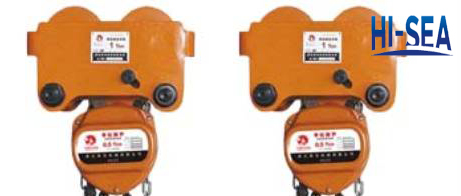

Combined Manual Chain Block

Combined Manual Chain Block

Combined hand chian block is the combination of manual chain block and manual monorail trolley. This combination aims to make the application of chain block more flexible. It is very suitable for use under low headroom and limited place. And it it specially designed for heavy industry. The 360 degree rotating hand chain allow the operator to work from differrnt angles. So, the operator can be far away from the dangerous area.

Product details:

1. Minimum capacity: 0.5T: maximum capacity: 5T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Gear and spring should be maintained regularly to prevent brake failure.

5. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.5	1	2	3	5
Test load(N)	7.5	15	30	45	75
Lifting height(m)	3	3	3	3	3
A(mm)	238	277	302	363	436
B(mm)	137	170	194	230	260
C(mm)	336	338	346	382	395
D(mm)	35	35.5	42.5	50	64
E(mm)	88	88	88	120	120
F(mm)	3	3	3	3	3
M(mm)	M18	M22	M27	M30	M42
K(mm)	28	26	32	37	46
Hmin(mm)	280	337	423	447	616

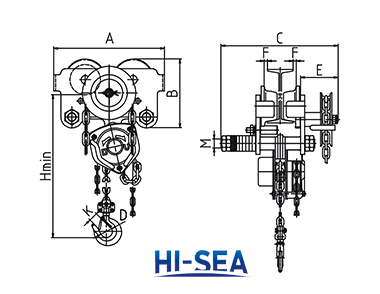

Sketch of the combined manual chain block
