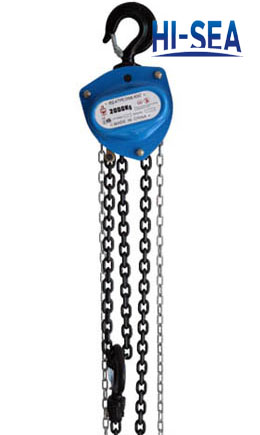

Light Duty HSZ-A Type Chain Block
Light duty HSZ-A type chain block is a kind of manual hoisting machinery, which is easy to use and convenient to carry. It uses a new type of triangular appearance and prominent color. The chain of it is silver aluminum alloy with high strength. It is applicable to factories, mines, construction sites, agricultural prodution, docks, warehouses to install machine, lift goods, load and unload; especially show its superiority in outdoor and no power work.Product details:
1. Minimum capacity: 0.5T: maximum capacity: 10T
2. Usage: lifting, fixing, binding, traction and so on.
3. The main parts of it adopt high quality steel product to ensure durability.
4. Special specifications and marks can be made according to customers requirement.
Safety notice:
1. Please check hooks, wire rope, wheel bearings and other accessories before use.
2. Do not over weight used.
3. Do not expose the hoist in rain or very humid place.
4. Gear and spring should be maintained regularly to prevent brake failure.
5. Please select the appropriate tonnage of block according to the weight of the load.
Specification:
Capacity(T) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
Lifting height(m) |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
Running test load(N) |
6.3 |
12.5 |
18.7 |
25 |
37.5 |
63 |
125 |
No.of chain |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
Dia.of chain |
6 |
6 |
8 |
8 |
8 |
10 |
10 |
Net weight(kg) |
8.4 |
11 |
16.2 |
18.5 |
25.6 |
42.8 |
79.5 |
A(mm) |
137.5 |
146.5 |
170 |
170 |
170 |
190.4 |
190 |
B(mm) |
137 |
162 |
183 |
194 |
220 |
288 |
384 |
C(mm) |
270 |
317 |
399 |
414 |
465 |
618 |
798 |
D(mm) |
35 |
35.5 |
45 |
42.5 |
50 |
64 |
85 |
K(mm) |
28 |
26 |
32.5 |
32 |
37 |
46 |
50 |

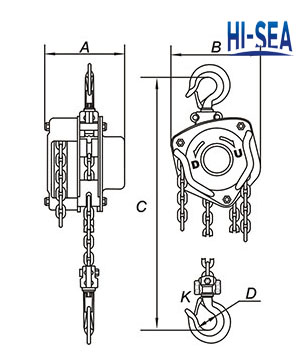

Sketch of the light duty HSZ-A type chain block
