Plain Trolley

Plain Trolley

The main parts of plain trolley is made from high quality alloy steel. It is driven by pulling the heavy object, and can move on the edge of I-beam track freely. It is widely used in factories, mines, docks, warehouses, machinery processing, constraction site to install machinery, equipment and lifting goods. It complies with the European CE safety standard.

Product Details:

1. Model: Plain trolley

2. Power source: Hand pulling

3. Usage: Hoist

4. Weight: 5.5-430kg

5. Capacity: 0.5-10ton

6. Certificates: ISO, CE, SGS,etc.

7. Packaging: Gunny bag or carton then on steel pallet

8. Special specification and marks can be made according to order quantity

Specification:

Item

Capacity

Weight

I-beam

A

B

C

D

E

F

ton

kg

mm

mm

mm

mm

mm

mm

mm

HS-5

0.5

5.5

75-125

206

174

120

45

55

27

HS-10

1

7.5

75-125

206

231

120

45

80

27

HS-20

2

11.2

100-150

241

271

155

60

100

33

HS-30

3

17

100-150

261

311

185

70

113

47

HS-50

5

30.5

125-175

294

351

220

80

125

53

HS-100

10

43

150-175

294

721

265

90

125

53

Plain Trolley

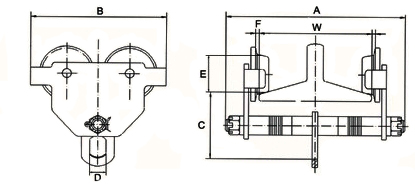

Sketch of plain trolley

Plain Trolley

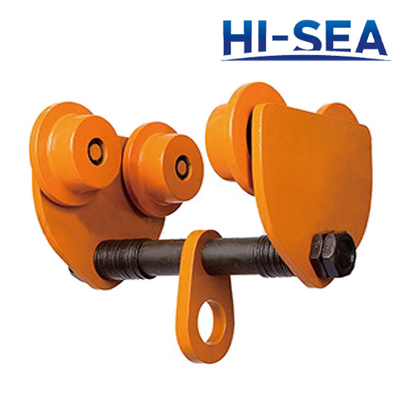

Plain Trolley-A

Plain Trolley

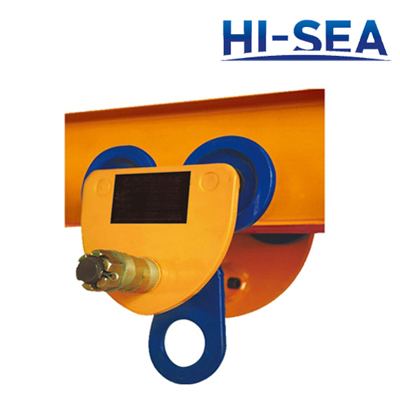

Plain Trolley-B
