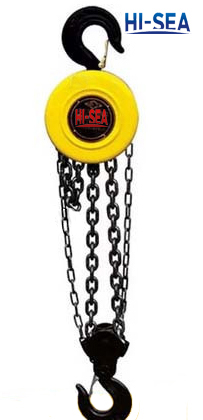

HSZ Series Manual Chain Hoist

HSZ Series Manual Chain Hoist

HSZ series manual chain block is a kind of high quality hoisting machinery with advanced structure, popular appearance, small volume, light weight, high efficiency and good safety performance. It adapts Japanese technology, designed according to the need of market. And it could be widely used in factories, mines, construction site, wharf, transportation and so on.

Producct details:

1. Minimum capacity: 0.5T: maximum capacity: 20T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Forbidden to use the power to operate other than human

4. Do not expose the hoist in rain or very humid place.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.5	1	1.5	2	3	5	10	20
Standard lift(m)	2.5	2.5	2.5	2.5	3	3	3	3
Test load(T)	0.63	1.25	2	2.5	4	6.3	12.5	25
Min.distance of hooks(mm)	270	270	368	444	486	616	700	1000
Diamater of chain(mm)	6	6	8	8	8	10	10	10
Net weight(kg)	9.5	10	16	14	24	36	68	155

Sketch of the HSZ series manual chain hoist
