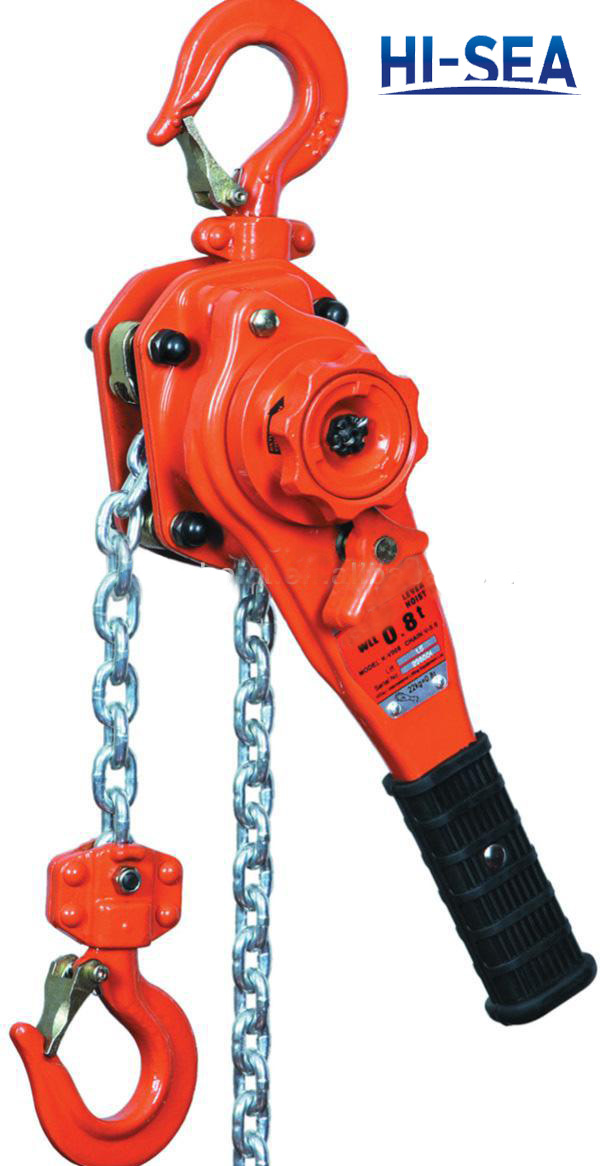

Japan-made KITO Lever Chain Block

Japan-made KITO Lever Chain Block

Janpan-made KITO lever chain block is widely used to install equipment, lift, pull materials in shipbuilding, electric power, transportation, construction, mining or other field. It has the advantages of safe, reliable, durable, good performance, convenient maintenance, small volume, light weight, easy to carry and so on. But you should pay attention that it is use labour power to lift heavy, so you can not increase the length of operating handle optionally.

Producct details:

1. Minimum capacity: 0.25T: maximum capacity: 9T

2. Net weight: 3.6kg-48kg

3. Usage: lifting, fixing, binding, traction and so on.

4. The main parts of it adopt high quality steel product to ensure durability.

5. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the lever hoist in rain or very humid place.

4. Gear and spring should be maintained regularly to prevent brake failure.

5. Please select the appropriate tonnage of block according to the weight of the load.

6. If there is a phenomenon that it can not pull, please do not pull it with yank power.

Specification:

Capacity(T)	0.25	0.5	0.75	1.5	3	6	9
Standard lift(M)	1	1	1.5	1.5	1.5	1.5	1.5
Test load(T)	0.375	0.75	1.125	2.25	3.75	7.5	11.25
Diameter of load chain(mm)	4	5	6	8	10	10	10
Min.distance of hooks(mm)	160	280	320	380	480	600	700
Net weight(kg)	3.6	6.5	7.8	12	21	32	48
