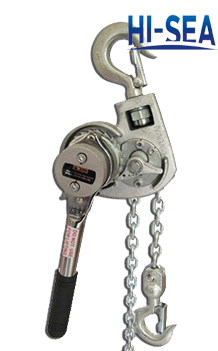

0.75Ton-9Ton Aluminum Alloy Lever Chain Block

0.75Ton-9Ton Aluminum Alloy Lever Chain Block

The weight of aluminum alloy lever chain block is very light, which is just half, or even lighter, of ordinary lever chain block. And the distance is small after tightening, so it is easier for the cable end to install. The aluminum alloy body make it more suitable for working high in the sky because of its light weight. So, It is an ideal tool for equipment installation, cargo lifting, objects fixing, binding and and traction.

Producct details:

1. Minimum capacity: 0.5T: maximum capacity: 6T

2. Usage: lifting, fixing, binding, traction and so on.

3. The body is made of the high strength magnesium aluminum alloy

4. The chain is made of the high strength steel alloy

5. The main parts of it adopt high quality steel product to ensure durability.

6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Gear and spring should be maintained regularly to prevent brake failure.

4. If there is a phenomenon that it can not pull, please do not pull it with yank power.

Specification:

Capacity(T)	Test load(T)	Standard lift(m)	Handle length(mm)	Net weight(kg)
0.75	1.13	1.5	230	4
1.5	2.25	1.5	230	5
3	4.5	1.5	430	8.5
4	6	1.5	630	14.5
6	9	1.5	730	18
9	13.5	1.5	730	24

Aluminim Alloy Lever Chain Block-A

Aluminum Alloy Lever Chain Block-B
