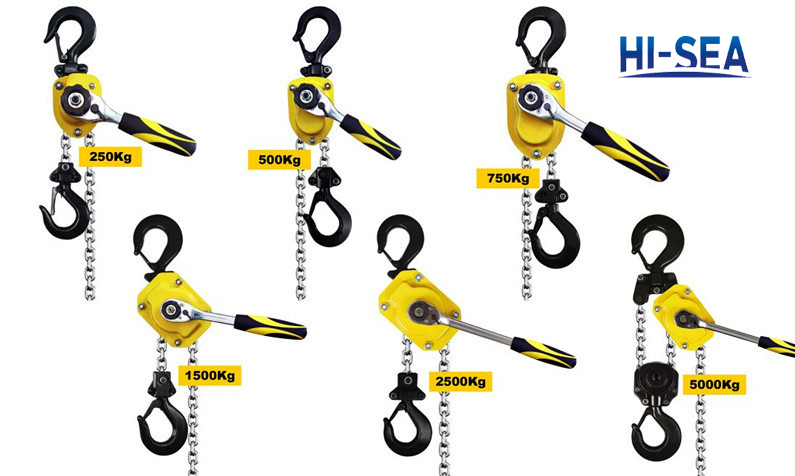

Mini Lever Chain Block

Mini Lever Chain Block

Mini lever chain block belongs to a kind of miniature and low weight manual lever hoist, which is simple to use and easy to carry. The distance between the hook is very short. And the handle of it adopt forging technology. so it has high safety coefficient and long sevice life. Lever hoist is suitable for factories, mines, construction site, wharf, transportation and so on. It is an ideal tool for equipment installation, cargo lifting, objects fixing, binding and and traction.

Producct details:

1. Minimum capacity: 0.25T: maximum capacity: 5T

2. Standard lifting hight: 1.5m

3. Net weight: 2.15kg-25.5kg

4. Usage: lifting, fixing, binding, traction and so on.

5. The main parts of it adopt high quality steel product to ensure durability.

6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Gear and spring should be maintained regularly to prevent brake failure.

4. If there is a phenomenon that it can not pull, please do not pull it with yank power.

Specification:

Capacity(T)	0.25	0.5	0.75	1.5	2.5	5
Standard lift(m)	1.5	1.5	1.5	1.5	1.5	1.5
Test load(T)	375	750	1125	2250	3750	7500
Net weight(kg)	2.15	3.1	4.7	8.5	14.1	25.5
Gross weight(kg)	2.2	3.2	4.8	8.7	14.5	26

Mini Lever Chain Block-A

Mini Lever Chain Block-B
