Low Headroom Manual Chain Hoist

Low headroom manual chian hoist is a newly developed product of our company. Through specific design, it can rise the objects closest to the fixed point to realize the low-headroom combination of monorail trolley and manual block. It is especially suitable for equipment installation and maintenance in limited place. In addition, this product also has the advantages of light weight, small hand pull and cost saving.

Producct details:

1. Minimum capacity: 1T: maximum capacity: 10T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Gear and spring should be maintained regularly to prevent brake failure.

5. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	1	2	3	5	10
Lifting height(m)	2.5	2.5	3	3	3
No.of chain	1	2	2	2	4
Dia.of chain	6*18	6*18	6*24	10*30	10*30
Net weight(kg)	9.2	12.8	22.5	35	68
A(mm)	520	530	670	680	855
B(mm)	330	340	460	470	520
C(mm)	360	360	460	470	520
H(mm)	118	118	150	150	300
Lmin(mm)	140	140	200	200	240

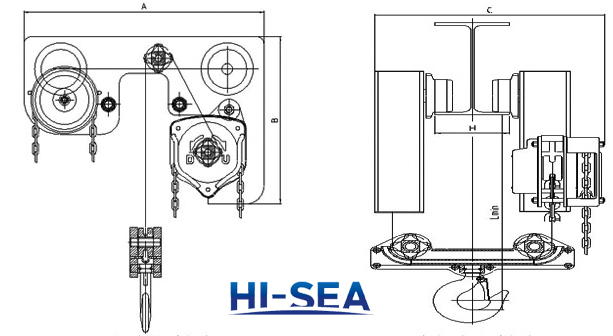

Sketch of the low headroom manual chain hoist
