75KW/100HP Marine Tunnel Thruster
[Search Related Products]75KW/100HP Marine Tunnel Thruster

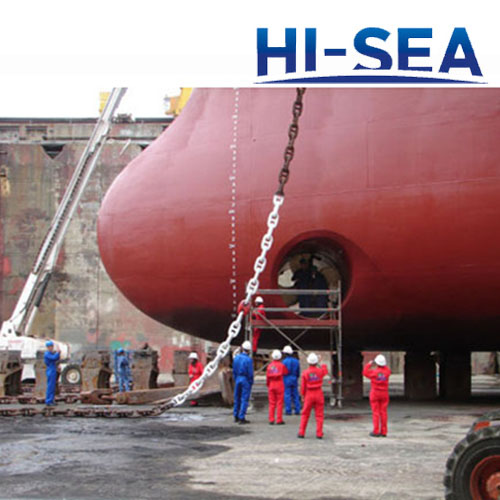

Marine tunnel thruster is installed transversely in the bow of a vessel. It primarily used for docking, slow speed maneuvering, emergency steering and station keeping at zero or slow forward speed. According to the propeller type, tunnel thrusters are fallen into CPP tunnel thrusters and FPP tunnel thrusters. This one is the FPP type with 75KW/100HP. It is driven by electric motor and approved by certificates of CCS, BV, ABS, DNV, NK, KR, GL, etc. If you are interested in our products, please be free to contact us, we are very glad to serve you.
Features:
1. Propeller type: FPP
2. Propeller diameter: 600mm
3. Max. thrust: 16KN
4. Frequency: 60Hz
5. Certification: ABS, CCS, DNV, NK, BV, KR, GL, etc.
Marine Tunnel Thruster Installation Drawing
More model parameters:
Model |
Motor power (KW) |
Frequency (Hz) |
Input speed (rpm) |
A |
B |
C |
D |
E |
F |
MTT50 |
60/75 |
50/60 |
1450/1755 |
545 |
525 |
600 |
500 |
345 |
551 |
MTT60 |
100/120 |
50/60 |
1450/1755 |
651 |
621 |
800 |
600 |
400 |
623 |
MTT70 |
140/170 |
50/60 |
1450/1755 |
751 |
721 |
800 |
700 |
450 |
650 |
MTT80 |
220/260 |
50/60 |
1450/1755 |
862 |
822 |
920 |
800 |
500 |
710 |
MTT90 |
220/260 |
50/60 |
1450/1755 |
962 |
922 |
920 |
900 |
550 |
800 |
MTT110 |
345/400 |
50/60 |
1450/1760 |
1158 |
1126 |
1200 |
1100 |
650 |
862 |
MTT130 |
450/500 |
50/60 |
1450/1760 |
1360 |
1328 |
1265 |
1300 |
780 |
932 |
MTT150 |
560/630 |
50/60 |
1450/1760 |
1570 |
1534 |
1400 |
1500 |
880 |
1040 |
MTT165 |
680/780 |
50/60 |
1450/1770 |
1732 |
1692 |
1611 |
1650 |
950 |
1146 |
MTT180 |
880/930 |
50/60 |
1450/1770 |
1882 |
1842 |
1690 |
1800 |
1040 |
1220 |
MTT200 |
1150/1000 |
50/60 |
1450/1180 |
2082 |
2038 |
1890 |
2000 |
1160 |
1327 |
MTT250 |
1800/1700 |
50/60 |
975/880 |
2620 |
2560 |
2280 |
2500 |
1460 |
1780 |
MTT275 |
2300/200 |
50/60 |
975/880 |
2890 |
2810 |
2335 |
2750 |
1635 |
1911 |
MTT300 |
2800/3050 |
50/60 |
735/880 |
3150 |
3060 |
2500 |
3000 |
1810 |
2180 |
Product showing:
75KW/100HP Tunnel Thruster
