Electric Tunnel Thruster
[Search Related Products]Electric Tunnel Thruster
Vessels usually have one or more tunnel thrusters built into the bow below the waterline in order to improve maneuverability when docking or steering. Our tunnel thrusters can be driven by diesel engine, hydraulic motor or electric motor. This product is the electric-driving type. It is used together with motor starter, frequency converter control panel and motor. As a professional supplier of tunnel thruster, we promise to provide the product with high quality and offer the first-class service. Our electric tunnel thruster is approved by ABS, BV, DNV, CCS, KR, GL, NK, RINA, etc. If you are interested in our products, please feel free to contact us, we will reply you as soon as possible.
Features:
1. Propeller type: CPP & FPP
2. Drive force: electric motor
3. Advantages: high efficiency and low noise, reliability and durability
4. Certification: ABS, BV, CCS, DNV, NK, KR, RINA, GL, etc.
5. Design and manufacture the product according to clientĄ¯s request (optional)
FPP Electric Tunnel Thruster Parameters |
|||||||||
Model |
FP-500 |
FP-600 |
FP-700 |
FP-800 |
FP-900 |
FP-1000 |
FP-1100 |
FP-1300 |
FP-1480 |
Max input power |
63/72 |
90/105 |
135/165 |
180/190 |
200/235 |
280/290 |
315/340 |
445/480 |
560/620 |
Ratio |
1.52 |
2.071 |
2.07 |
2.417 |
2.42 |
3.09 |
3.09 |
3.78 |
4.364 |
Max input torque |
600 |
900 |
900 |
1400 |
1400 |
2100 |
2100 |
3000 |
3800 |
Max input speed |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
Propeller speed |
954/1151 |
700/845 |
700/845 |
600/724 |
600/724 |
469.1/566 |
469.1/566 |
384/463 |
332.3/401 |
Propeller diameter |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1300 |
1480 |
Max thrust |
10/11.2 |
14.5/16.3 |
20/24.8 |
29.5/30.5 |
31/35.4 |
43/45.2 |
49/53.8 |
67/73 |
88/95 |
Cylinder length |
600 |
800 |
800 |
920 |
920 |
1045 |
1045 |
1190 |
1320 |
Cylinder internal |
515 |
615 |
715 |
818 |
918 |
1020 |
1120 |
1328 |
1510 |
CPP Electric Tunnel Thruster Parameters |
|||||||
Model |
CP-1000 |
CP-1100 |
CP-1300 |
CP-1650 |
CP-2000 |
CP-2400 |
CP-2800 |
Max input power |
280 |
315/335 |
445/480 |
680/730 |
1050/900 |
1580/1720 |
2000/1910 |
Ratio |
3.09 |
3.09 |
3.78 |
4.72 |
4.82 |
4.645 |
4.395 |
Max input speed |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1190 |
980/1190 |
980/880 |
Propeller speed |
469.1/560 |
469/566 |
384/463 |
307/370 |
301/247 |
211/256 |
223/200 |
Propeller diameter |
1000 |
1100 |
1300 |
1650 |
2000 |
2400 |
2800 |
Max thrust |
43 |
46/47 |
66/67 |
97/105 |
155/144 |
239/242 |
298/297 |
Cylinder length |
1045 |
1045 |
1190 |
1446 |
1680 |
1990 |
2280 |
Cylinder internal |
1020 |
1120 |
1328 |
1680 |
2030 |
2430 |
2836 |
Picture showing:

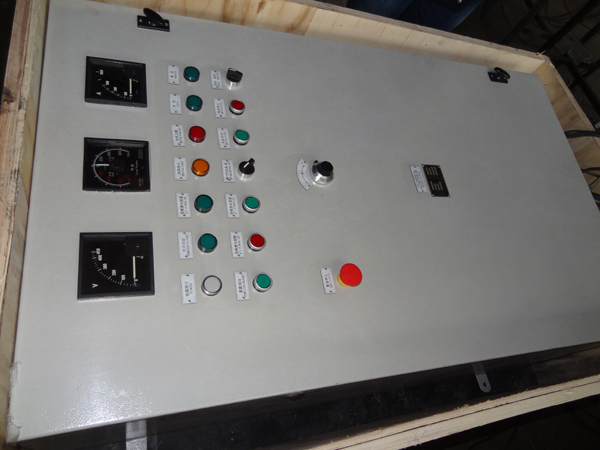

Tunnel Thruster Motor Starter

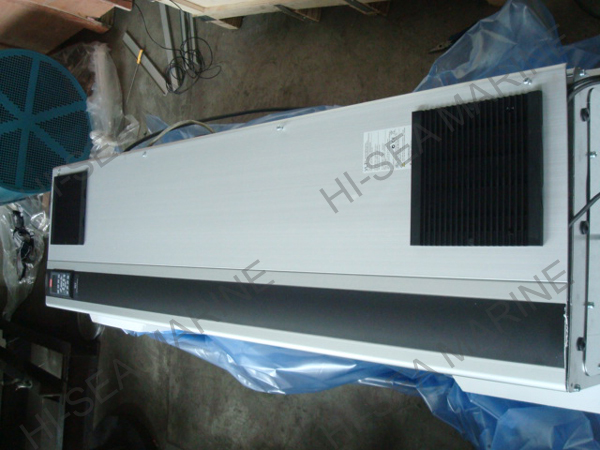

Tunnel Thruster Frequency Converter

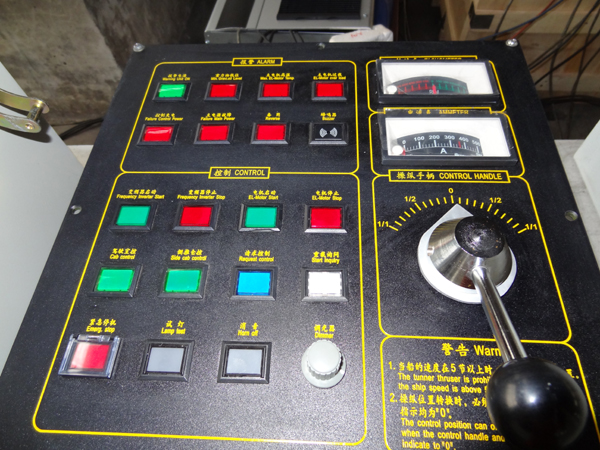

Tunnel Thruster Control Pannel

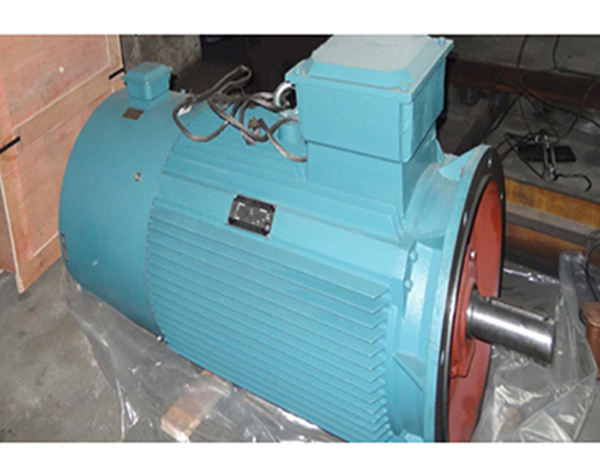

Tunnel Thruster Motor

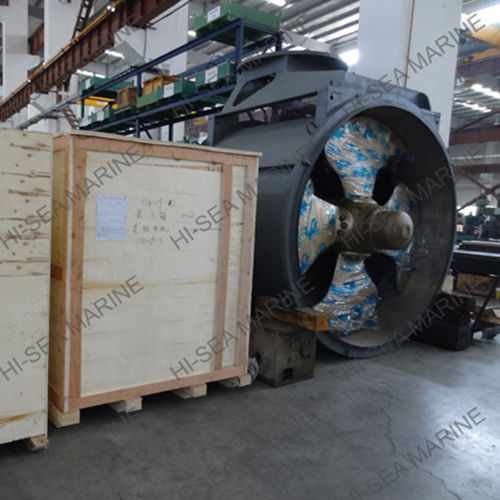

Electirc Tunnel Bow Thruster
