FPP Bow Tunnel Thruster

FPP Bow Tunnel Thruster

This product is FPP bow tunnel thruster. It is used to provide thrust for the vessels to move sideways. It is suitable for various kinds of vessels such as tugboat, ocean engineering vessel. With CCS, DNV, BV, ABS, etc. approval, it is driven by diesel engine, hydraulic motor or electric motor. It can be installed vertically or horizontally. We can design and manufacture the product according to customer¡¯s drawing or sample. Any question about our products, please feel free to contact us, we are very glad to serve you.

Features:

1. Propeller diameter: 500mm to 2400mm

2. Propeller type: fixed pitch propeller

3. Max. power: 63KW to 2000KW

4. Advantages: simplify the operation of vessel, increase the flexibility of vessel

5. Certification: ABS, BV, DNV, CCS, NK, KR, GL, RINA, etc.

FPP Bow Tunnel Thruster

Specification:

Model

TT500

TT600

TT700

TT800

TT900

TT1000

TT1100

TT1300

TT1480

TT1650

TT2000

TT2400

Max Input Power (KW)

63/72

90/105

135/165

180/190

200/235

280/290

315/340

445/480

560/620

680/730

1050/900

1580/1720

Reduction Ratio

1.52

2.071

2.07

2.417

2.42

3.09

3.09

3.78

4.364

4.73

4.82

4.63

Max Input Torque (N.m)

600

900

900

1400

1400

2100

2100

3000

3800

4500

7250

15400

Max Input speed (r/min)

1450/1750

1450/1750

1450/1750

1450/1750

1450/1750

1450/1750

1450/1750

1450/1750

1450/1750

1450/1750

1450/1190

980/1190

Propeller Speed (r/min)

954/1151

700/845

700/845

600/724

600/724

600/724

469.1/566

384/463

332.3/401

307/370

301/247

211/257

Propeller Dia. (mm)

500

600

700

800

900

900

1100

1300

1480

1650

2000

2400

Picture displaying:

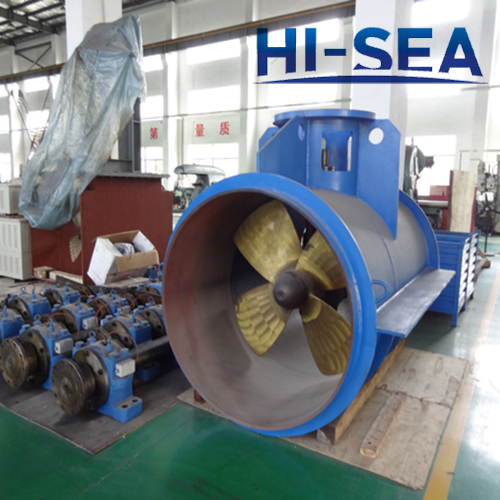

FPP Bow Tunnel Thruster

FPP Tunnel Thruster
